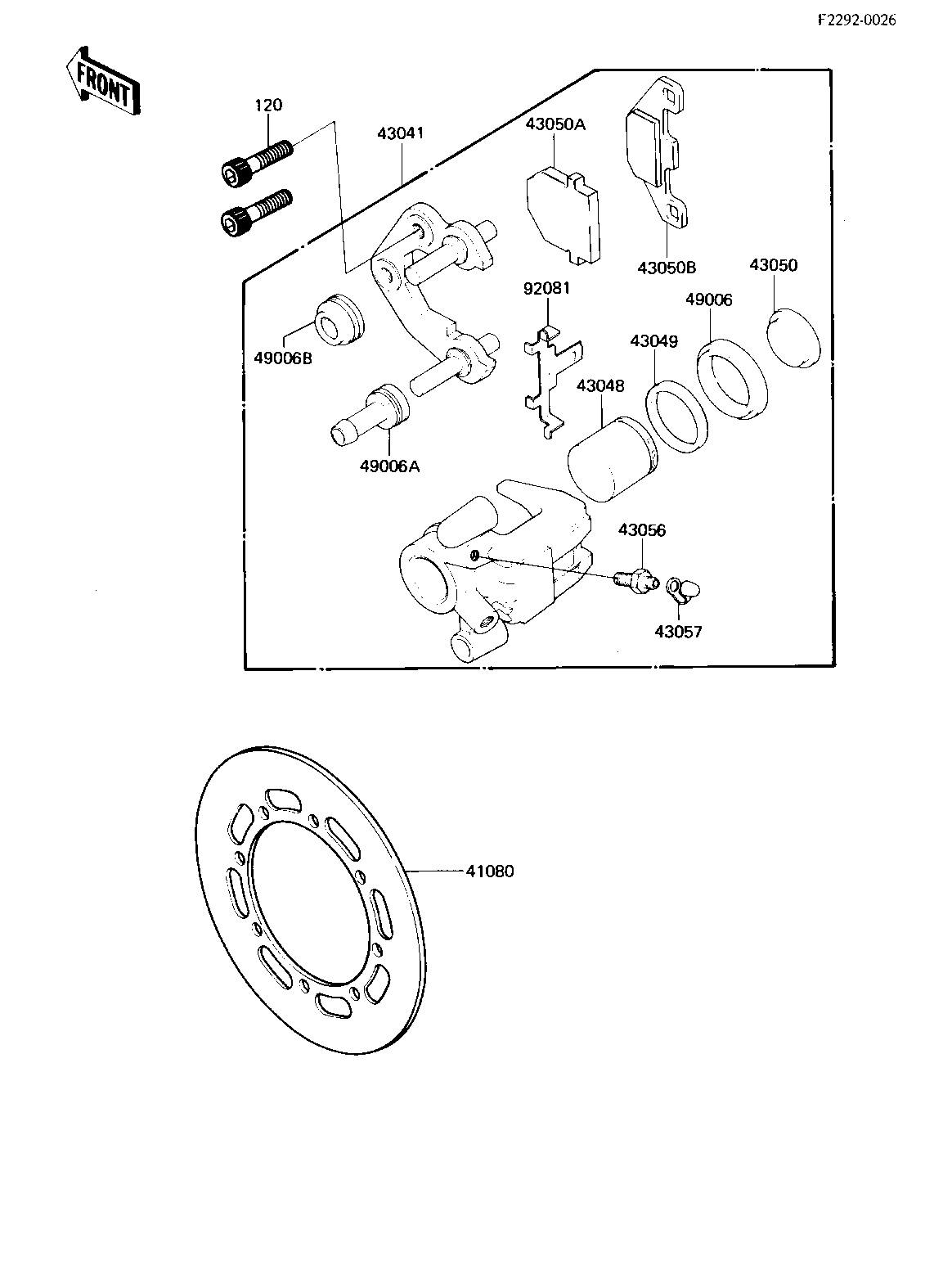

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FRONT BREAK 41080 41080-1044 1
CALIPER-ASSY,REAR BRA 43041 43041-1050 1
PISTON-CALIPER 43048 43048-1008 1
PACKING 43049 43049-1016 1
PAD-BRAKE 43050 43050-1040 1
PAD-BRAKE 43050A 43050-1043 1
PAD-BRAKE 43050B 43050-1044 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
BOOT,CALIPER 49006 49006-1053 1
BOOT,CALIPER 49006A 49006-1054 1
BOOT,CALIPER 49006B 49006-1055 1
SPRING 92081 92081-1341 1
BOLT-SOCKET,8X20 120 120P0820 2
