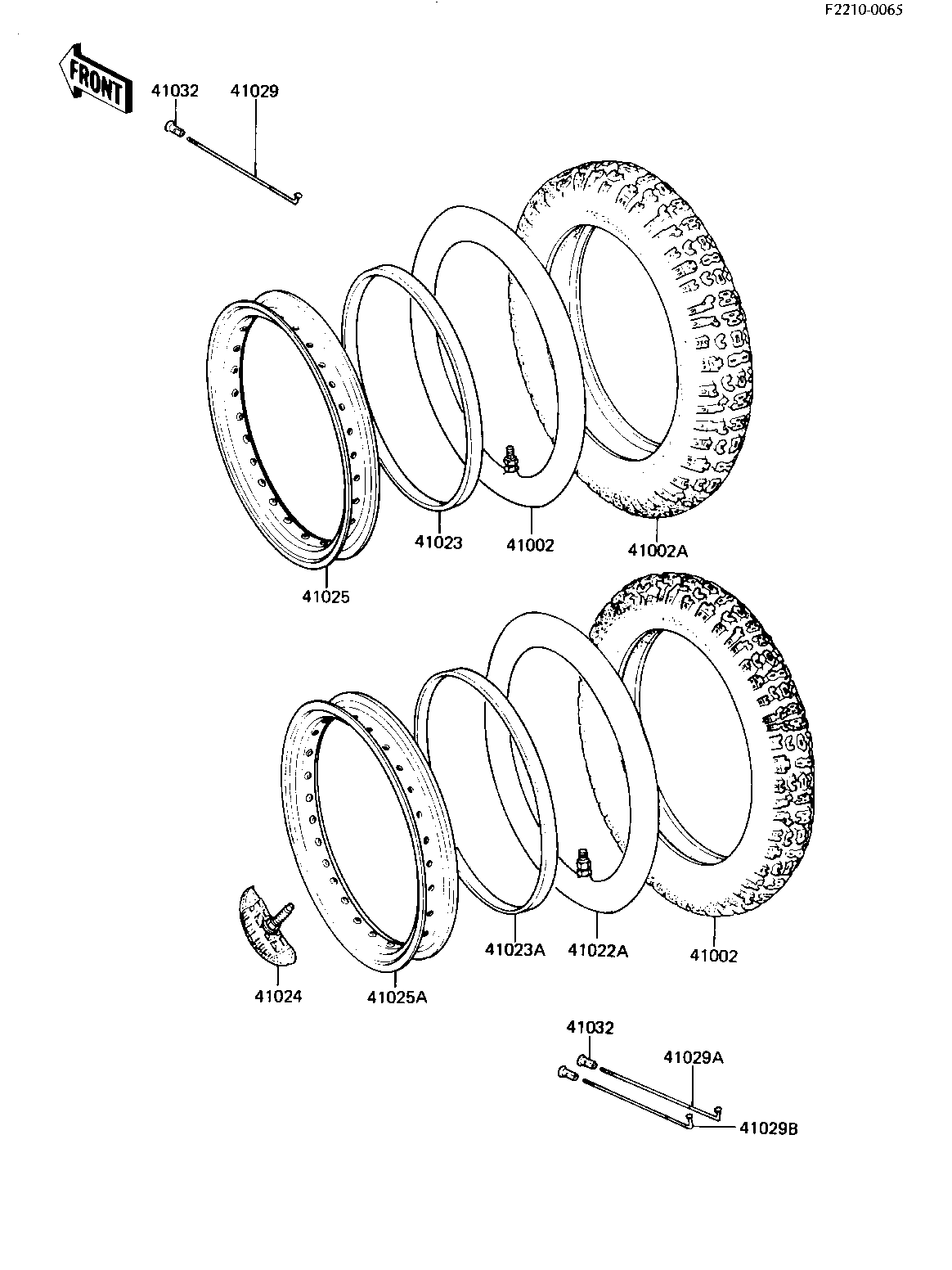

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 510-18 M22 R 41002 41002-1183 1
TIRE 300-21 M23 F 41002A 41002-1229 1
UNAVAILABLE IN PRICE BOOK 41022 41022-1023 1
TUBE 450/550-18 41022A K41000-101 1
BAND,RIM 41023 41023-1009 1
BAND,RIM 41023A 41023-1013 1
PROTECTORBEAD 41024 41024-009 1
RIM,FRONT,1.60-21 41025 41025-1051 1
RIM 41025A 41025-1052 1
SPOKE-INNER 41029 41029-1059 36
SPOKE-INNER,199MMX108 41029A 41029-1060 18
SPOKE-INNER,193MMX108 41029B 41029-1061 18
NIPPLE-SPOKE 41032 41032-1054 72
