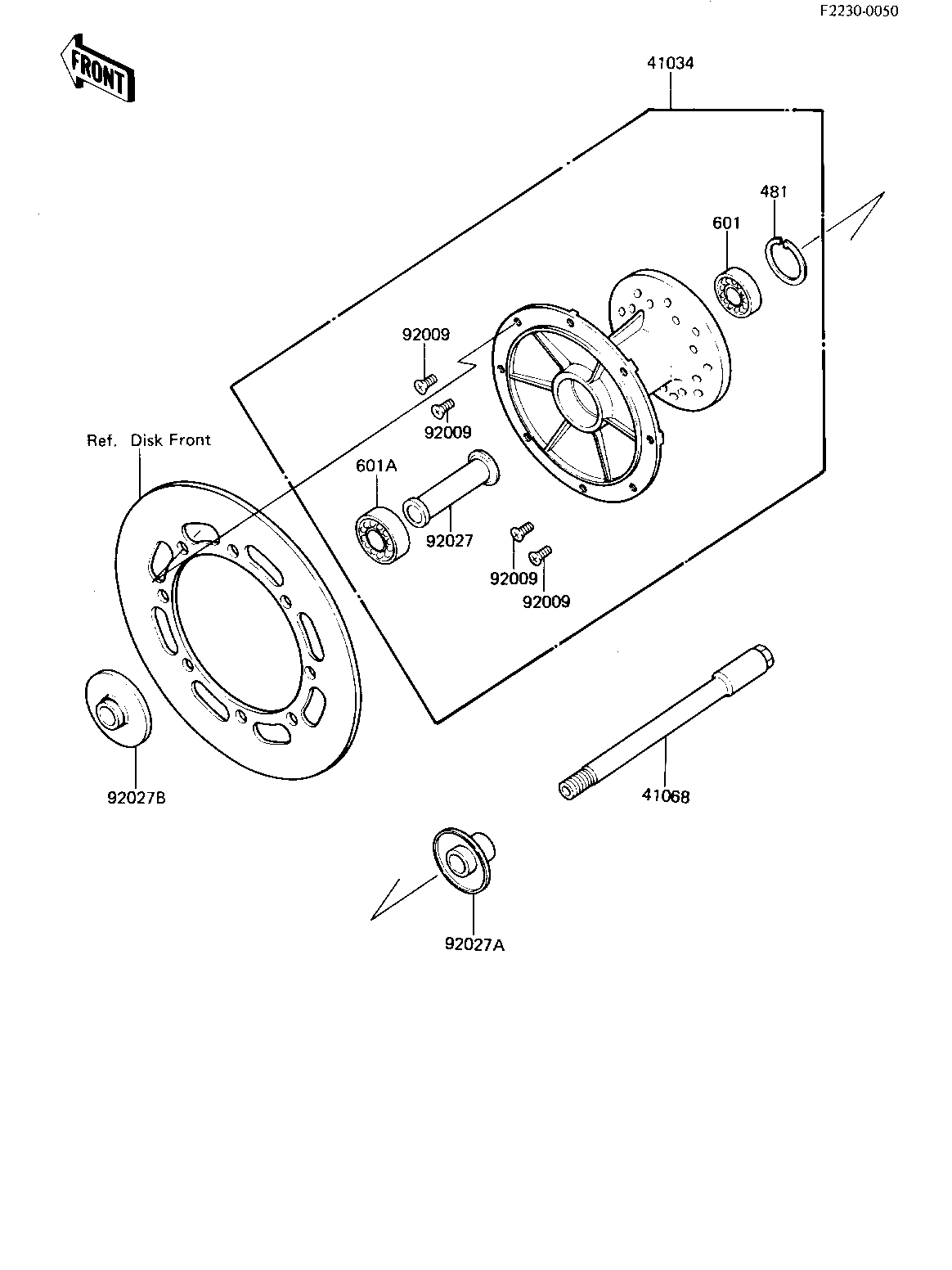

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 41034 41034-1052 1
AXLE,FRONT 41068 41068-1069 1
SCREW,6X10 92009 92009-1375 8
COLLAR 92027 92027-1374 1
COLLAR 92027A 92027-1375 1
COLLAR 92027B 92027-1377 1
CIRCLIP,35MM 481 481J3500 1
BEARING BALL #6202UC3 601 601B6202U 1
BEARING BALL #6203UC3/2A 601A 601B6203U`1 1
