155
155
39082
92002
92002
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92150
92160
92160

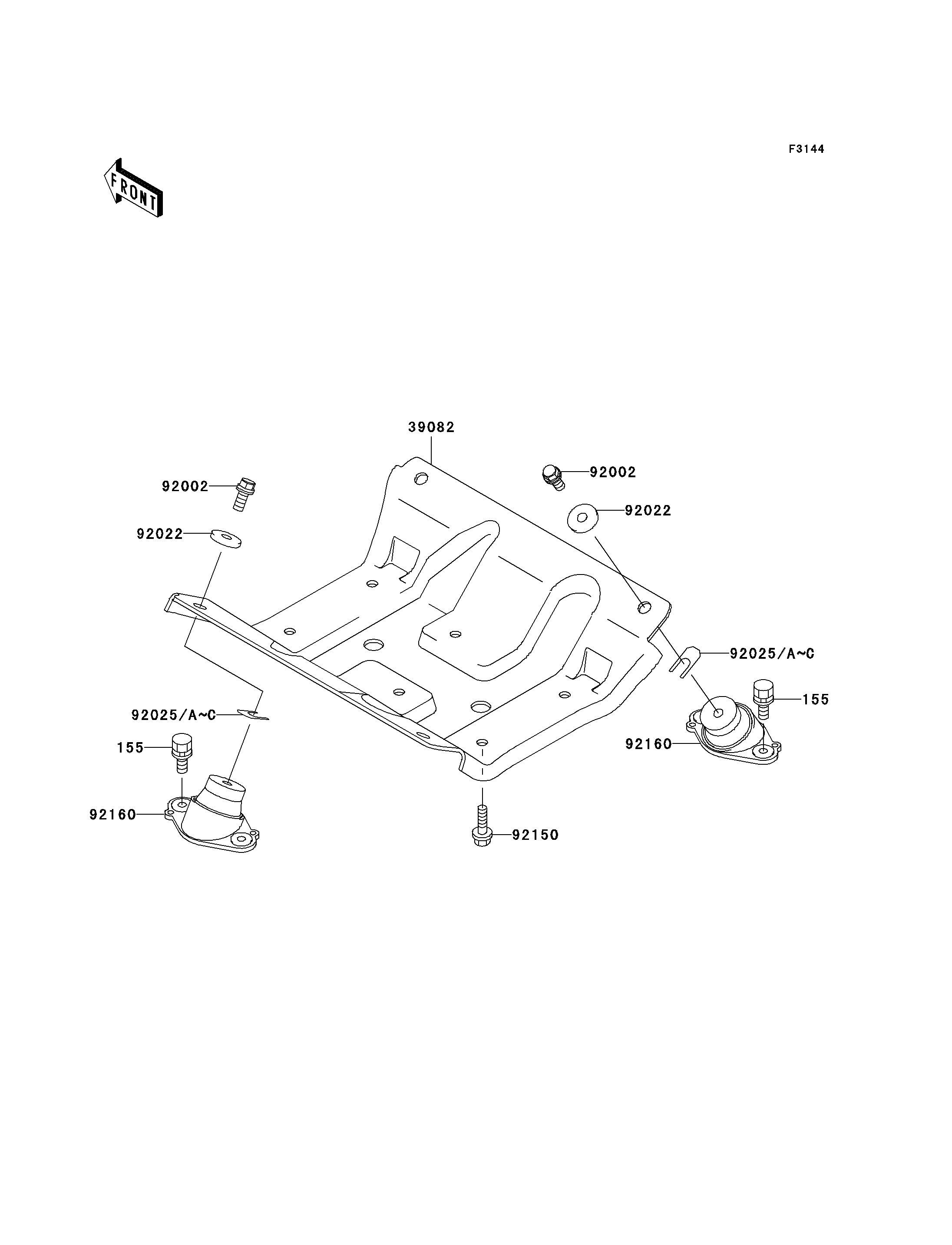

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X20 155 155R0820 8
MOUNT-ENGINE 39082 39082-3710 1
BOLT,10X25 92002 92002-3770 4
WASHER,32X10.5X4 92022 92022-3023 4
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
BOLT,10X25 92150 92150-3818 6
DAMPER,ENGINE MOUNT 92160 92160-3838 4
