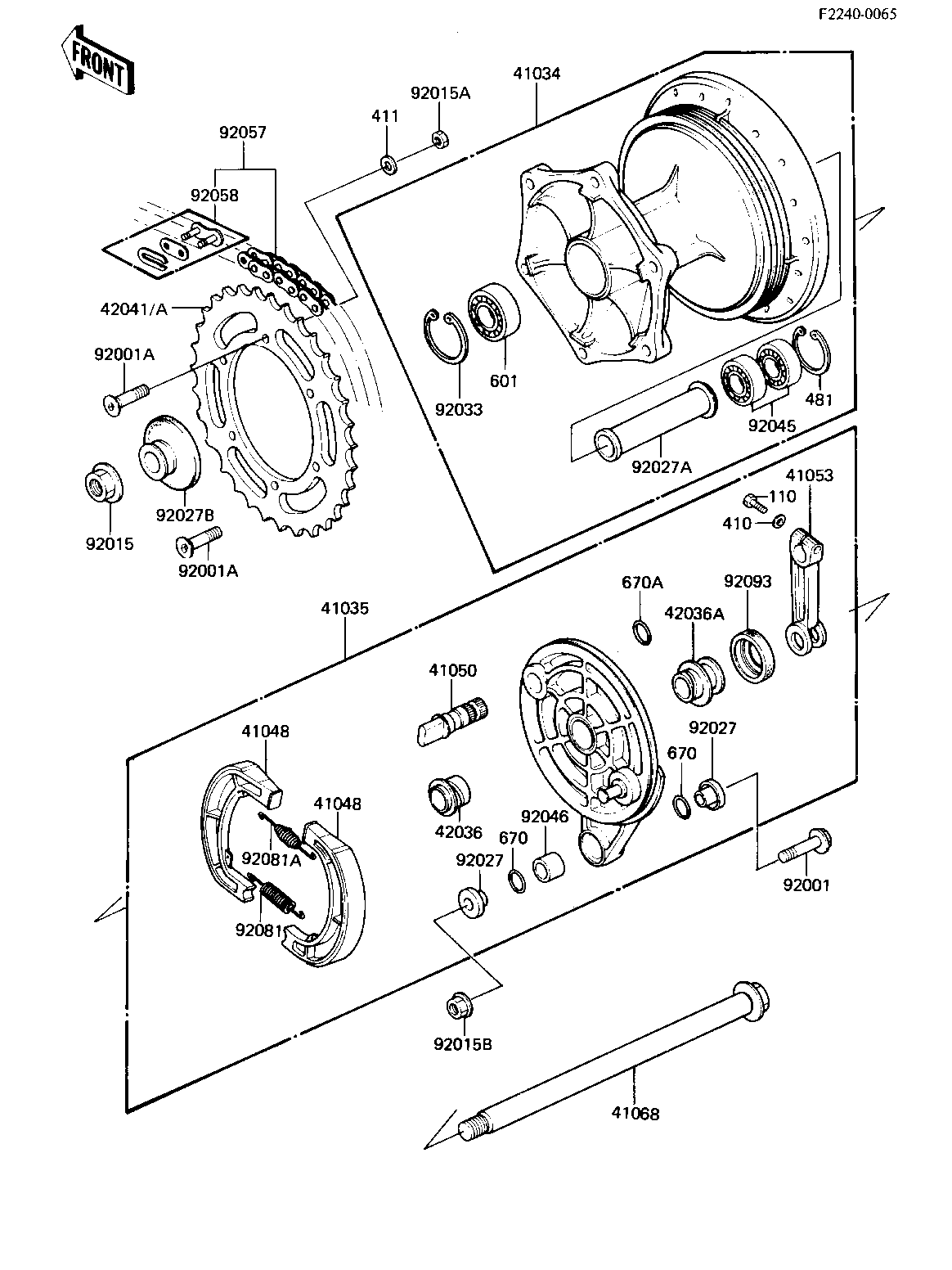

1982 KX250 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-5005 1
SHOE,BRAKE 41048 42019-010 2
CAM-BRAKE 41050 41050-1020 1
LEVER-BRAKE CAM 41053 41053-1026 1
AXLE,REAR 41068 41068-1068 1
SLEEVE 42036 42036-1052 1
SLEEVE 42036A 42036-1053 1
SPROCKET-HUB,50T,AL 42041 42041-1255 1 (OPTION)
SPROCKET-HUB,48T 42041A 42041-1103 1
BOLT,HEX HEAD,8X36 92001 92001-1041 1
BOLT 92001A 92001-1521 6
NUT,16M/M 92015 92015-1015 1
NUT,8MM 92015A 92015-1134 6
NUT-8MM 92015B 92015-1143 1
COLLAR 92027 92027-1040 2
COLLAR 92027A 92027-1384 1
COLLAR 92027B 92027-1385 1
RING, SNAP,43.5M/M 92033 92033-1040 1
BEARING-BALL,#6003UC3 92045 601B6003U 2
BEARING,NEEDLE 92046 92046-1009 1
CHAIN,DRIVE,DID520DSX 92057 92057-1317 1
JOINT,DRIVE CHAIN 92058 92058-1013 1
SPRING,BRAKE SHOE 92081 92081-1766 1
SPRING,BRAKE SHOE 92081A 92081-1550 1
OIL SEAL 92093 92093-1004 1
BOLT-UPSET 110 112G0622 1
WASHER PLAIN 6MM 410 410B0600 1
WASHER PLAIN 8MM 411 411B0800 6
CIRCLIP,35MM 481 481J3500 1
BEARING BALL 601 601B6203U 1
"O" RING 670 670B2011 2
"O" RING,15MM 670A 670B2015 1
