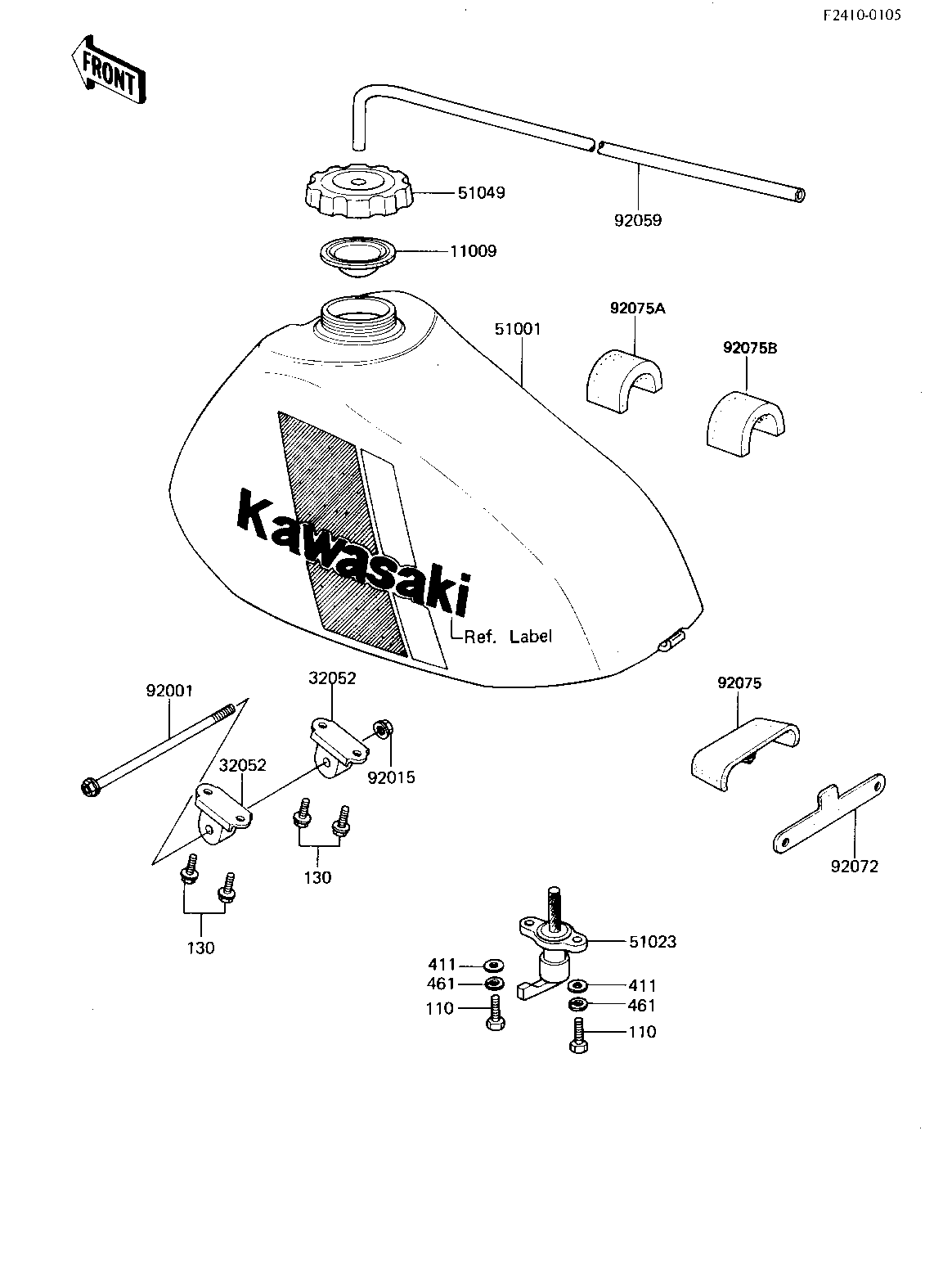

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK 11009 11009-1452 1
BRACKET-TANK 32052 32052-1104 2
TANK-FUEL,L.GREEN 51001 51001-5178-6W 1
TAP-ASSY-FUEL 51023 51023-1115 1
CAP-TANK,FUEL 51049 51049-1006 1
BOLT 92001 92001-1501 1
NUT-6MM 92015 92015-1078 1
TUBE,5X5.6X280 92059 92059-1109 1
BAND,FUEL TANK 92072 92072-075 1
DAMPER 92075 92075-1355 1
DAMPER 92075A 92075-1382 1
DAMPER,FUEL TANK 92075B 92075-1397 1
BOLT-UPSET,6X16 110 112G0616 2
BOLT,FLANGED,6X12 130 130G0612 4
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
