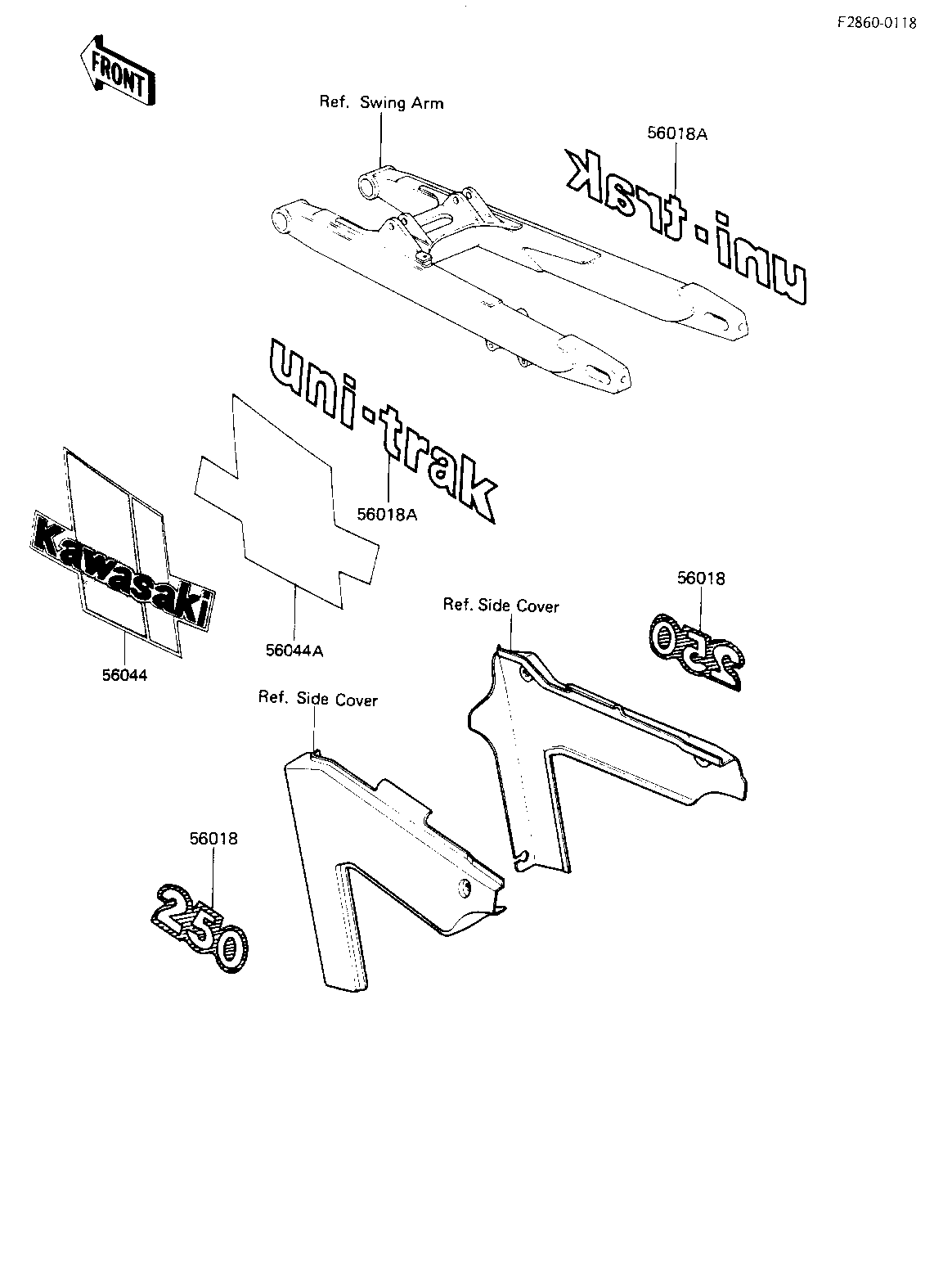

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER 56018 56018-1298 2
MARK,SWING ARM,UNI-TR 56018A 56018-1304 2
PATTERN,FUEL TANK,LH 56044 56044-1874 1
PATTERN,FUEL TANK,RH 56044A 56044-1875 1
