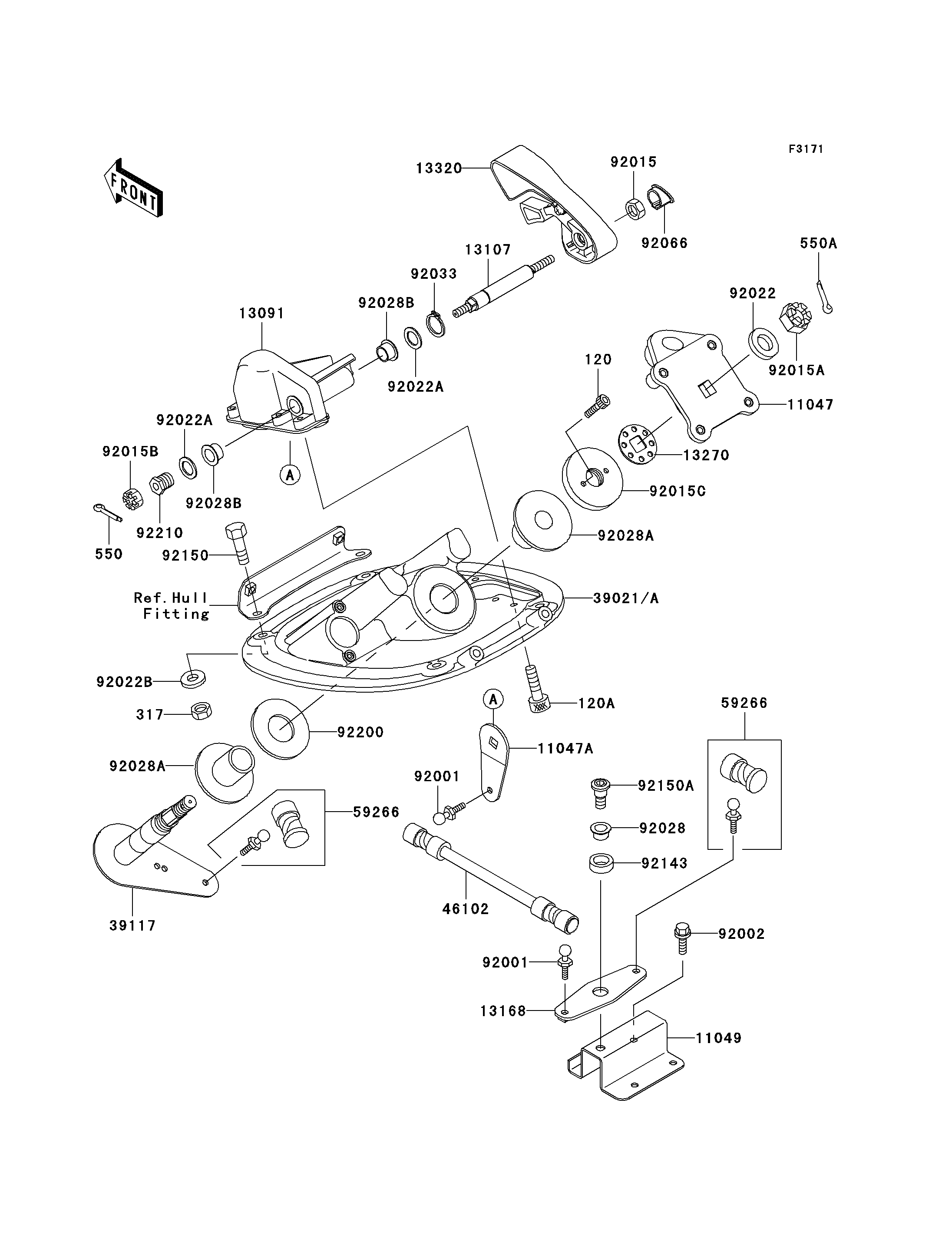

Parts Diagrams |
120
120A
317
550
550A
11047
11047A
11049
13091
13107
13168
13270
13320
39021
39117
46102
59266
59266
92001
92001
92002
92015
92015A
92015B
92015C
92022
92022A
92022A
92022B
92028
92028A
92028A
92028B
92028B
92033
92066
92143
92150
92150A
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,5X10 | 120 | 120R0510 | 2 | ||
BOLT-SOCKET,6X16,BLACK | 120A | 120S0616 | 4 | ||
NUT-HEX-SMALL | 317 | 317R0800 | 4 | ||
PIN-COTTER | 550 | 550S2020 | 1 | ||
PIN-COTTER,3X35 | 550A | 550S3035 | 1 | ||
BRACKET,HANDLE HOLDER | 11047 | 11047-3759 | 1 | ||
BRACKET,STEERING LEVER | 11047A | 11047-3790 | 1 | ||
BRACKET,REVERSE | 11049 | 11049-3762 | 1 | ||
HOLDER | 13091 | 13091-3809 | 1 | ||
SHAFT | 13107 | 13107-3751 | 1 | ||
LEVER,REVERSE | 13168 | 13168-3739 | 1 | ||
PLATE,STEERING NUT | 13270 | 13270-3808 | 1 | ||
LEVER-ASSY,REVERSE | 13320 | 13320-3716 | 1 | ||
BRACKET-HANDLE POLE | 39021 | 39021-3710 | 1 | ||
SHAFT-STRG | 39117 | 39117-3713 | 1 | ||
ROD | 46102 | 46102-3723 | 1 | ||
JOINT-BALL | 59266 | 59266-3707 | 2 | ||
BOLT,BALL,6MM | 92001 | 92001-3703 | 2 | ||
BOLT,6X20 | 92002 | 92002-3755 | 1 | ||
NUT,FLANGED,8MM | 92015 | 92015-3709 | 1 | ||
NUT,CASTLE,14MM | 92015A | 92015-3805 | 1 | ||
NUT,CASTLE,8MM | 92015B | 92015-3813 | 1 | ||
NUT,STEERING,20MM | 92015C | 92015-3854 | 1 | ||
WASHER,15X34X2.0 | 92022 | 92022-3738 | 1 | ||
WASHER,15.5X24X1.5 | 92022A | 92022-3739 | 2 | ||
WASHER,8.4X23X2.5 | 92022B | 92022-3744 | 4 | ||
BUSHING | 92028 | 92028-3740 | 1 | ||
BUSHING,STEERING | 92028A | 92028-3748 | 2 | ||
BUSHING | 92028B | 92028-3755 | 2 | ||
RING-SNAP,15MM | 92033 | 92033-3710 | 1 | ||
PLUG,REVERSE LEVER | 92066 | 92066-3761 | 1 | ||
COLLAR,16X24X8 | 92143 | 92143-3768 | 1 | ||
BOLT,FLANGED,8X30 | 92150 | 92150-3803 | 4 | ||
BOLT | 92150A | 92150-3827 | 1 | ||
WASHER,32.5X70X2 | 92200 | 92200-3718 | 1 | ||
NUT,8MM | 92210 | 92210-3703 | 1 |
