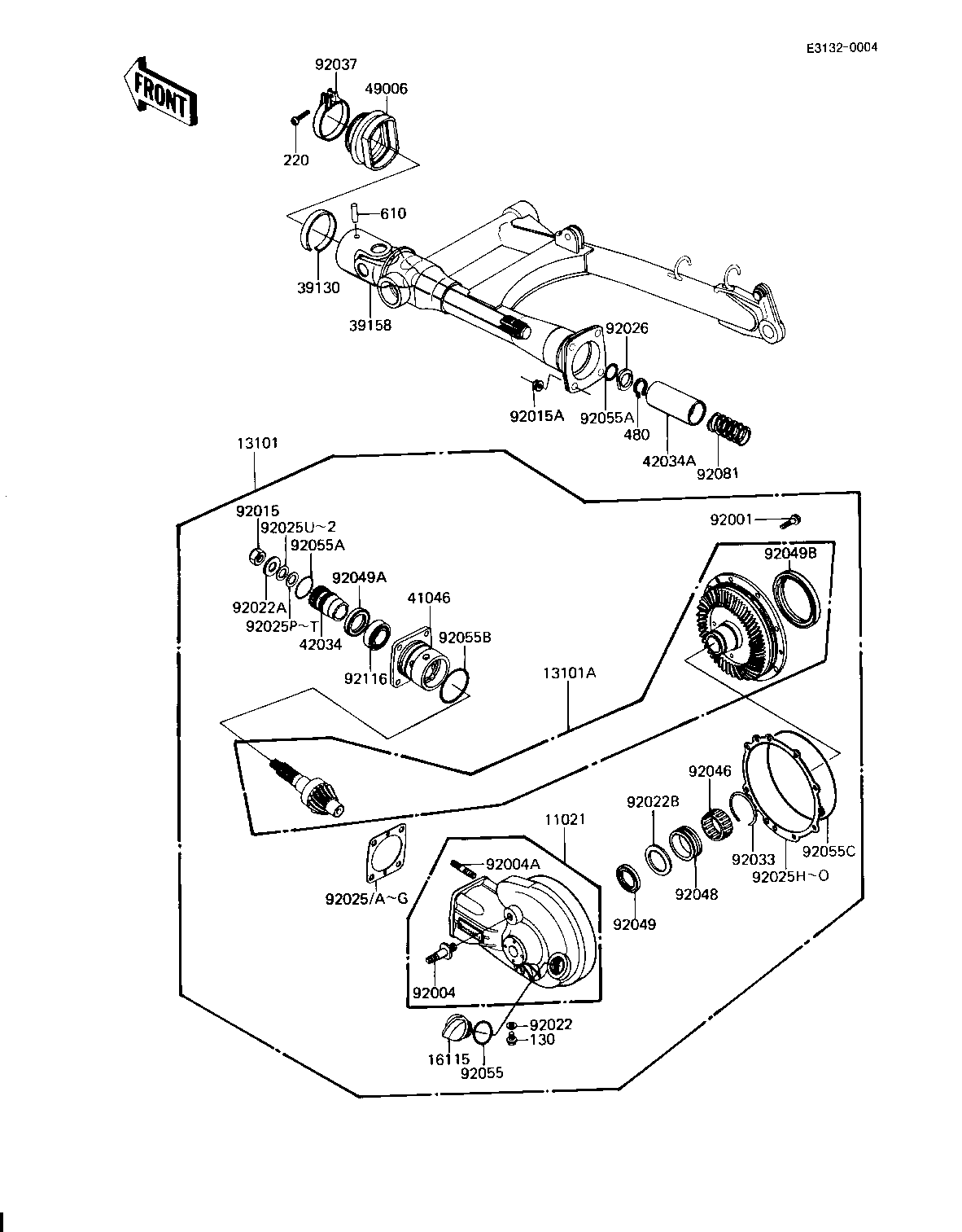

1982 Spectre - DRIVE SHAFT/FINAL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL GEAR 11021 11021-1014 1
GEAR-ASSY,FINAL,G.SIL 13101 13101-1022-F2 1
GEAR-ASSY,REAR BEVEL 13101A 13101-5032 1
CAP-OIL FILLER,F.BLAC 16115 16115-1011 1
SPRING,LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE 39158 39158-1061 1
HOUSING-BEARING,BLACK 41046 41046-1017 1
COUPLING,PROPELLER,LN 42034 42034-1023 1
COUPLING,PROPELLER SH 42034A 42034-1092 1
BOOT,PROPELLER SHAFT 49006 49006-1059 1
BOLT,8X28 92001 92001-1095 8
STUD 92004 92004-1020 1
STUD,10X30,BLACK 92004A 92004-1045 4
NUT,16M/M 92015 92015-1059 1
NUT,FLANGED,10MM,BLAC 92015A 92015-1180 4
WASHER 92022 92022-1086 1
WASHER 92022A 92022-1105 1
WASHER,40X52.5X1.4 92022B 92022-1237 1
SHIM,0.15T 92025 92025-1052 AR
SHIM,0.50T 92025A 92025-1053 AR
SHIM,0.60T 92025B 92025-1054 AR
SHIM,0.70T 92025C 92025-1055 AR
SHIM,0.80T 92025D 92025-1056 AR
SHIM,0.90T 92025E 92025-1057 AR
SHIM,1.00T 92025F 92025-1058 AR
SHIM,1.20T 92025G 92025-1059 AR
SHIM,0.15T 92025H 92025-1060 AR
SHIM,0.50T 92025I 92025-1061 AR
SHIM,0.60T 92025J 92025-1062 AR
SHIM,0.70T 92025K 92025-1063 AR
SHIM,0.80T 92025L 92025-1064 AR
SHIM,0.10T 92025M 92025-1065 AR
SHIM,1.00T 92025N 92025-1066 AR
SHIM,1.20T 92025O 92025-1067 AR
SHIM,T=1.30 92025P 92025-1214 AR
SHIM,T=1.32 92025Q 92025-1215 AR
SHIM,T=1.34 92025R 92025-1216 AR
SHIM,T=1.36 92025S 92025-1217 AR
SHIM,T=1.38 92025T 92025-1218 AR
SHIM,T=0.10 92025U 92025-1219 AR
SHIM,T=0.20 92025V 92025-1220 AR
SHIM,T=0.30 92025W 92025-1221 AR
SHIM,T=0.50 92025X 92025-1222 AR
SHIM,T=0.60 92025Y 92025-1223 AR
SHIM,T=0.70 92025Z 92025-1224 AR
SHIM,T=0.80 920250 92025-1225 AR
SHIM,T=0.90 920251 92025-1226 AR
SHIM,T=1.00 920252 92025-1227 AR
SPACER,PROPELLER SHAF 92026 92026-1085 1
RING,SNAP 92033 92033-1020 1
CLAMP,BOOT FITTING 92037 92037-1112 1
BRG,NDL,KT384620EG-B2 92046 92046-1037 1
RACE,ORT465321E01 92048 92048-1017 1
OIL SEAL 92049 92049-1025 1
OIL SEAL,SC32487 92049A 92049-1033 1
OIL SEAL,S-831009HS 92049B 92049-1034 2
"0" RING,31MM 92055 92055-049 1
"0" RING,I.D=32.7MM 92055A 92055-1037 2
"0" RING,I.D=57.6MM 92055B 92055-1038 1
"0" RING,I.D=150.4MM 92055C 92055-1039 1
SPRING,PROPELLER SHAF 92081 92081-1183 1
BRG,ROLLER,4T-32005 92116 92116-1004 1
BOLT,FLANGE 130 130B0812 1
SCREW-PAN-CROS 220 220B0430 1
CIRCLIP 26MM 480 480J2600 1
PIN-DOWEL,4X6 610 610A0406 1
