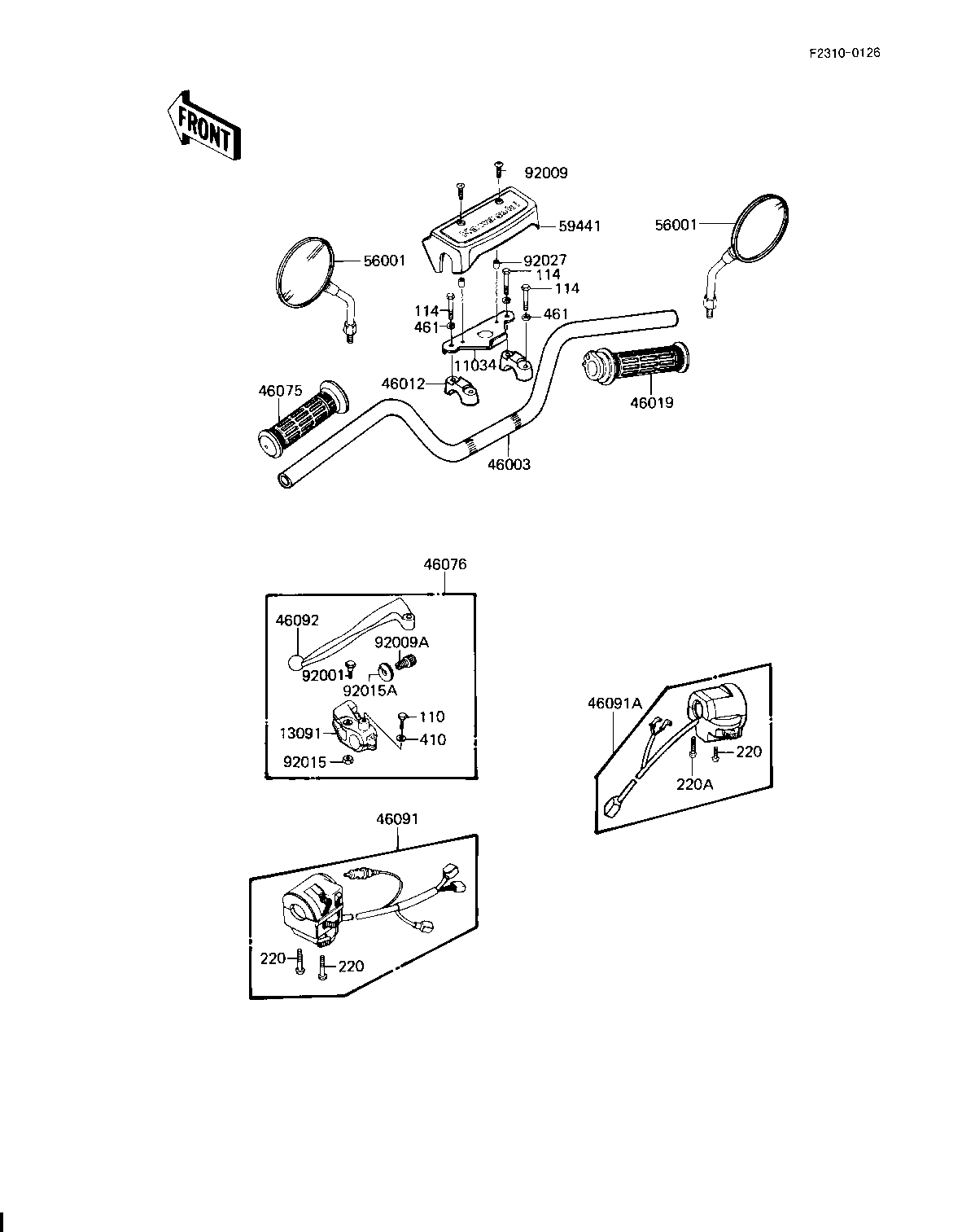

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE COVER 11034 11034-1899 1
HOLDER,CLUTCH LEVER 13091 13091-1046 1
HANDLEBAR 46003 46003-1096 1
HOLDER-HANDLE 46012 46012-1011 2
GRIP-ASSY,THROTTLE 46019 46019-1015 1
GRIP,LH 46075 46075-1022 1
LEVER-ASSY-GRIP,CLUTC 46076 46076-1026 1
HOUSING-ASSY-CNTRL,LH 46091 46091-1183 1
HOUSING-ASSY-CNTRL,RH 46091A 46091-1201 1
LEVER-GRIP,CLUTCH 46092 46092-1024 1
MIRROR-ASSY 56001 56001-1340 2
COVER-HANDLE 59441 59441-1003 1
BOLT,CLUTCH LEVER,BLA 92001 92001-1548 1
SCREW,4X16 92009 92009-1108 2
SCREW,CABLE ADJUST,8 92009A 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK 92015A 92015-1197 1
COLLAR,4.5X6.5X9.3 92027 92027-1313 2
BOLT,6X22,BLACK 110 110C0622 1
BOLT,SMALL UPSET 114 115G0835 4
SCREW-PAN-CROS 220 220B0535 3
SCREW-PAN-CROS 220A 220B0540 1
WASHER PLAIN 410 410F0600 1
WASHER SPRING 8MM 461 461F0800 4
