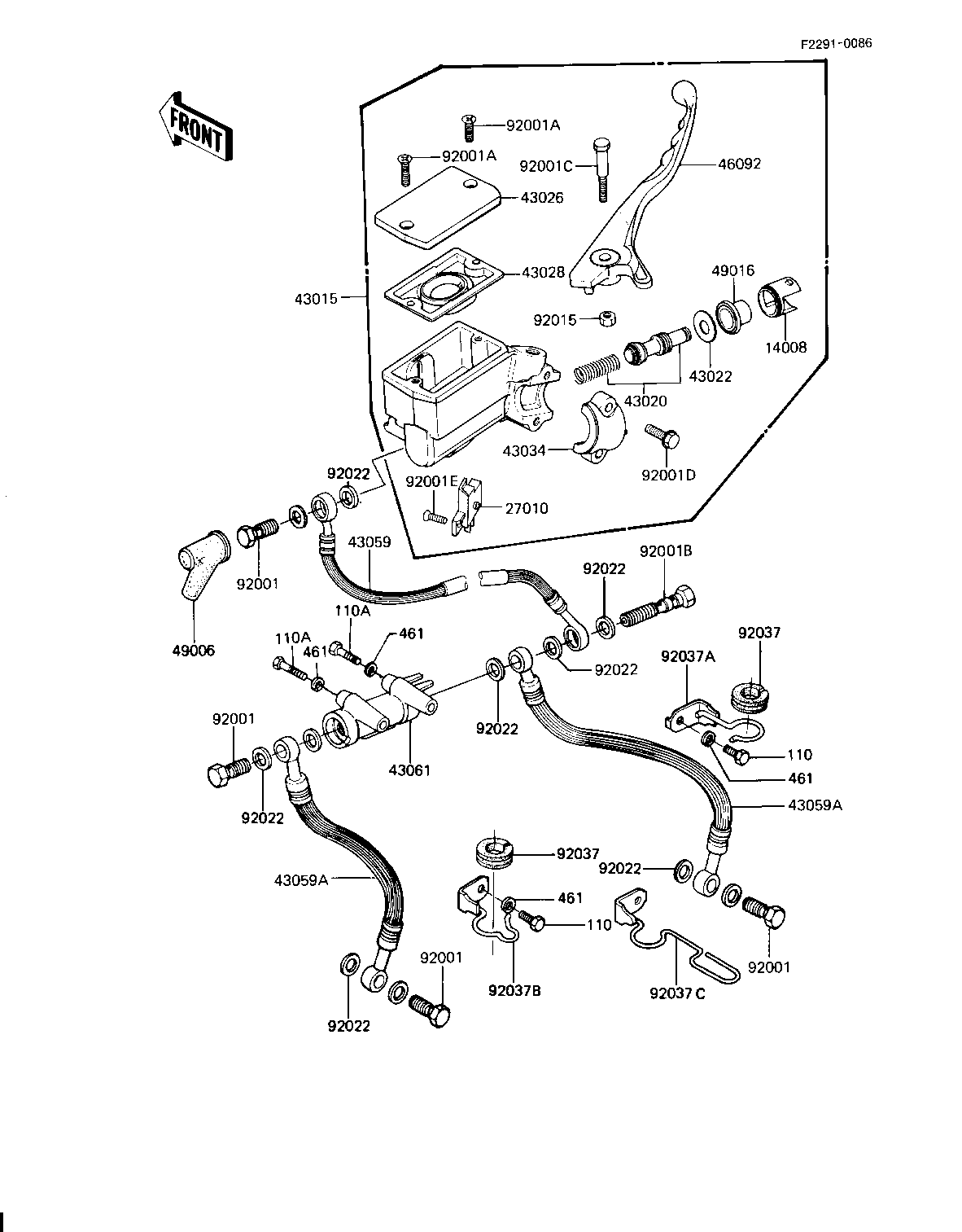

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LINER,PISTON | 14008 | 14008-1035 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-1056 | 1 | ||
| CYLINDER-ASSY-MASTER | 43015 | 43015-1089 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1079 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1009 | 1 | ||
| CAP-BRAKE,FRONT | 43026 | 43026-1017 | 1 | ||
| DIAPHRAGM,MASTER CYL1 | 43028 | 43028-1029 | 1 | ||
| HOLDER,MASTER CYLINDR | 43034 | 43034-1001 | 1 | ||
| HOSE-BRAKE,L=530 | 43059 | 43059-1178 | 1 | ||
| HOSE-BRAKE,FR,L=600 | 43059A | 43059-1179 | 2 | ||
| JOINT,FR BRAKE HOSE | 43061 | 43061-1002 | 1 | ||
| LEVER-GRIP,FRONT BRAK | 46092 | 46092-1027 | 1 | ||
| BOOT,DUST | 49006 | 49006-1067 | 1 | ||
| COVER-SEAL,BRK PISTON | 49016 | 49016-1041 | 1 | ||
| BOLT,OIL,L=23 | 92001 | 92002-1888 | 4 | ||
| SCREW,COUNTERSUNK HED | 92001A | 92001-1055 | 2 | ||
| BOLT | 92001B | 92002-1909 | 1 | ||
| BOLT,6X37.3,BLACK | 92001C | 92001-1512 | 1 | ||
| BOLT,W/WASHER,6X25,BL | 92001D | 92001-1513 | 2 | ||
| SCREW-COUNTERSUNK | 92001E | 92001-1532 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 11 | ||
| DAMPER RUBBER,CYL HSE | 92037 | 43064-006 | 2 | ||
| CLAMP | 92037A | 92037-1218 | 1 | ||
| CLAMP | 92037B | 92037-1232 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-UPSET,6X40 | 110A | 112G0640 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
| LINER,PISTON | |
| REF # | 14008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ASSY-MASTER | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER-BRAKE,PISTON | |
| REF # | 43022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BRAKE,FRONT | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,MASTER CYL1 | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,MASTER CYLINDR | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,L=530 | |
| REF # | 43059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR,L=600 | |
| REF # | 43059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| JOINT,FR BRAKE HOSE | |
| REF # | 43061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,FRONT BRAK | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,DUST | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,BRK PISTON | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,COUNTERSUNK HED | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X37.3,BLACK | |
| REF # | 92001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,W/WASHER,6X25,BL | |
| REF # | 92001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-COUNTERSUNK | |
| REF # | 92001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-OIL BOLT | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,CYL HSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X40 | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
