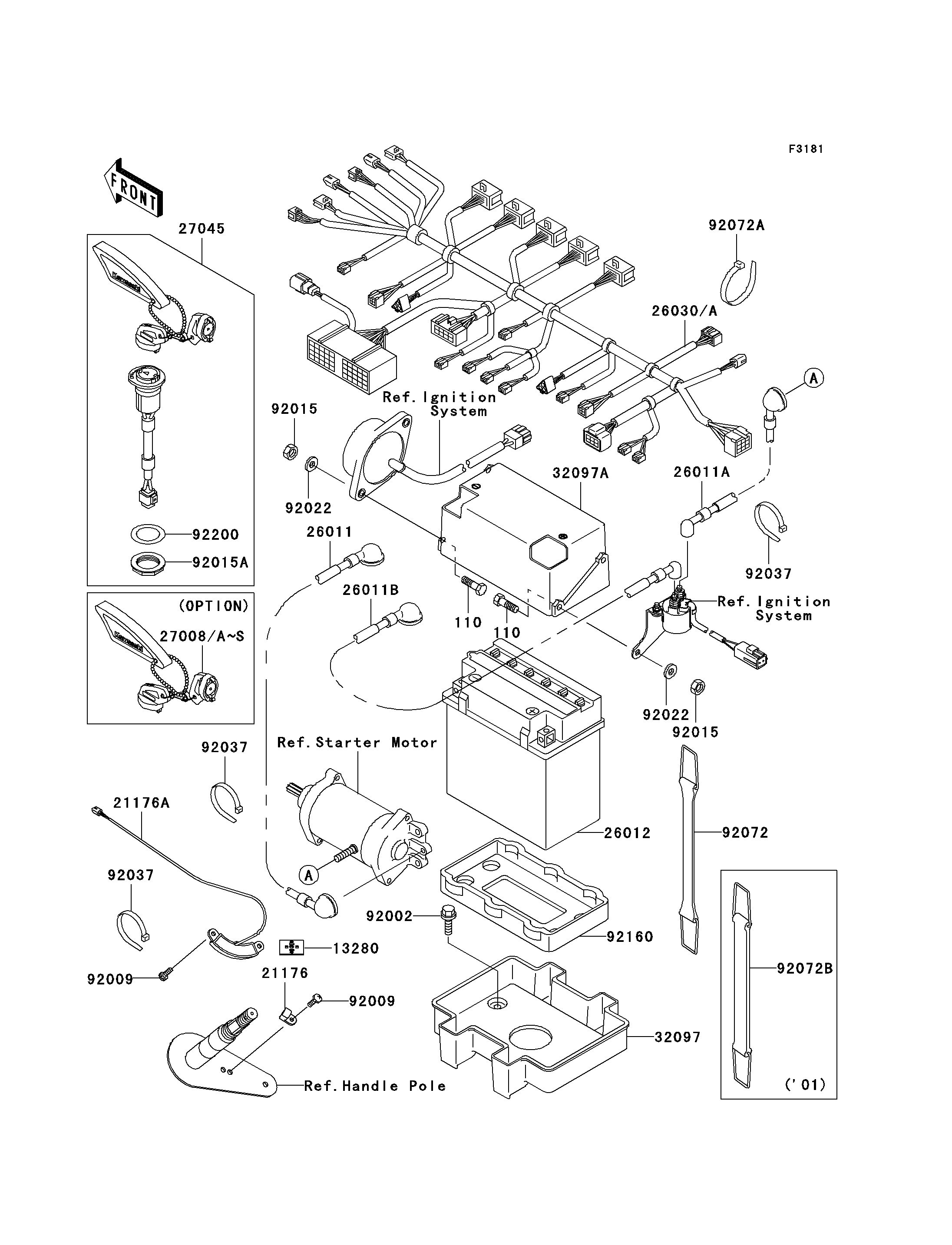

2001 1100 STX D.I. - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
21176
21176
21176A
21176A
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26030
26030
27008
27008
27008A
27008A
27008B
27008B
27008C
27008C
27008D
27008D
27008E
27008E
27008F
27008F
27008G
27008G
27008H
27008H
27008I
27008I
27008J
27008J
27008K
27008K
27008L
27008L
27008M
27008M
27008N
27008N
27008O
27008O
27008P
27008P
110
110
110
110
27008Q
27008Q
27008R
27008R
27008S
27008S
27045
27045
32097
32097
32097A
32097A
92002
92002
92009
92009
92009
92009
92015
92015
92015
92015
92015A
92015A
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92072A
92072A
92072B
92072B
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-3706 1
SENSOR,MAGNET 21176 21176-3746 1
SENSOR,HOLE IC 21176A 21176-3748 1
WIRE-LEAD,BATTERY(-)-STARTER 26011 26011-3850 1
WIRE-LEAD,RELAY-STARTER 26011A 26011-3881 1
WIRE-LEAD,BATTERY(+)-RELAY 26011B 26011-3882 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3728 1
HARNESS,MAIN 26030 26030-3745 1
KEY-LOCK,MAGNETIC SW,#3001 27008 27008-3745 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3002 27008A 27008-3746 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3003 27008B 27008-3747 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3004 27008C 27008-3748 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3005 27008D 27008-3749 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3006 27008E 27008-3750 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3007 27008F 27008-3751 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3008 27008G 27008-3752 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3009 27008H 27008-3753 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3010 27008I 27008-3754 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3011 27008J 27008-3755 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3012 27008K 27008-3756 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3013 27008L 27008-3757 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3014 27008M 27008-3758 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3015 27008N 27008-3759 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3016 27008O 27008-3760 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3017 27008P 27008-3761 1 (OPTION)
BOLT,6X20 110 110R0620 4
KEY-LOCK,MAGNETIC SW,#3018 27008Q 27008-3762 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3019 27008R 27008-3763 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3020 27008S 27008-3764 1 (OPTION)
SWITCH-ASSY,MAIN 27045 27045-3716 1
CASE-BATTERY 32097 32097-3703 1
CASE-BATTERY 32097A 32097-3708 1
BOLT,6X16 92002 92002-3728 4
SCREW,5X16 92009 92009-3868 3
NUT,6MM 92015 92015-3767 4
NUT 92015A 92015-3848 1
WASHER 92022 92022-567 4
CLAMP 92037 92037-1173 5
BAND,L=201 92072A 92072-3778 12
BAND,340X22 92072B 92072-3805 2
DAMPER 92160 92160-3929 1
WASHER 92200 92200-3736 1
