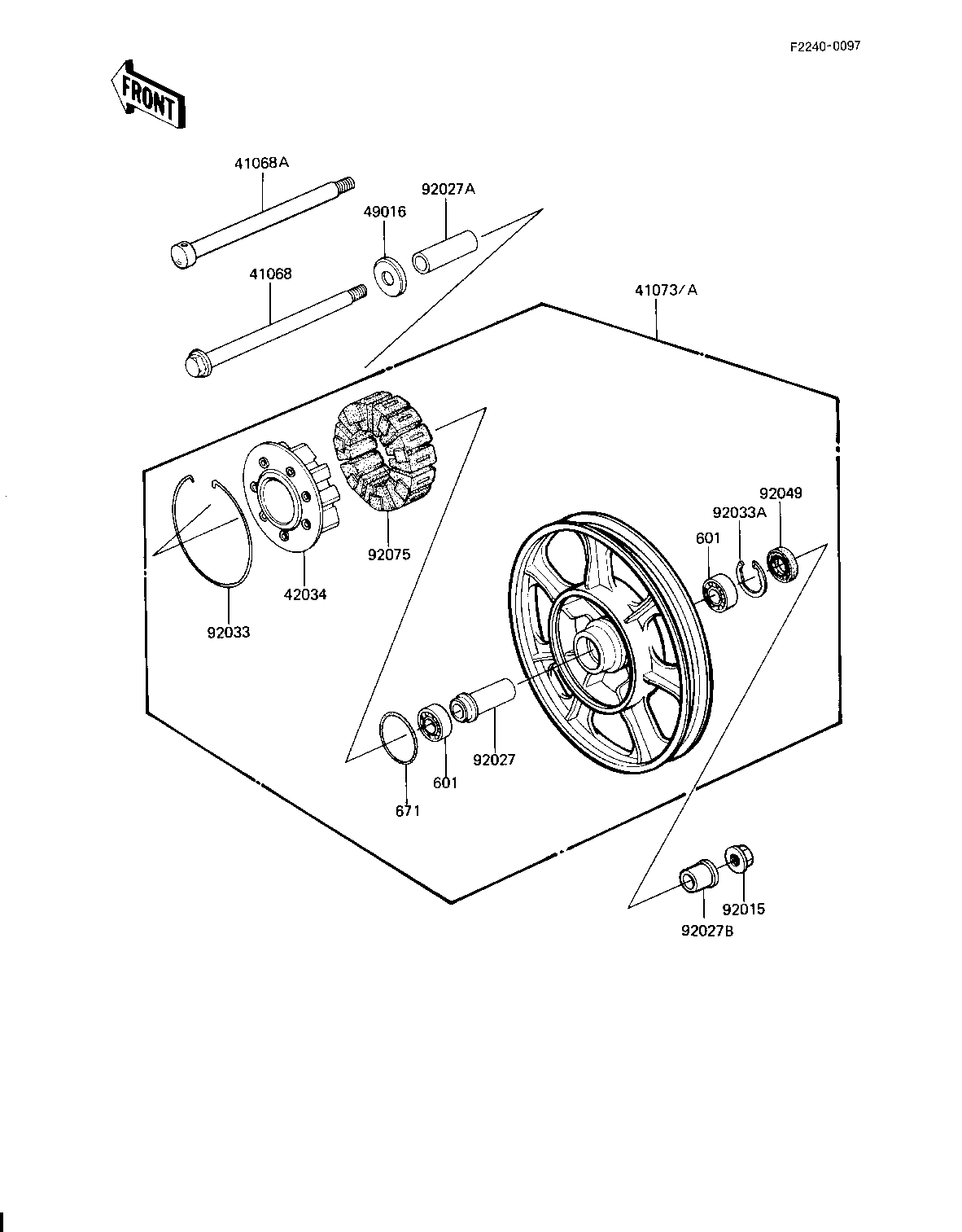

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR,L=286 41068 41068-1088 1
WHEEL-ASSY,RR,SOLID,G 41073 41073-1185-F6 1
COUPLING,REAR HUB 42034 42034-1011 1
COVER 49016 49016-1019 1
NUT,FLANGED,18MM 92015 92015-2186 1
COLLAR 92027 92027-1124 1
COLLAR 92027A 92027-1126 1
COLLAR,FR AXLE,L=27 92027B 92027-1318 1
RING,SNAP 92033 92033-1019 1
RING,SNAP,56.2M/M 92033A 92033-1043 1
SEAL-OIL 92049 92049-1061 1
DAMPER,REAR HUB,SHOCK 92075 92075-1121 1
BEARING,BALL,#6304ZZ 601 601B6304ZZ 2
"0" RING,80MM 671 671B2580 1
