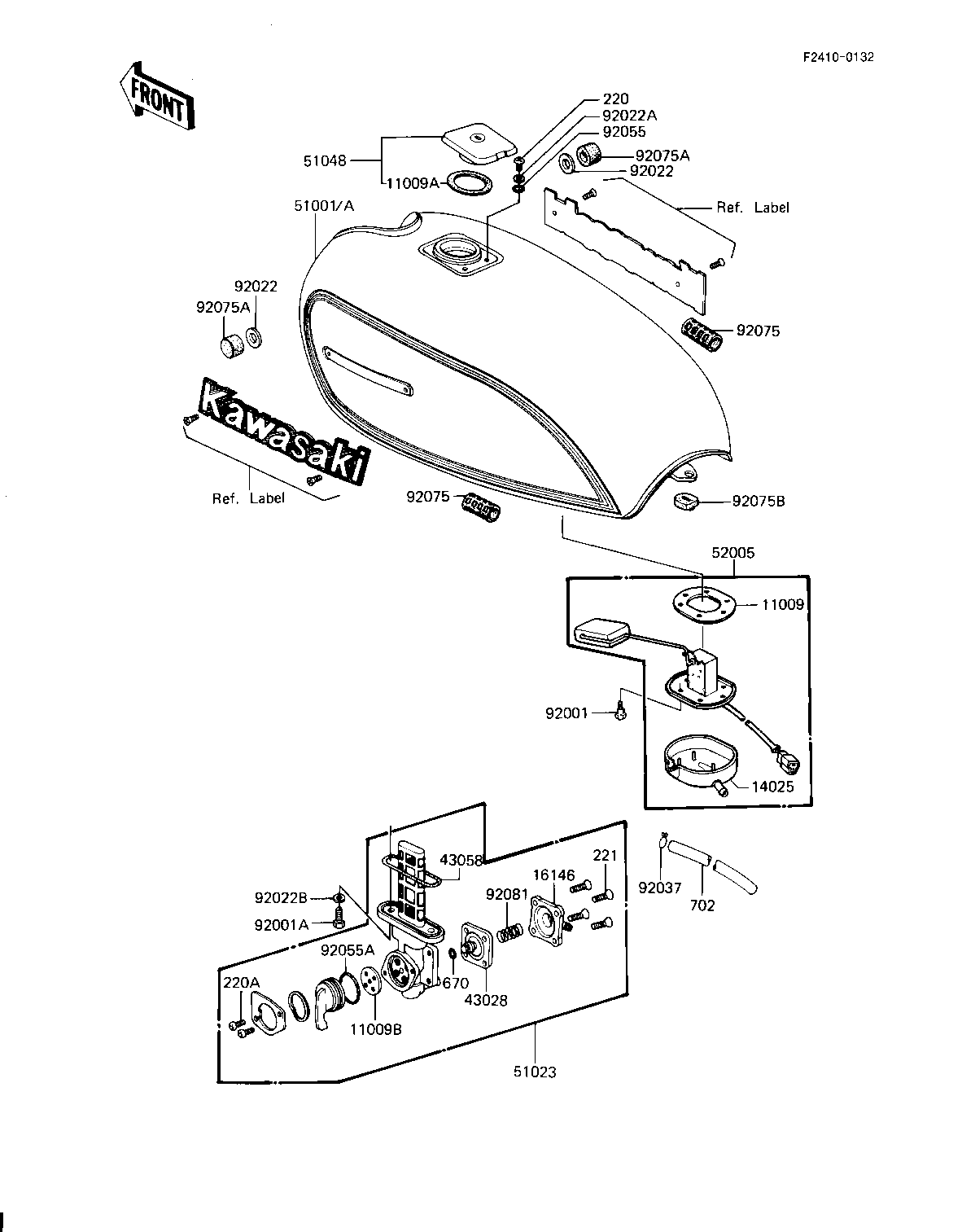

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11009 | 11009-1037 | 1 | ||
| GASKET,FUEL TANK CAP | 11009A | 11009-1051 | 1 | ||
| GASKET,TAP VALVE | 11009B | 11009-1194 | 1 | ||
| COVER,FUEL GAUGE | 14025 | 14024-1434 | 1 | ||
| COVER ASSY,TAP | 16146 | 16146-1005 | 1 | ||
| DIAPHRAGM ASSY,TAP | 43028 | 43028-1015 | 1 | ||
| "0" RING | 43058 | 51039-010 | 1 | ||
| TANK-FUEL,EBONY | 51001 | 51001-1084-F7 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1039 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1015 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1027 | 1 | ||
| BOLT,FUEL GAUGE FIT | 92001 | 92001-1069 | 6 | ||
| BOLT,6X20,FUEL TAP | 92001A | 92001-1091 | 2 | ||
| WASHER-PL-10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
| WASHER,PLAIN | 92022A | 92022-1038 | 2 | ||
| WASHER-PLAIN | 92022B | 92022-183 | 2 | ||
| CLAMP,CHAIN OILER | 92037 | 92037-147 | 1 | ||
| "0" RING | 92055 | 92055-1023 | 2 | ||
| "0" RING,TAP LEVER | 92055A | 92055-1027 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-084 | 2 | ||
| DAMPER RUBBER,FL TANK | 92075A | 92075-125 | 2 | ||
| DAMPER RUBBER FUEL TA | 92075B | 92075-295 | 1 | ||
| SPRING,TAP | 92081 | 92081-1171 | 1 | ||
| SCREW PAN HEAD 5X10 | 220 | 220B0510 | 2 | ||
| UNAVAILABLE IN PRICE BOOK | 220A | 22000308A | 2 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
| "O" RING,4MM | 670 | 670B1504 | 1 | ||
| TUBE,RUBBER,7X780 | 702 | 702A07780 | 1 |
