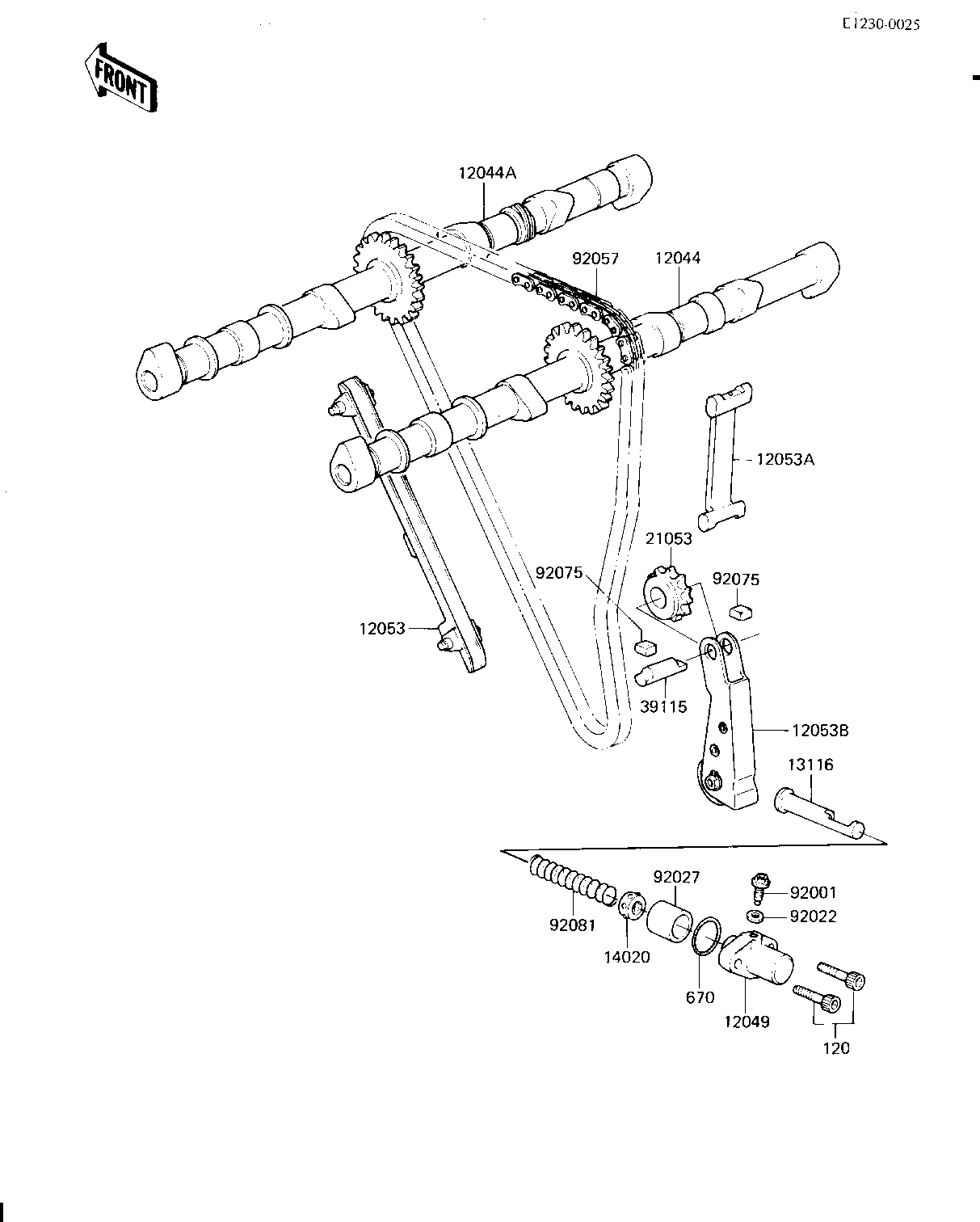

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT,VALVE,INTAKE 12044 12044-1012 1
CAMSHAFT,VALVE,EXHUST 12044A 12044-1013 1
TENSIONER,CAM CHAIN 12049 12049-1055 1
GUIDE,CHAIN,CAM,FRONT 12053 12053-1024 1
GUIDE,CHAIN,CAM,REAR 12053A 12053-1025 1
GUIDE,CHAIN,TENSIONER 12053B 12053-1028 1
ROD,PUSH 13116 13116-1015 1
RETAINER 14020 14020-1002 1
SPROCKET,CAM CHAIN 21053 21053-1004 1
SHAFT,GUIDE ROLLER 39115 12052-005 1
BELT,TENSIONER ADJUST 92001 92001-1155 1
WASHER OIL PUMP BANJO 92022 92022-077 1
COLLAR,TENSIONER 92027 92027-1273 1
CHAIN,CAMSHAFT 92057 92057-1018 1
RUBBER,GUIDE ROLLAR 92075 92075-232 2
SPRING,TENSIONER 92081 92081-1105 1
BOLT,6X25 120 120P0625 2
"O" RING,22MM 670 670B2022 1
