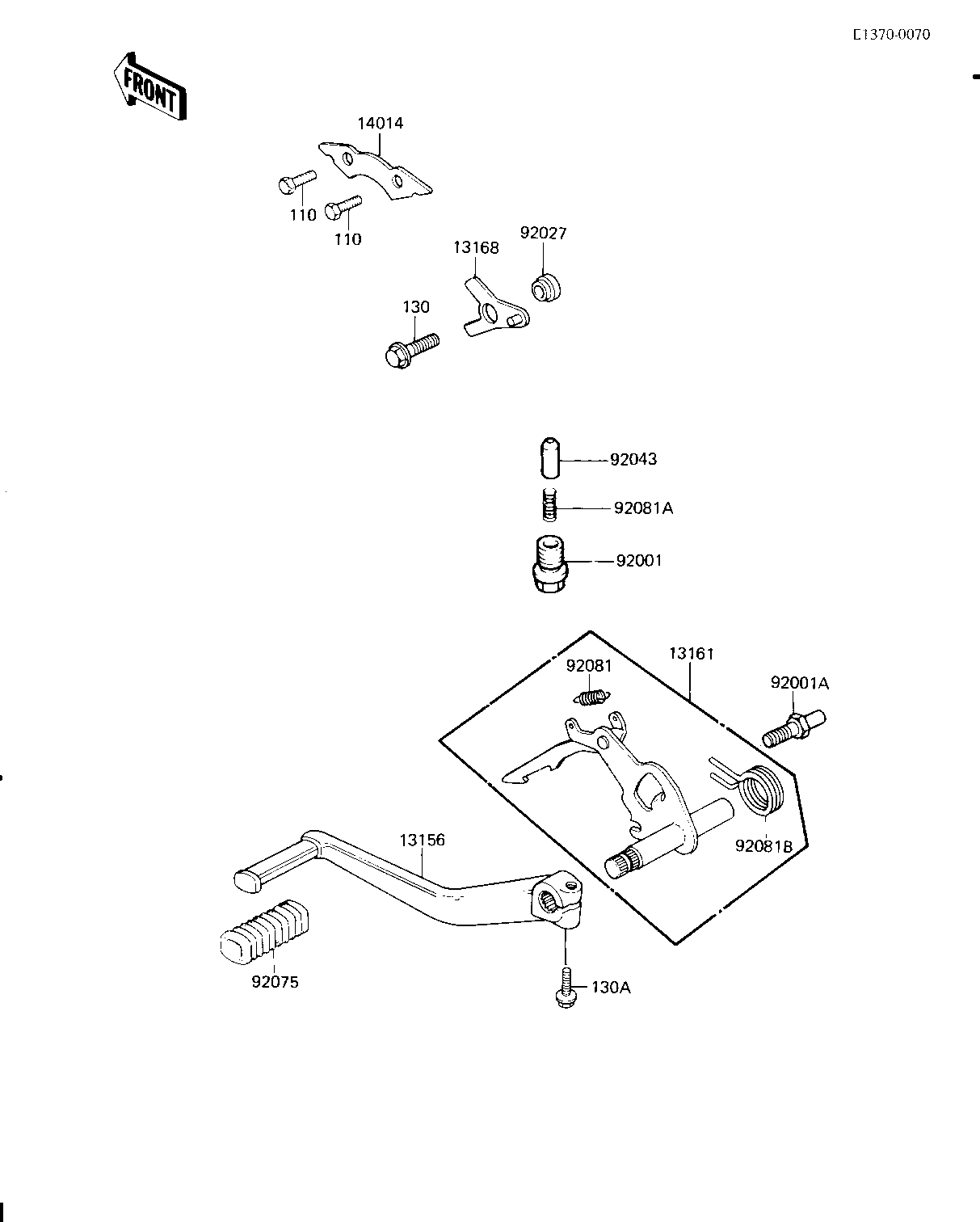

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL,CHANGE 13156 13156-1038 1
LEVER-COMP-CHANGE SHA 13161 13161-1114 1
LEVER,CHANGE 13168 13168-1034 1
PLATE,POSITION,DRUM 14014 14014-1008 1
BOLT,10MM 92001 92001-131 1
BOLT,RETURN SPRING 92001A 92001-1401 1
COLLAR,CHANGE LEVER 92027 92027-1139 1
PIN-NEUTRAL POSITION 92043 92043-076 1
DAMPER RUBR GEAR CHNG 92075 92075-1175 1
SPRING-CHANGE LEVER 92081 92081-076 1
SPRING 92081A 92081-112 1
SPRING,CHG PEDL RTRN 92081B 92083-028 1
BOLT-UPSET,6X16 110 112G0616 2
BOLT-FLANGED,8X25 130 130G0825 1
BOLT-FLANGED,6X25 130A 130P0625 1
