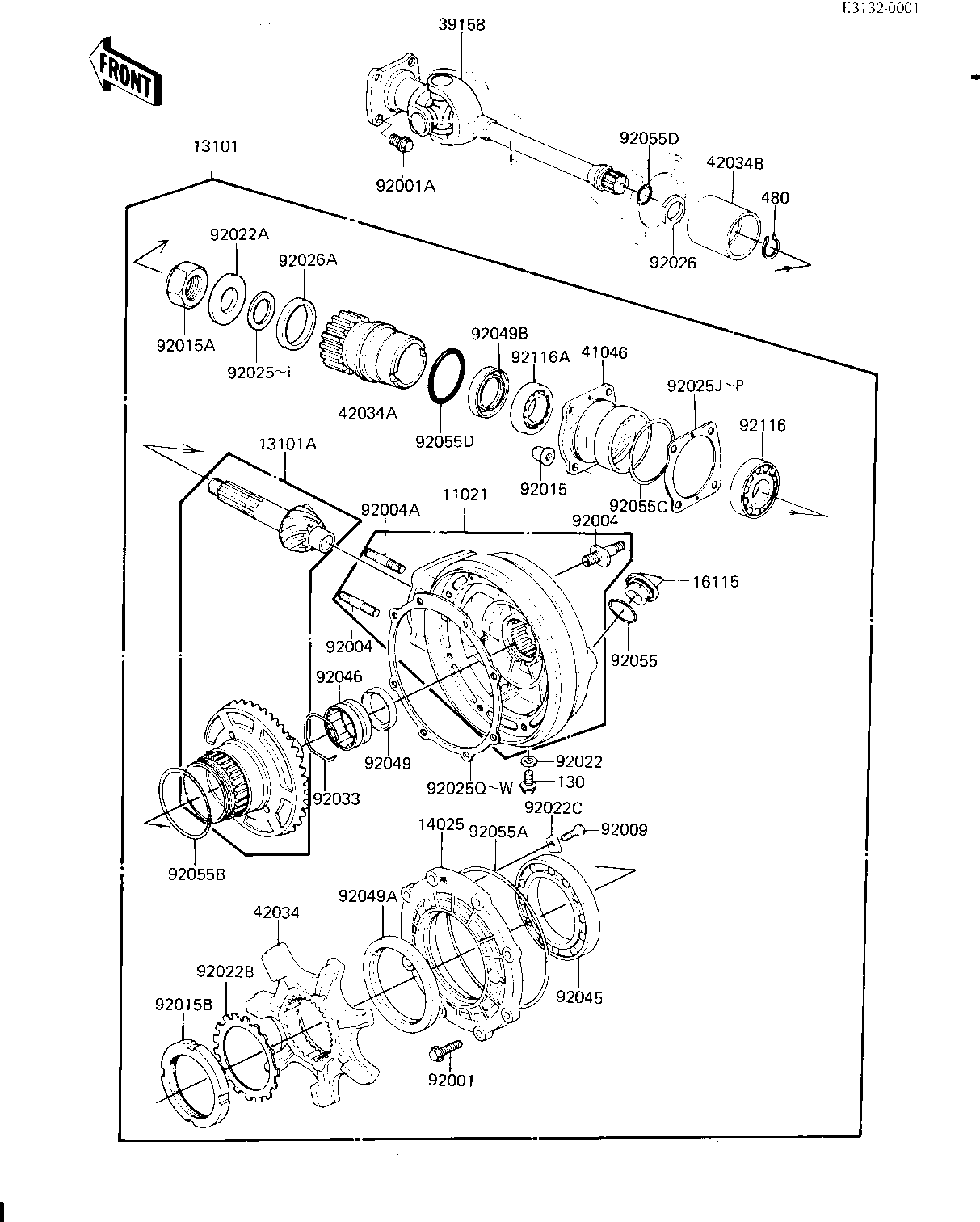

1982 KZ1300-A4 - DRIVE SHAFT/FINAL GEARS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE ASSY,FINAL GEAR | 11021 | 11021-1009 | 1 | ||
GEAR ASSY, FINAL | 13101 | 13101-1017 | 1 | ||
GEAR SET,FINAL BEVEL | 13101A | 13101-5026 | 1 | ||
COVER,FINAL GEAR CASE | 14025 | 14025-1066 | 1 | ||
CAP | 16115 | 16115-1003 | 1 | ||
SHAFT-ASSY-DRIVE | 39158 | 39158-1004 | 1 | ||
HOUSING,BEARING,FINAL | 41046 | 41046-1008 | 1 | ||
COUPLING,REAR HUB | 42034 | 42034-1007 | 1 | ||
COUPLING,PROPELLER,LN | 42034A | 42034-1023 | 1 | ||
COUPLING,PROPELLER SH | 42034B | 42034-1092 | 1 | ||
BOLT,8X28 | 92001 | 92001-1095 | 8 | ||
BOLT,12X15,COUPLING | 92001A | 92001-1139 | 4 | ||
STUD | 92004 | 92004-1020 | 1 | ||
STUD,10X31.5 | 92004A | 92004-1021 | 4 | ||
SCREW,COUNTERSNK,6X16 | 92009 | 92009-1041 | 3 | ||
NUT,10MM | 92015 | 92015-1415 | 4 | ||
NUT,16M/M | 92015A | 92015-1059 | 1 | ||
NUT,75M/M,RING GEAR | 92015B | 92015-1060 | 1 | ||
WASHER | 92022 | 92022-1086 | 1 | ||
WASHER | 92022A | 92022-1105 | 1 | ||
WASHER,75M/M,RING GER | 92022B | 92022-1106 | 1 | ||
WASHER,BEARING STOPPR | 92022C | 92022-1112 | 3 | ||
SHIM | 92025 | 92025-1027 | AR | ||
SHIM | 92025A | 92025-1028 | AR | ||
SHIM | 92025B | 92025-1029 | AR | ||
SHIM | 92025C | 92025-1030 | AR | ||
SHIM | 92025D | 92025-1031 | AR | ||
SHIM | 92025E | 92025-1032 | AR | ||
SHIM | 92025F | 92025-1033 | AR | ||
SHIM | 92025G | 92025-1034 | AR | ||
SHIM | 92025H | 92025-1035 | AR | ||
SHIM | 92025I | 92025-1036 | AR | ||
SHIM,73X0.6 | 92025J | 92025-1037 | AR | ||
SHIM,73X0.9 | 92025K | 92025-1038 | AR | ||
SHIM,73X1.2 | 92025L | 92025-1039 | AR | ||
SHIM,73X0.1 | 92025M | 92025-1040 | AR | ||
SHIM,73X0.15 | 92025N | 92025-1041 | AR | ||
SHIM,73X0.2 | 92025O | 92025-1042 | AR | ||
SHIM,73X0.3 | 92025P | 92025-1043 | AR | ||
SHIM,168X0.6 | 92025Q | 92025-1045 | AR | ||
SHIM,168X0.9 | 92025R | 92025-1046 | AR | ||
SHIM,168X1.2 | 92025S | 92025-1047 | AR | ||
SHIM,168X0.1 | 92025T | 92025-1048 | AR | ||
SHIM,168X0.15 | 92025U | 92025-1049 | AR | ||
SHIM,168X0.2 | 92025V | 92025-1050 | AR | ||
SHIM,168X0.3 | 92025W | 92025-1051 | AR | ||
SPACER,PROPELLER SHAF | 92026 | 92026-1085 | 1 | ||
SPACER,THRUST,26MM | 92026A | 92026-1102 | 1 | ||
RING,SNAP | 92033 | 92033-1020 | 1 | ||
BEARING,BALL,16016 | 92045 | 92045-1020 | 1 | ||
BEARING | 92046 | 92046-1020 | 1 | ||
OIL SEAL | 92049 | 92049-1025 | 1 | ||
OIL SEAL,S-901159HS | 92049A | 92049-1026 | 1 | ||
SEAL-OIL,SC32558 | 92049B | 92049-1082 | 1 | ||
"0" RING,31MM | 92055 | 92055-049 | 1 | ||
"0" RING,159MM | 92055A | 92055-1030 | 1 | ||
"0" RING,75MM | 92055B | 92055-1031 | 1 | ||
"0" RING,67MM | 92055C | 92055-1032 | 1 | ||
"0" RING,I.D=32.7MM | 92055D | 92055-1037 | 2 | ||
BEARING,R,4T30305C | 92116 | 92116-1002 | 1 | ||
BEARING | 92116A | 92116-1003 | 1 | ||
BOLT,FLANGE | 130 | 130B0812 | 1 | ||
CIRCLIP 26MM | 480 | 480J2600 | 1 |
