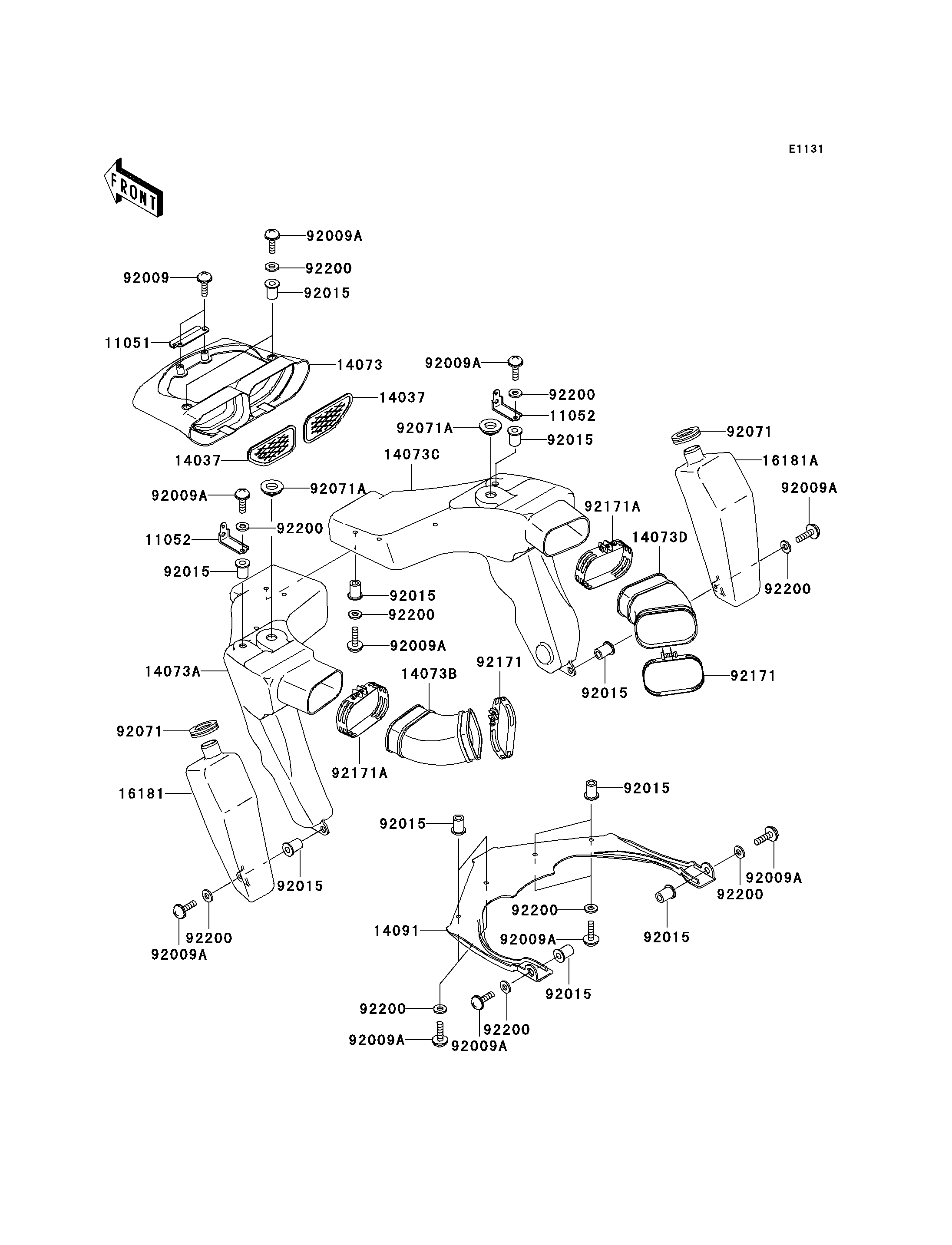

2001 Ninja® ZX™-12R - Air Duct

DOWNLOAD PDF
SELECT A NEW PART
11051
11052
11052
14037
14037
14073
14073A
14073B
14073C
14073D
14091
16181
16181A
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92071
92071
92071A
92071A
92171
92171
92171A
92171A
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-1863 1
BRACKET 11052 11052-1182 2
SCREEN,DUCT 14037 14037-1286 2
DUCT,M.F.C.GRAY 14073 14073-1745-3L 1
DUCT,LH 14073A 14073-1747 1
DUCT,LH 14073B 14073-1748 1
DUCT,RH 14073C 14073-1749 1
DUCT,RH 14073D 14073-1750 1
COVER 14091 14091-1158 1
TANK-RESONATOR 16181 16181-1093 1
TANK-RESONATOR 16181A 16181-1094 1
SCREW,TAPPING,5X14 92009 92009-1197 2
SCREW,5X16 92009A 92009-1909 14
NUT,WELL,5MM 92015 92015-1757 14
GROMMET,AIR FILTER 92071 92071-1013 2
GROMMET 92071A 92071-1222 2
CLAMP 92171 92171-1093 2
CLAMP 92171A 92171-1169 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 14
