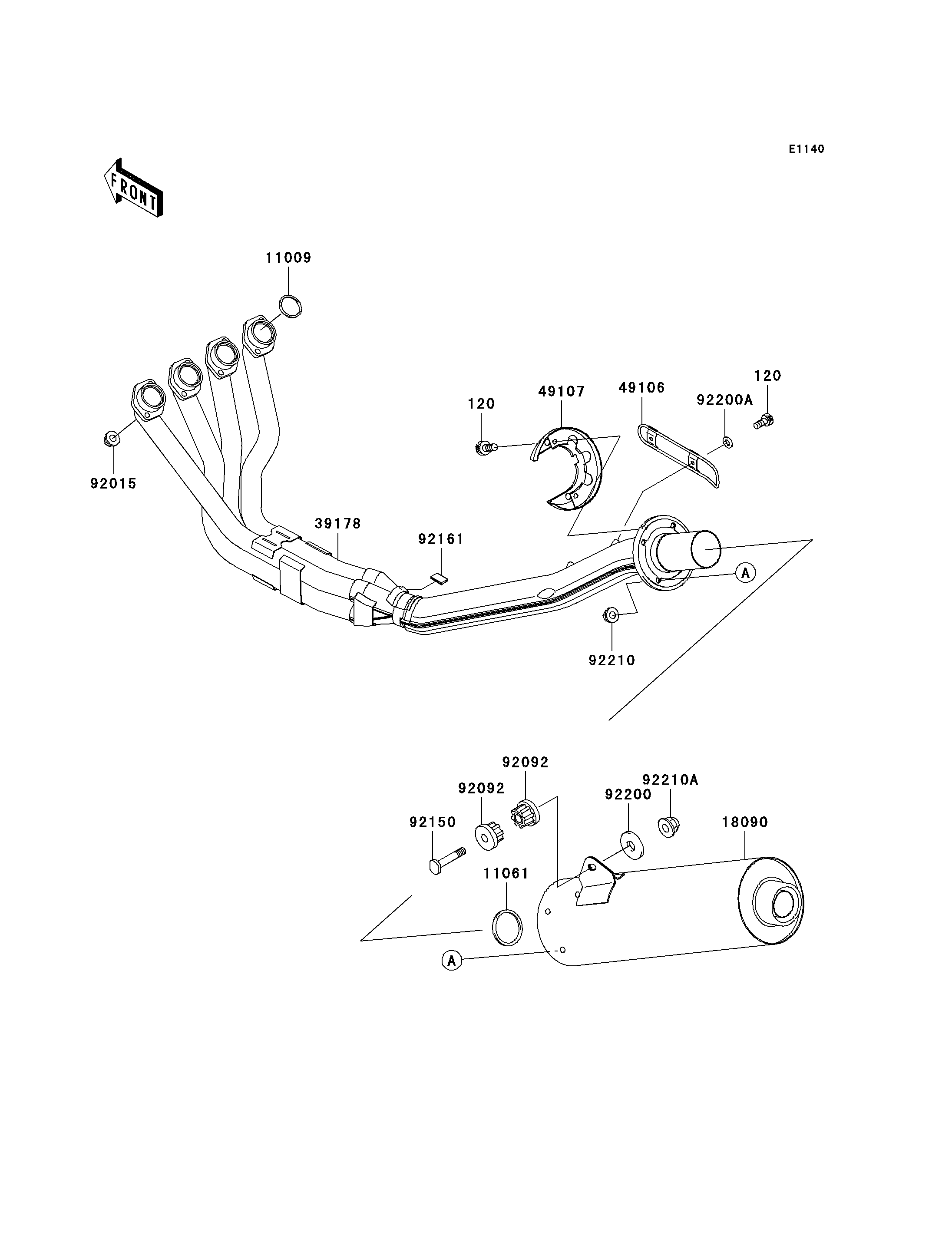

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0610 4
GASKET,EXHAUST PIPE HOLDER 11009 11009-1840 4
GASKET,MUFFLER CONNECT 11061 11061-1095 1
BODY-COMP-MUFFLER 18090 18090-1716 1
MANIFOLD-COMP-EXHAUST 39178 39178-1332 1
COVER-MUFFLER,EXHAUST PIPE 49106 49106-1256 1
COVER-EXHAUST PIPE,END 49107 49107-1185 1
NUT,8MM 92015 92015-1402 8
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
BOLT,10X55 92150 92150-1792 1
DAMPER 92161 92161-1228 1
WASHER,10.5X25X2.0 92200 92200-1377 1
WASHER,6.5X16X2.0 92200A 92200-1543 2
NUT,8MM 92210 92210-1114 4
NUT,CAP,10MM 92210A 92210-1121 1
