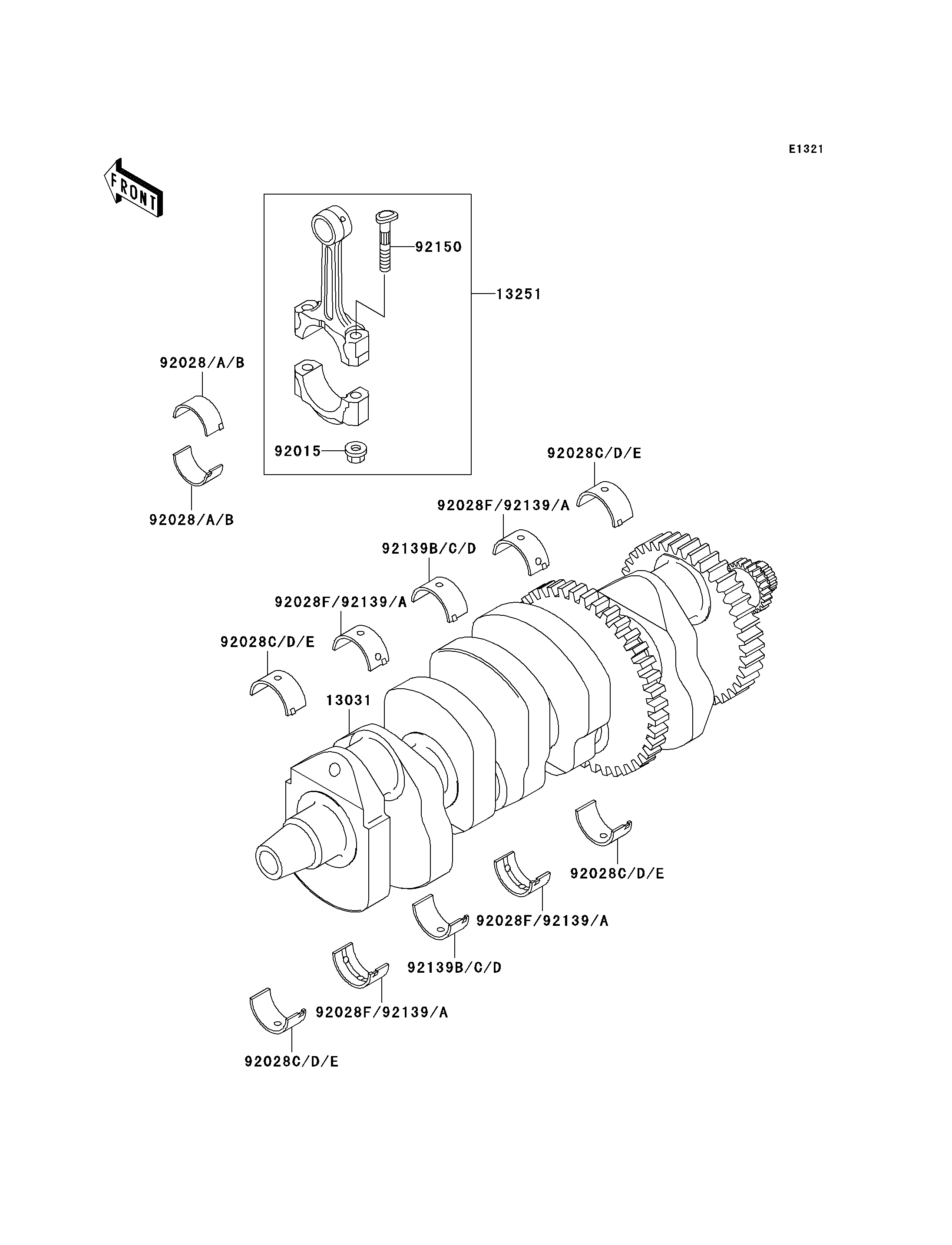

2001 Ninja® ZX™-12R - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13251
92015
92028
92028
92028A
92028A
92028B
92028B
92028C
92028C
92028C
92028C
92028D
92028D
92028D
92028D
92028E
92028E
92028E
92028E
92028F
92028F
92028F
92028F
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139C
92139C
92139D
92139D
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1460 1
ROD-ASSY-CONNECTING,K 13251 13251-1135-KK 4
NUT,CONNECTING ROD 92015 92015-1559 8
BUSHING,CONNECTING ROD,BLUE 92028 92028-1992 8
BUSHING,CONNECTING ROD,BLACK 92028A 92028-1993 AR
BUSHING,CONNECTING ROD,BROWN 92028B 92028-1994 AR
BUSHING,CRANK,#1&#5,BLUE 92028C 92028-1995 4
BUSHING,CRANK,#1&#5,BLACK 92028D 92028-1996 AR
BUSHING,CRANK,#1&#5,BROWN 92028E 92028-1997 AR
BUSHING,CRANK,#2&#4,BLUE 92028F 92028-1998 4
BUSHING,CRANK,#2&#4,BLACK 92139 92139-1051 AR
BUSHING,CRANK,#2&#4,BROWN 92139A 92139-1052 AR
BUSHING,CRANK,#3,BLUE 92139B 92139-1053 2
BUSHING,CRANK,#3,BLACK 92139C 92139-1054 AR
BUSHING,CRANK,#3,BROWN 92139D 92139-1055 AR
BOLT,CONNECTING ROD,9MM 92150 92150-1362 8
