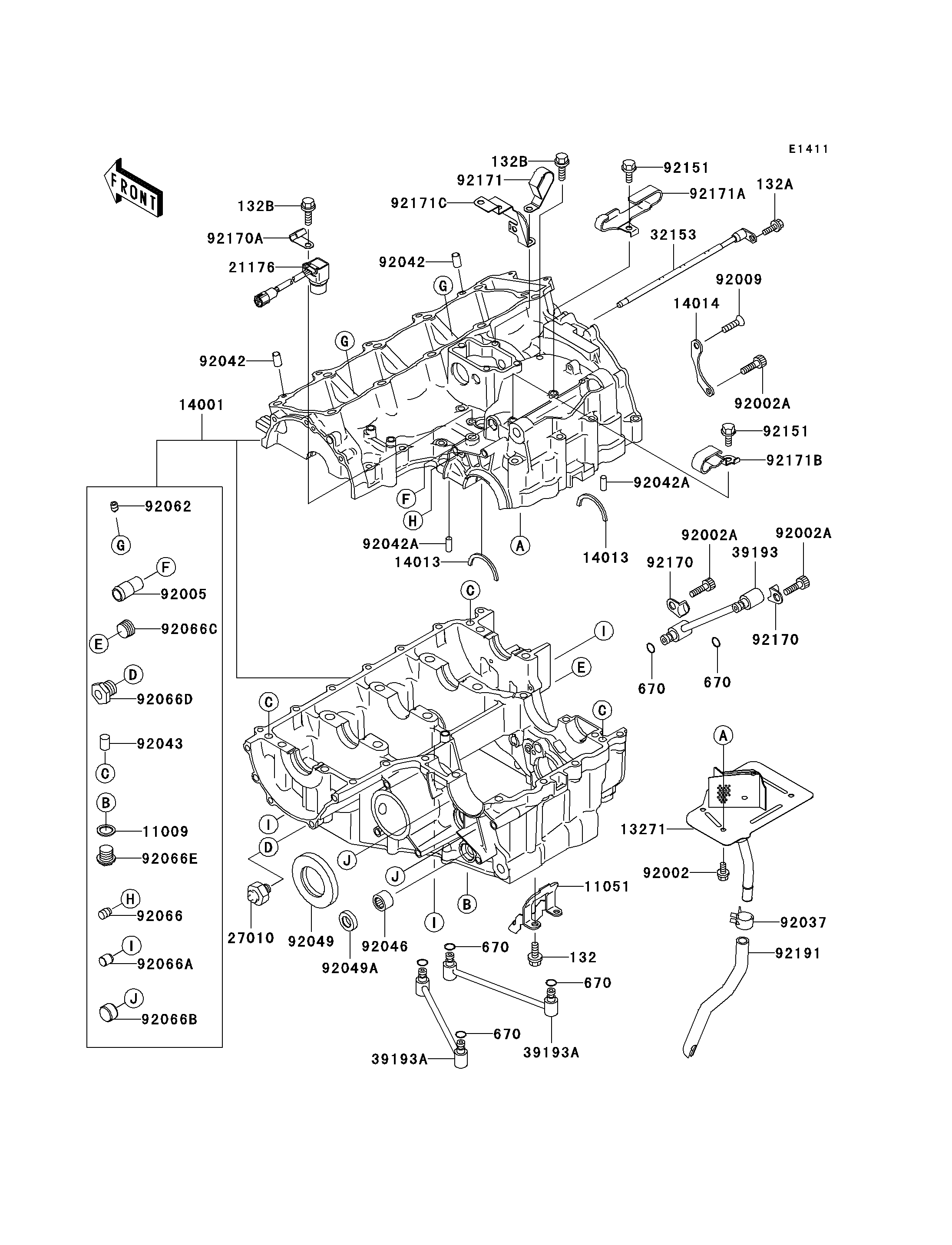

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132H0612 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132Y0614 | 1 | ||
GASKET,14X19.5X1.4 | 11009 | 11009-1461 | 1 | ||
BRACKET,TUBE | 11051 | 11051-1334 | 1 | ||
PLATE,BREATHER | 13271 | 13271-1228 | 1 | ||
SET-CRANKCASE | 14001 | 14001-1286 | 1 | ||
RING-POSITION,T=1.98 | 14013 | 14013-1004 | 2 | ||
PLATE-POSITION | 14014 | 14014-1140 | 1 | ||
SENSOR,SPEEDOMETER | 21176 | 21176-1106 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
PIPE,OIL | 32153 | 32153-1139 | 1 | ||
PIPE-OIL | 39193 | 39193-1020 | 1 | ||
PIPE-OIL,OIL PAN | 39193A | 39193-1047 | 2 | ||
BOLT,6X10 | 92002 | 92002-1449 | 5 | ||
BOLT,SOCKET,6X16 | 92002A | 92002-1778 | 3 | ||
FITTING,BREATHER | 92005 | 92005-1238 | 1 | ||
SCREW,6X16 | 92009 | 92009-1360 | 1 | ||
CLAMP | 92037 | 92037-1678 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 2 | ||
PIN,DOWEL,6X16 | 92042A | 92042-016 | 2 | ||
PIN | 92043 | 92043-1506 | 3 | ||
BEARING-NEEDLE,HK1312 | 92046 | 92046-1148 | 1 | ||
SEAL-OIL,SD40X62X8 | 92049 | 92049-1510 | 1 | ||
SEAL-OIL,TC13225.5 | 92049A | 92049-1519 | 1 | ||
NOZZLE,5X6,SILVER | 92062 | 92062-1086 | 2 | ||
PLUG | 92066 | 92066-042 | 1 | ||
PLUG,OIL LINE,7.2X8 | 92066A | 92066-1012 | 3 | ||
PLUG | 92066B | 92066-1110 | 2 | ||
PLUG,PT3/8X12 | 92066C | 92066-1252 | 1 | ||
PLUG,PT3/8X3 | 92066D | 92066-1513 | 1 | ||
PLUG,DRAIN | 92066E | 92066-2196 | 1 | ||
BOLT,6X12 | 92151 | 92151-1239 | 2 | ||
CLAMP | 92170 | 92170-1578 | 2 | ||
CLAMP,HARNESS | 92170A | 92170-1900 | 1 | ||
CLAMP | 92171 | 92171-1099 | 1 | ||
CLAMP | 92171A | 92171-1133 | 1 | ||
CLAMP | 92171B | 92171-1216 | 1 | ||
CLAMP | 92171C | 92171-1217 | 1 | ||
TUBE,BREATHER | 92191 | 92191-1602 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132Y0616 | 2 | ||
O RING | 670 | 670D1505 | 6 |
