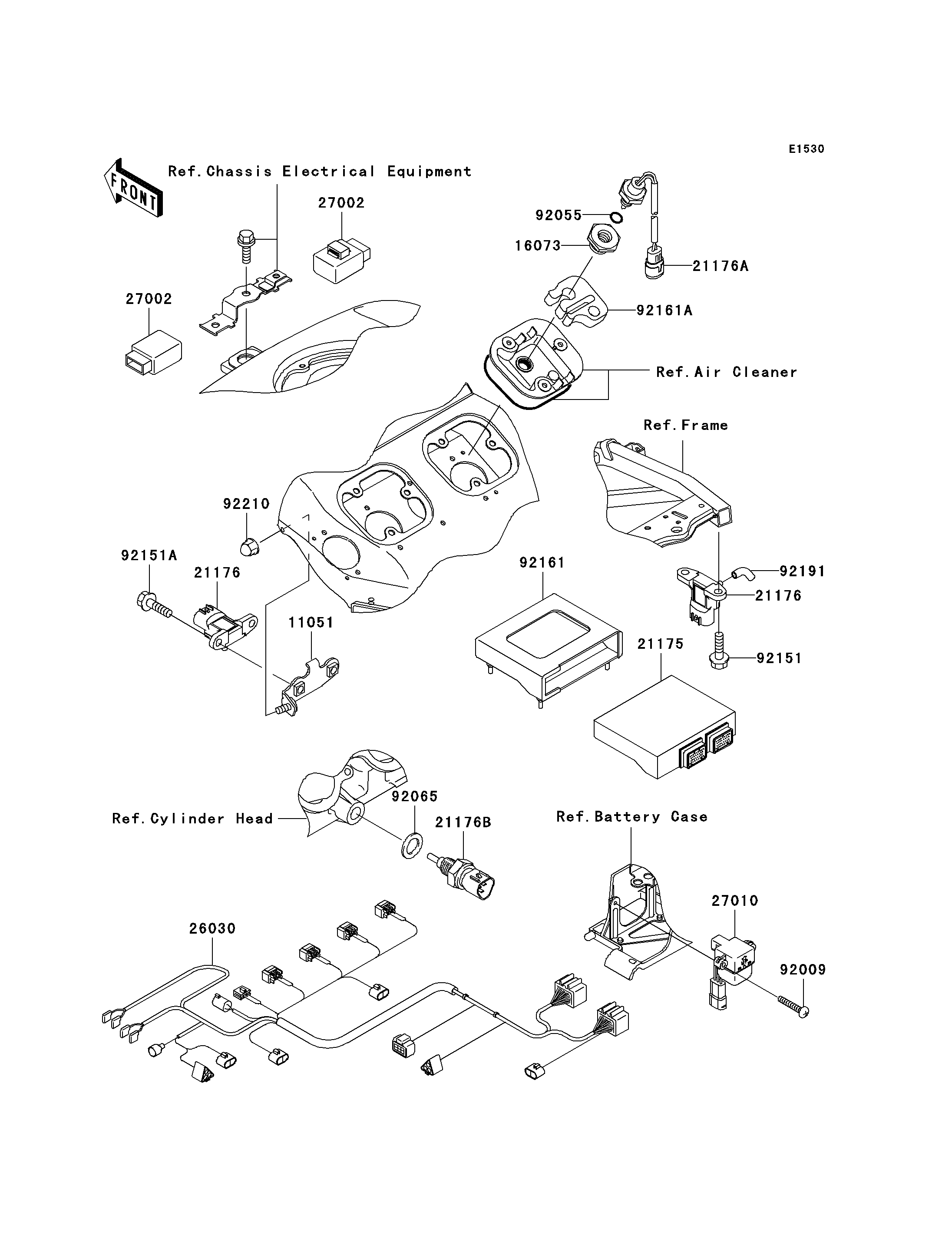

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11051
16073
21175
21176
21176
21176A
21176B
26030
27002
27002
27010
92009
92055
92065
92151
92151A
92161
92161A
92191
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11051 | 11051-1660 | 1 | ||
| INSULATOR | 16073 | 16073-1121 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-1079 | 1 | ||
| SENSOR,PRESSURE | 21176 | 21176-1095 | 2 | ||
| SENSOR,AIR TEMPERATURE | 21176A | 21176-1097 | 1 | ||
| SENSOR,WATER TEMPERATURE | 21176B | 21176-1098 | 1 | ||
| HARNESS | 26030 | 26030-1680 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1062 | 2 | ||
| SWITCH | 27010 | 27010-1426 | 1 | ||
| SCREW,4X20 | 92009 | 92009-1897 | 2 | ||
| RING-O,ID=9.5 | 92055 | 92055-1386 | 1 | ||
| GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
| BOLT,6X22 | 92151 | 92151-1236 | 2 | ||
| BOLT,6X16 | 92151A | 92151-1774 | 2 | ||
| DAMPER | 92161 | 92161-1118 | 1 | ||
| DAMPER | 92161A | 92161-1144 | 1 | ||
| TUBE | 92191 | 92191-1499 | 1 | ||
| NUT | 92210 | 92210-1252 | 1 |
| BRACKET | |
| REF # | 11051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,PRESSURE | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SENSOR,AIR TEMPERATURE | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,WATER TEMPERATURE | |
| REF # | 21176B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-ASSY | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=9.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,12X22X2,DRAIN PLUG | |
| REF # | 92065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X22 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
