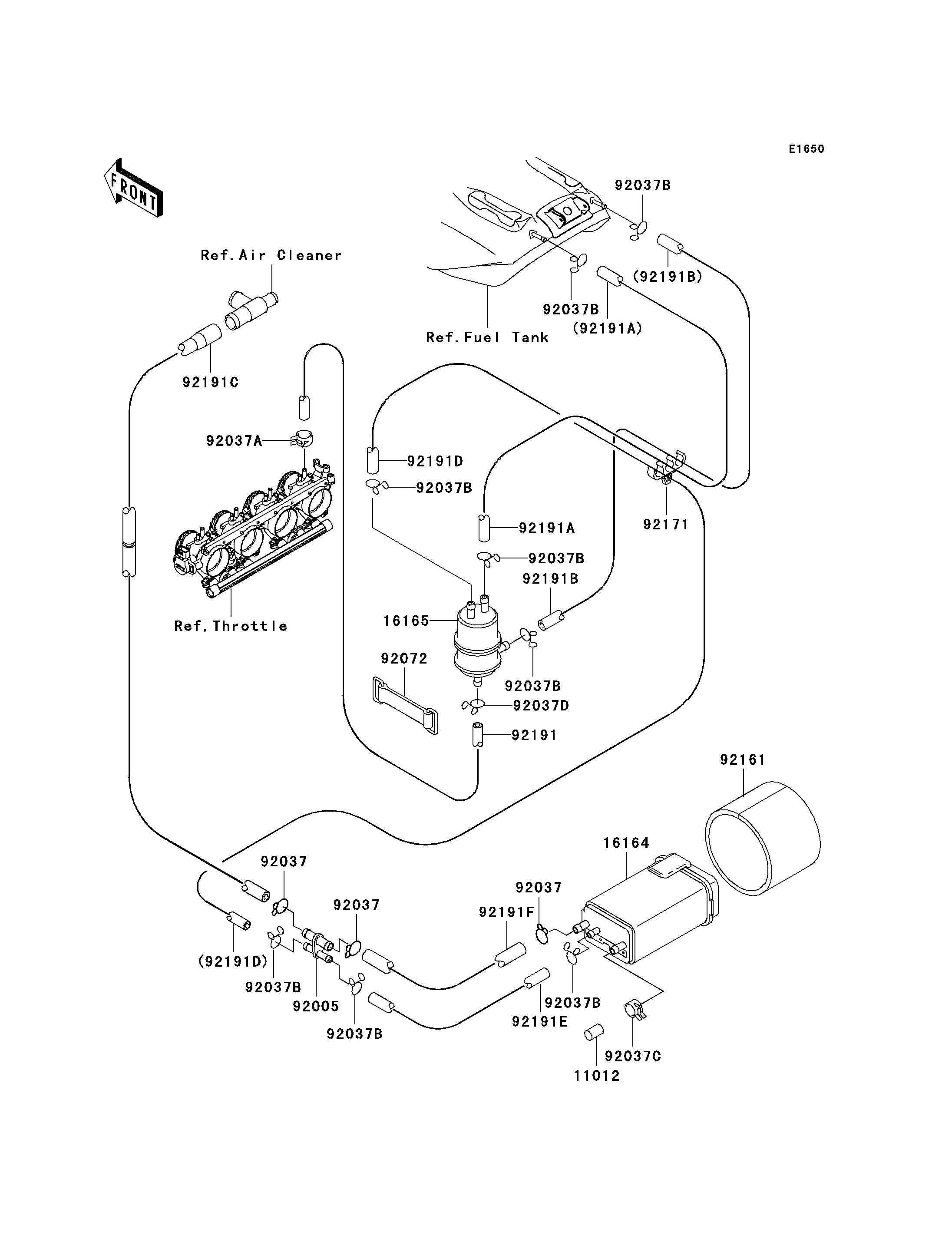

2001 Ninja® ZX™-12R - Fuel Evaporative System(CA)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
CANISTER | 16164 | 16164-1054 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
FITTING | 92005 | 92005-1372 | 1 | CA | |
CLAMP,HOSE | 92037 | 92037-1104 | 3 | CA | |
CLAMP,TUBE | 92037A | 92037-1461 | 1 | CA | |
CLAMP,TUBE | 92037B | 92037-147 | 8 | CA | |
CLAMP,CANISTER | 92037C | 92037-1512 | 1 | CA | |
CLAMP | 92037D | 92037-1712 | 1 | CA | |
BAND,L=50 | 92072 | 92072-066 | 1 | CA | |
DAMPER | 92161 | 92161-1142 | 1 | CA | |
CLAMP | 92171 | 92171-1213 | 1 | CA | |
TUBE,SEPARATOR-HEAD,WHITE | 92191 | 92191-1380 | 1 | CA | |
TUBE,TANK-SEPARATOR,BLUE | 92191A | 92191-1381 | 1 | CA | |
TUBE,SEPARATOR-TANK,RED | 92191B | 92191-1382 | 1 | CA | |
TUBE,CANISTER-AIR SWITCH,GREEN | 92191C | 92191-1383 | 1 | CA | |
TUBE,CANISTER-SEPARATOR,BLUE | 92191D | 92191-1384 | 1 | CA | |
TUBE | 92191E | 92191-1497 | 1 | CA | |
TUBE | 92191F | 92191-1498 | 1 | CA |
