130
53001
53001A
53003
53003A
53065A
53065B
92009
92027
92161
92161
92161A

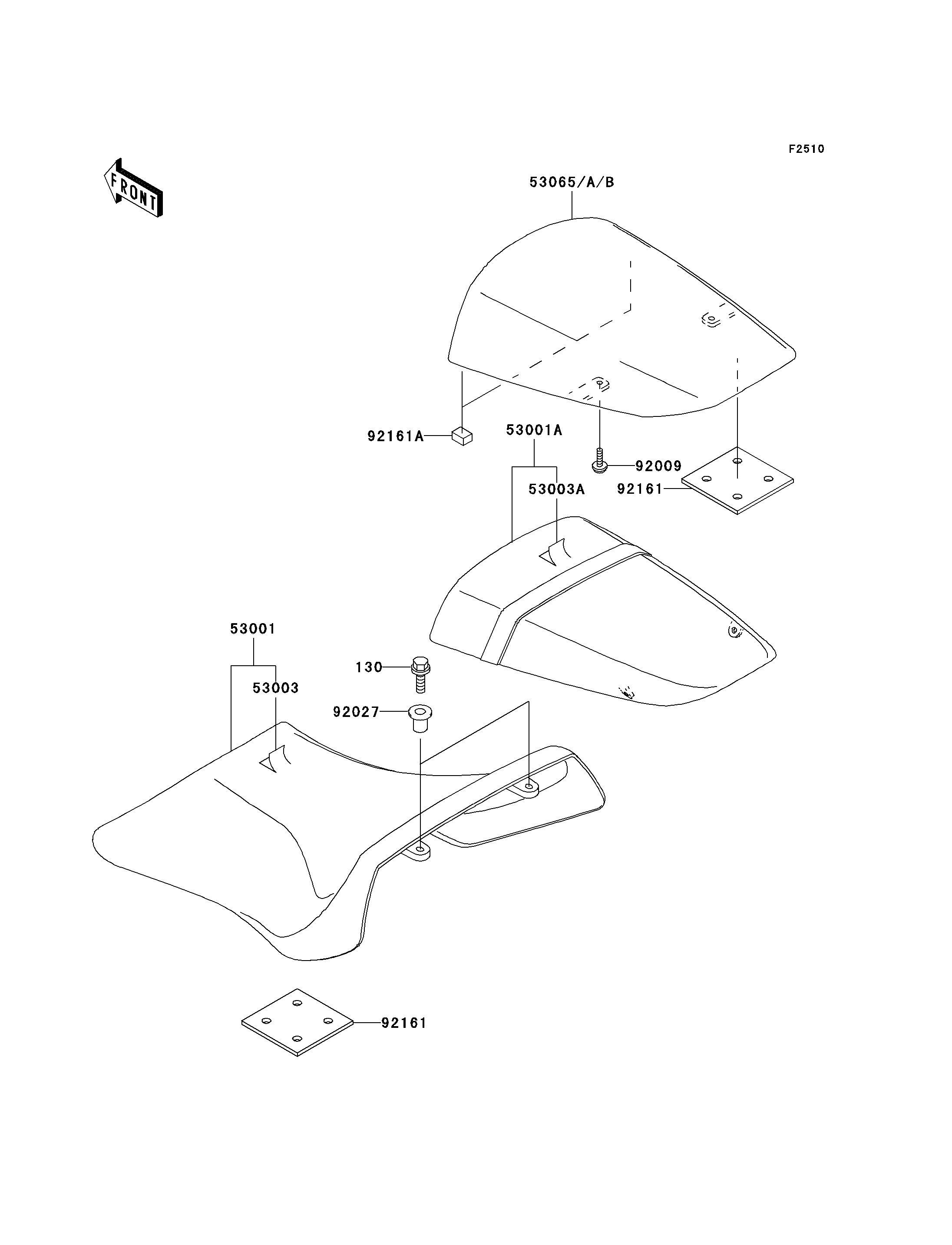

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 2
SEAT-ASSY,FR,BLACK 53001 53001-1914-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53001A 53001-1959-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1444-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1445-MA 1
COVER SEAT,M.P.SILVER 53065A 53065-1051-GU 1
COVER SEAT,C.L.GREEN 53065B 53065-1051-8N 1
SCREW,5X16 92009 92009-1909 2
COLLAR,L=12 92027 92027-1062 2
DAMPER 92161 92161-1149 2
DAMPER 92161A 92161-1164 2
COVER SEAT,C.L.BLUE 53065 53065-1051-E1 1 CN
