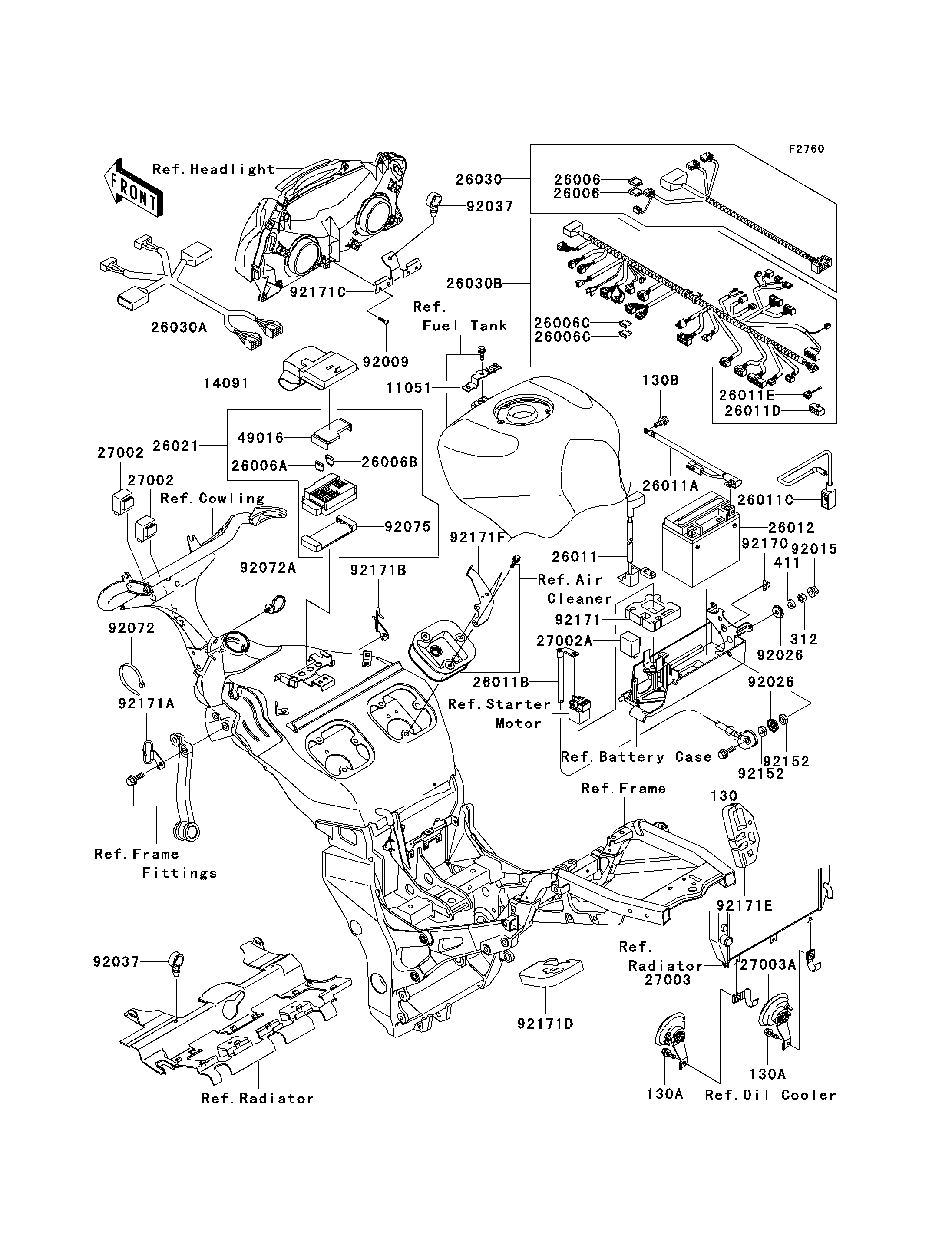

2001 Ninja® ZX™-12R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130A
130A
11051
11051
14091
14091
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006C
26006C
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26011D
26011D
26011E
26011E
26012
26012
26021
26021
26030
26030
26030A
26030A
26030B
26030B
27002
27002
27002
27002
27002A
27002A
27003
27003
27003A
27003A
49016
49016
92009
92009
92015
92015
92026
92026
92026
92026
92037
92037
92037
92037
92072
92072
92072A
92072A
92075
92075
92152
92152
92152
92152
92170
92170
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171D
92171D
92171E
92171E
92171F
92171F
130B
130B
312
312
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130H0630 1
BOLT-FLANGED 130A 130J0612 2
BRACKET,FUSE 11051 11051-1474 1
COVER,JUNCTION BOX 14091 14091-1280 1
FUSE,20A-Y 26006 26006-1051 2
FUSE,30A-G 26006A 26006-1067 1
FUSE,10A-R 26006B 26006-1068 8
FUSE,15A 26006C 26006-1075 2
WIRE-LEAD,BATTERY(+) 26011 26011-1730 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1731 1
WIRE-LEAD,SUB 26011B 26011-1762 1
WIRE-LEAD,(+),JUMP START 26011C 26011-1772 1
WIRE-LEAD,SETTING(A) 26011D 26011-1773 1
WIRE-LEAD,DIAGNOSIS 26011E 26011-1774 1
BATTERY,YTX14-BS,12V 12AH 26012 26012-1334 1
JUNCTION BOX 26021 26021-1089 1
HARNESS,SUB 26030 26030-1752 1
HARNESS,FR 26030A 26030-1779 1
HARNESS,MAIN 26030B 26030-1856 1
RELAY-ASSY,STARTER CIRCUIT 27002 27002-1086 2
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN,LH 27003 27003-1418 1
HORN,RH 27003A 27003-1419 1
COVER-SEAL,FUSE 49016 49016-1177 1
SCREW,TAPPING,5X14 92009 92009-1197 2
NUT,FLANGED,6MM 92015 92015-1367 1
SPACER 92026 92026-1575 2
CLAMP,HOSE 92037 92037-1827 2
BAND,L=202 92072 92072-1195 1
BAND 92072A 92072-1392 1
DAMPER,JUNCTION BOX 92075 92075-1688 1
COLLAR 92152 92152-1252 2
CLAMP,HARNESS 92170 92170-1494 1
CLAMP,HARNESS 92171 92171-1110 1
CLAMP,H/P L HARNESS 92171A 92171-1207 1
CLAMP,H/P R HARNESS 92171B 92171-1208 1
CLAMP,HEAD LAMP COUPLER 92171C 92171-1211 1
CLAMP,HARNESS 92171D 92171-1255 1
CLAMP,HARNESS 92171E 92171-1256 1
CLAMP,HARNESS 92171F 92171-1371 1
BOLT-FLANGED,6X10 130B 130V0610 1
NUT-HEX 312 312H0600 1
WASHER-PLAIN,6MM 411 411E0600 1
