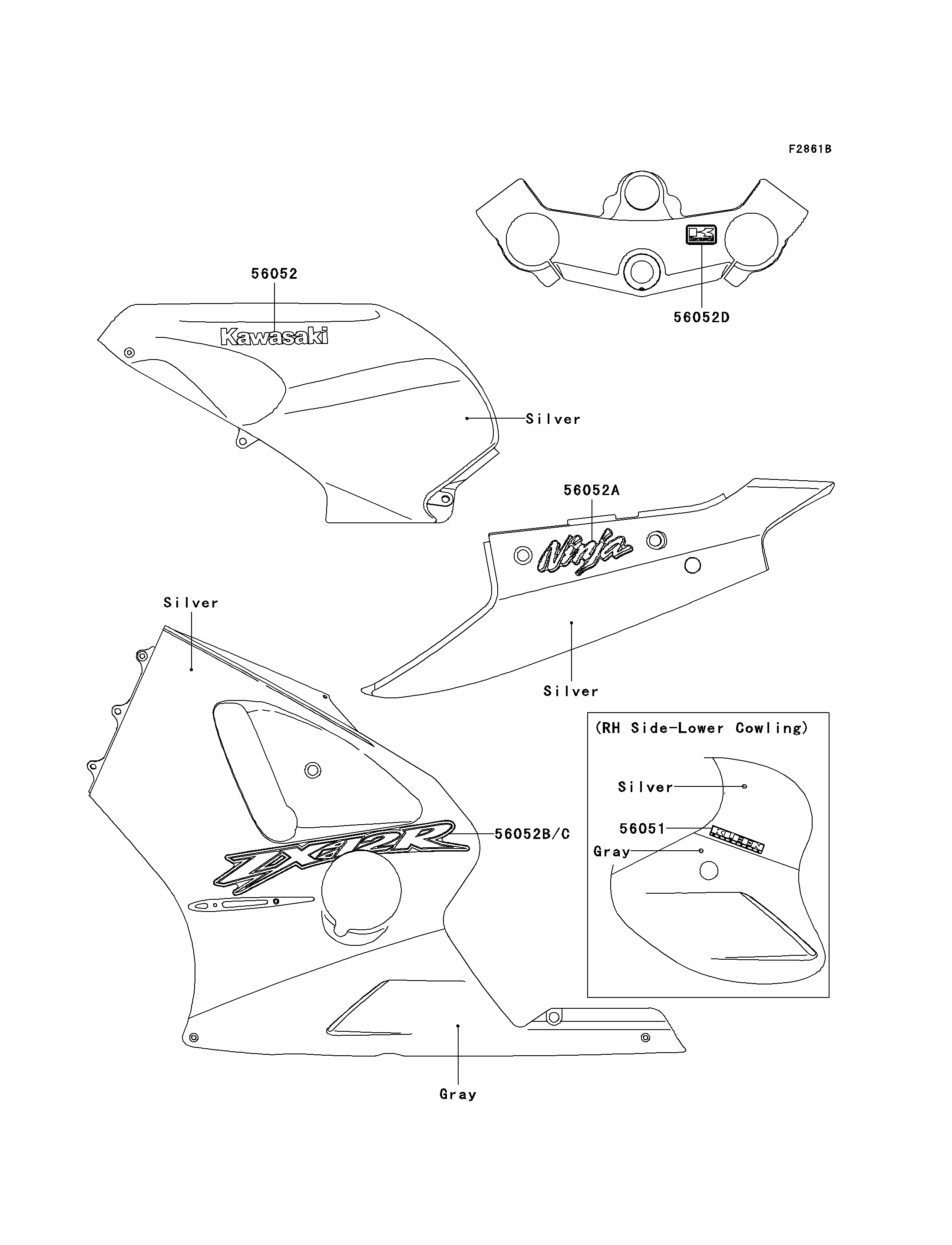

56051
56052
56052A
56052B
56052C
56052D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,LWR COWLING,KLEEN 56051 56051-1801 1
MARK,FUEL TANK COVER,KAWASAKI 56052 56052-1173 2
MARK,SEAT COVER,NINJA 56052A 56052-1176 2
MARK,LWR COWLING,RH,ZX-12R 56052B 56052-1177 1
MARK,LWR COWLING,LH,ZX-12R 56052C 56052-1188 1
MARK,K.KAWASAKI 56052D 56052-1202 1
