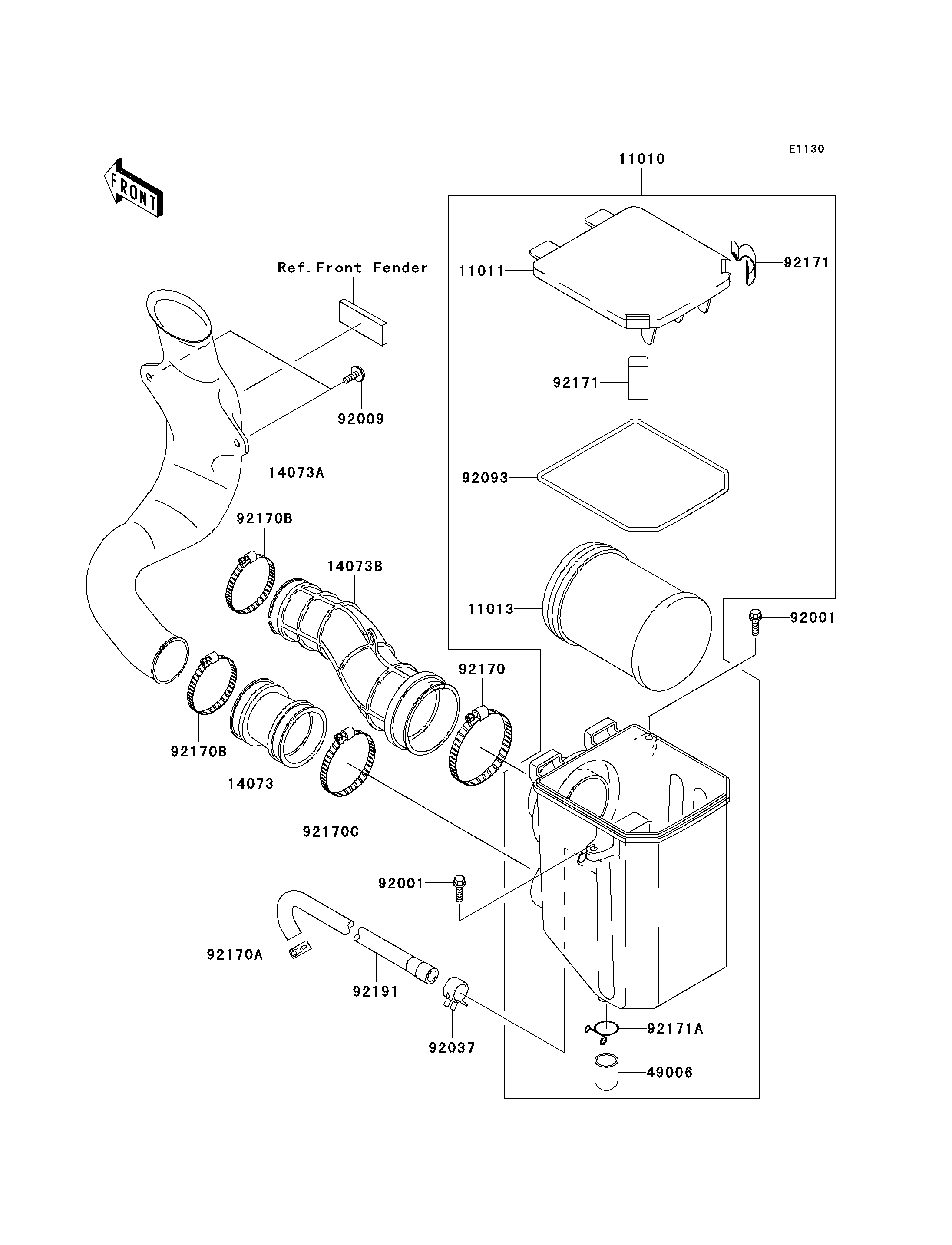

2004 Prairie 360 4X4 Hardwoods Green HD - Air Cleaner
11010
11011
11013
14073
14073A
14073B
49006
92001
92001
92009
92037
92093
92170
92170A
92170B
92170B
92170C
92171
92171
92171A
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1766 | 1 | ||
| CASE-AIR FILTER,UPP | 11011 | 11011-1639 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1292 | 1 | ||
| DUCT,A/C-INLET | 14073 | 14073-1802 | 1 | ||
| DUCT,INLET | 14073A | 14073-1803 | 1 | ||
| DUCT,A/C-CARBURETOR | 14073B | 14073-1823 | 1 | ||
| BOOT | 49006 | 49006-1359 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1460 | 2 | ||
| SCREW | 92009 | 92009-1166 | 2 | ||
| CLAMP | 92037 | 92037-1678 | 1 | ||
| SEAL,AIR FILTER CASE | 92093 | 92093-1550 | 1 | ||
| CLAMP | 92170 | 92170-1307 | 1 | ||
| CLAMP | 92170A | 92170-1491 | 1 | ||
| CLAMP | 92170B | 92170-1674 | 2 | ||
| CLAMP | 92170C | 92170-1764 | 1 | ||
| CLAMP,AIR FILTER CASE | 92171 | 92171-1426 | 2 | ||
| CLAMP | 92171A | 92171-1427 | 1 | ||
| TUBE,AIR CLEANER | 92191 | 92191-1644 | 1 |
