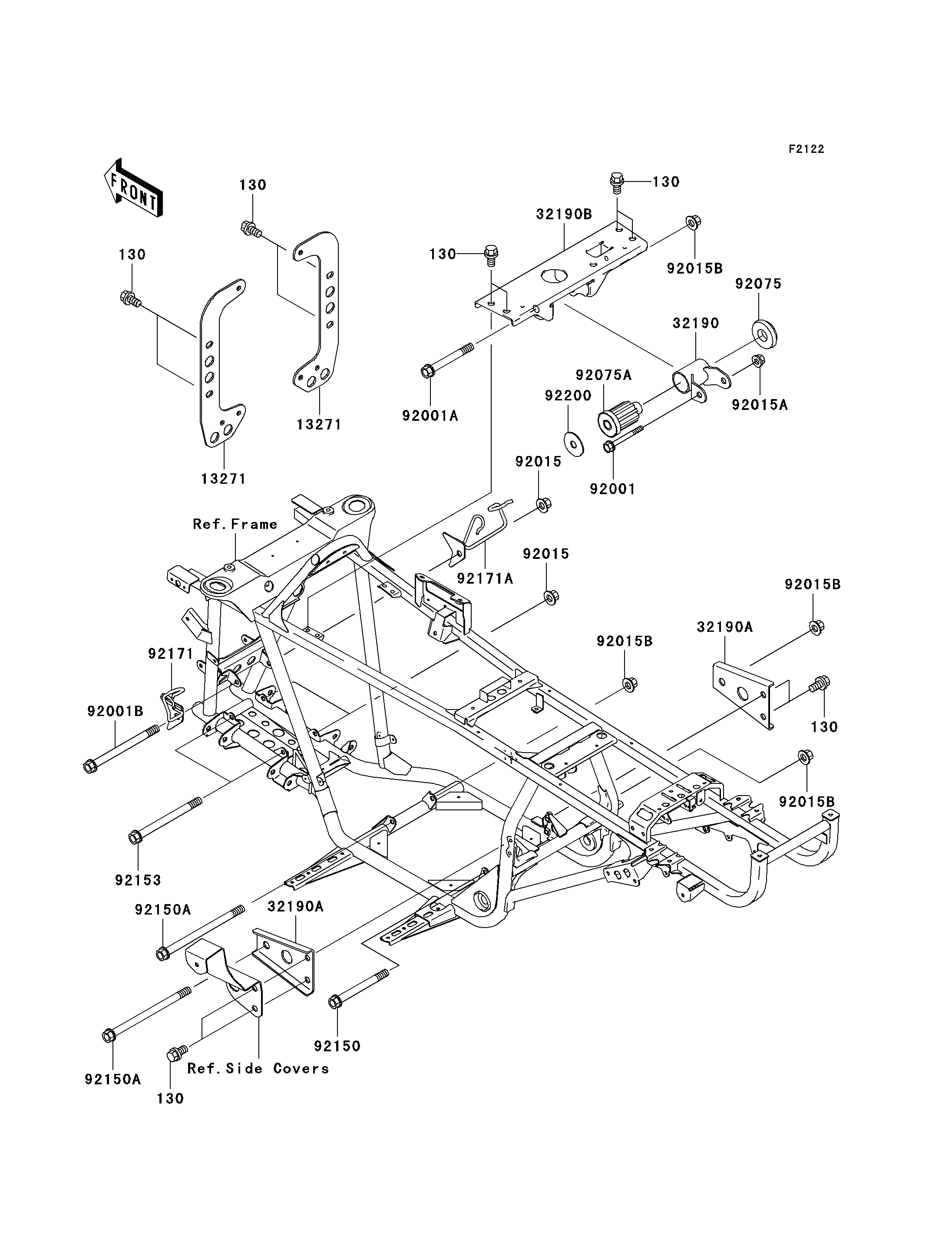

2003 Prairie 360 4X4 Advantage Classic - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130
13271
13271
32190
32190A
32190A
32190B
92001
92001A
92001B
92015
92015
92015A
92015B
92015B
92015B
92015B
92075
92075A
92150
92150A
92150A
92153
92171
92171A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130J0814 12
PLATE,OIL COOLER 13271 13271-7519 2
BRACKET-ENGINE 32190 32190-1141 1
BRACKET-ENGINE,RR 32190A 32190-7505 2
BRACKET-ENGINE,HEAD 32190B 32190-7507 1
BOLT,FLANGED,8X60,BLACK 92001 92001-1615 1
BOLT,FLANGED,10X80 92001A 92001-1709 1
BOLT,FLANGED,10X125 92001B 92001-1720 1
NUT,FLANGED,10MM 92015 92015-1335 3
NUT,LOCK,FLANGED,8MM 92015A 92015-1397 1
NUT,FLANGED,10MM 92015B 92015-1727 4
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 1
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1377 1
BOLT,FLANGED,10X95 92150 92150-1230 1
BOLT,FLANGED,10X150 92150A 92150-1686 2
BOLT,FLANGED,10X120 92153 92153-7502 2
CLAMP,BRAKE HOSE,LH 92171 92171-1535 1
CLAMP,BRAKE HOSE,RH 92171A 92171-1540 1
WASHER,10.5X38.1X1.52 92200 92200-7504 1
