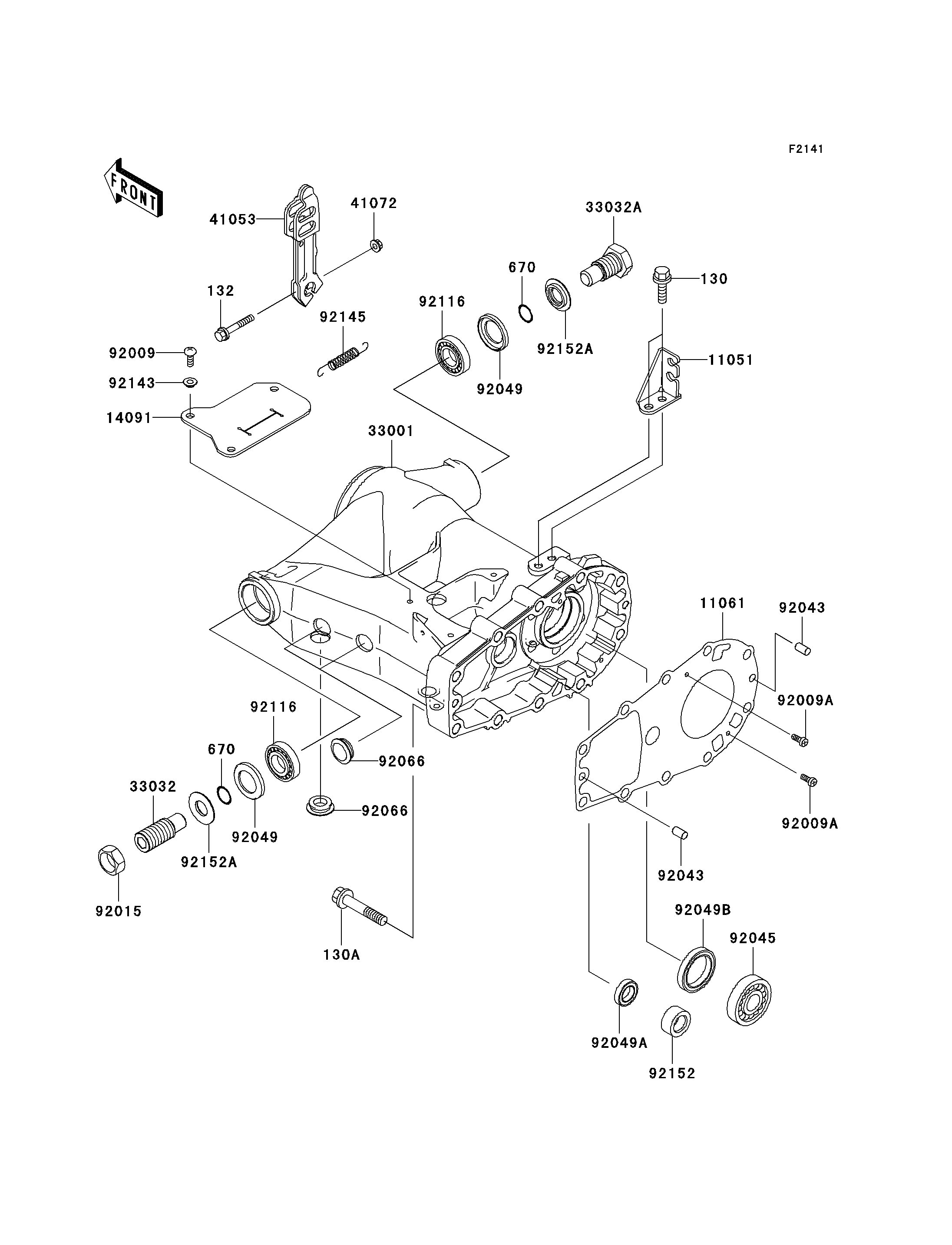

2004 Prairie 360 4X4 Hardwoods Green HD - Swingarm
130
130A
132
670
670
11051
11061
14091
33001
33032
33032A
41053
41072
92009
92009A
92009A
92015
92043
92043
92045
92049
92049
92049A
92049B
92066
92066
92116
92116
92143
92145
92152
92152A
92152A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0822 | 2 | ||
BOLT-FLANGED | 130A | 130P1055 | 10 | ||
BOLT-FLANGED-SMALL | 132 | 132G0640 | 1 | ||
O RING,16MM | 670 | 670B2016 | 2 | ||
BRACKET,CABLE | 11051 | 11051-1762 | 1 | ||
GASKET,SWING ARM | 11061 | 11061-1065 | 1 | ||
COVER | 14091 | 14091-7508 | 1 | ||
ARM-COMP-SWING | 33001 | 33001-7502 | 1 | ||
SHAFT-SWING ARM,LEFT SIDE | 33032 | 33032-1197 | 1 | ||
SHAFT-SWING ARM,RIGHT SIDE | 33032A | 33032-1200 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-1094 | 1 | ||
NUT,6MM | 41072 | 41072-007 | 1 | ||
SCREW | 92009 | 92009-1166 | 3 | ||
SCREW,4X10 | 92009A | 92009-1936 | 2 | ||
NUT,22MM | 92015 | 92015-1229 | 1 | ||
PIN,8X14 | 92043 | 92043-1567 | 2 | ||
BEARING-BALL,TMBO/28C3 | 92045 | 92045-1427 | 1 | ||
SEAL-OIL,26406 | 92049 | 92049-1030 | 2 | ||
SEAL-OIL,TC17X28X6 | 92049A | 92049-1537 | 1 | ||
SEAL-OIL,HTC35X48X7 | 92049B | 92049-1538 | 1 | ||
PLUG | 92066 | 92066-1534 | 3 | ||
BEARING-ROLLER,4T30203E1 | 92116 | 92116-1001 | 2 | ||
COLLAR | 92143 | 92143-1331 | 3 | ||
SPRING,BRAKE LEVER RETURN | 92145 | 92145-1313 | 1 | ||
COLLAR | 92152 | 92152-1240 | 1 | ||
COLLAR | 92152A | 92152-1356 | 2 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,16MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,CABLE | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,SWING ARM | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM,LEFT SIDE | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM,RIGHT SIDE | |
REF # | 33032A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE CAM | |
REF # | 41053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 41072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,4X10 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,22MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,TMBO/28C3 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,26406 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC17X28X6 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,HTC35X48X7 | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,4T30203E1 | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPRING,BRAKE LEVER RETURN | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
