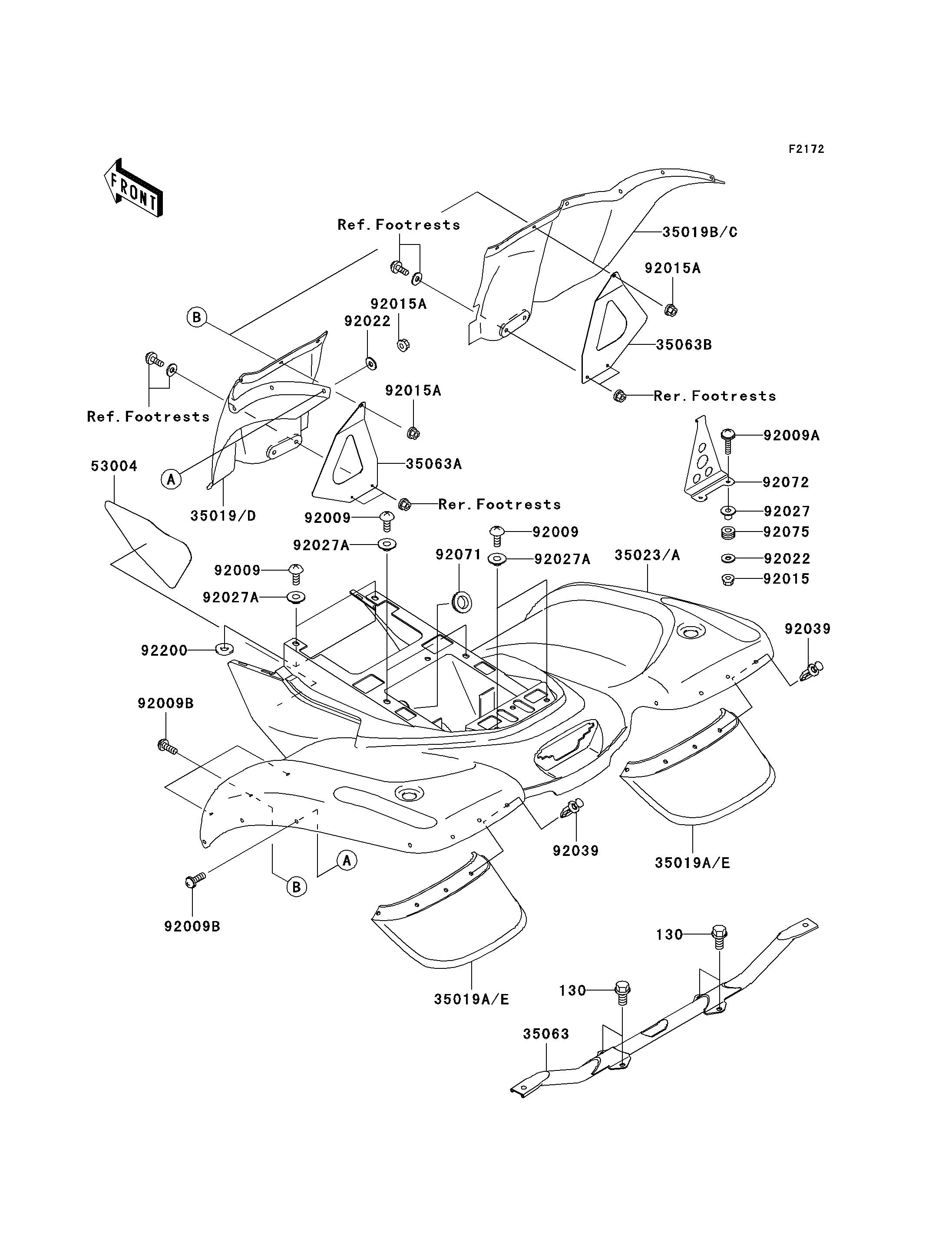

2003 Prairie 360 4X4 Advantage Classic - Rear Fender(s)
130
130
35019C
35019D
35019E
35019E
35023
35063
35063A
35063B
53004
92009
92009
92009
92009A
92009B
92009B
92015
92015A
92015A
92015A
92022
92022
92027
92027A
92027A
92027A
92039
92039
92071
92072
92075
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X16,BLACK | 130 | 130J0816 | 4 | ||
FLAP,RR,FR,RH,F.BLACK | 35019C | 35019-7503-6Z | 1 | ||
FLAP,RR,FR,LH,F.BLACK | 35019D | 35019-7504-6Z | 1 | ||
FLAP,RR,RR,F.BLACK | 35019E | 35019-7505-6Z | 2 | ||
FENDER-REAR,CAMOUFLAGE | 35023 | 35023-0001-370 | 1 | ||
STAY,REAR FENDER | 35063 | 35063-7505 | 1 | ||
STAY,REAR FENDER,LH | 35063A | 35063-7508 | 1 | ||
STAY,REAR FENDER,RH | 35063B | 35063-7509 | 1 | ||
MAT,REAR FENDER | 53004 | 53004-1173 | 1 | ||
SCREW | 92009 | 92009-1166 | 6 | ||
SCREW,6X25 | 92009A | 92009-1465 | 2 | ||
SCREW,6X16 | 92009B | 92009-1621 | 12 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
NUT,FLANGED,6MM | 92015A | 92015-1367 | 12 | ||
WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 12 | ||
COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 2 | ||
COLLAR,L=4.7 | 92027A | 92027-1964 | 6 | ||
RIVET | 92039 | 92039-1229 | 10 | ||
GROMMET | 92071 | 92071-1237 | 1 | ||
BAND | 92072 | 92072-1361 | 1 | ||
DAMPER,CASE | 92075 | 92075-222 | 2 | ||
WASHER,8.5X20X2.3 | 92200 | 92200-1055 | 2 |
BOLT-FLANGED,8X16,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FLAP,RR,FR,RH,F.BLACK | |
REF # | 35019C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,FR,LH,F.BLACK | |
REF # | 35019D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,RR,RR,F.BLACK | |
REF # | 35019E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FENDER-REAR,CAMOUFLAGE | |
REF # | 35023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER | |
REF # | 35063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,LH | |
REF # | 35063A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,RH | |
REF # | 35063B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,REAR FENDER | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,6X25 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
COLLAR,FLANGED,L=12.1,BLACK | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=4.7 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,CASE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,8.5X20X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
