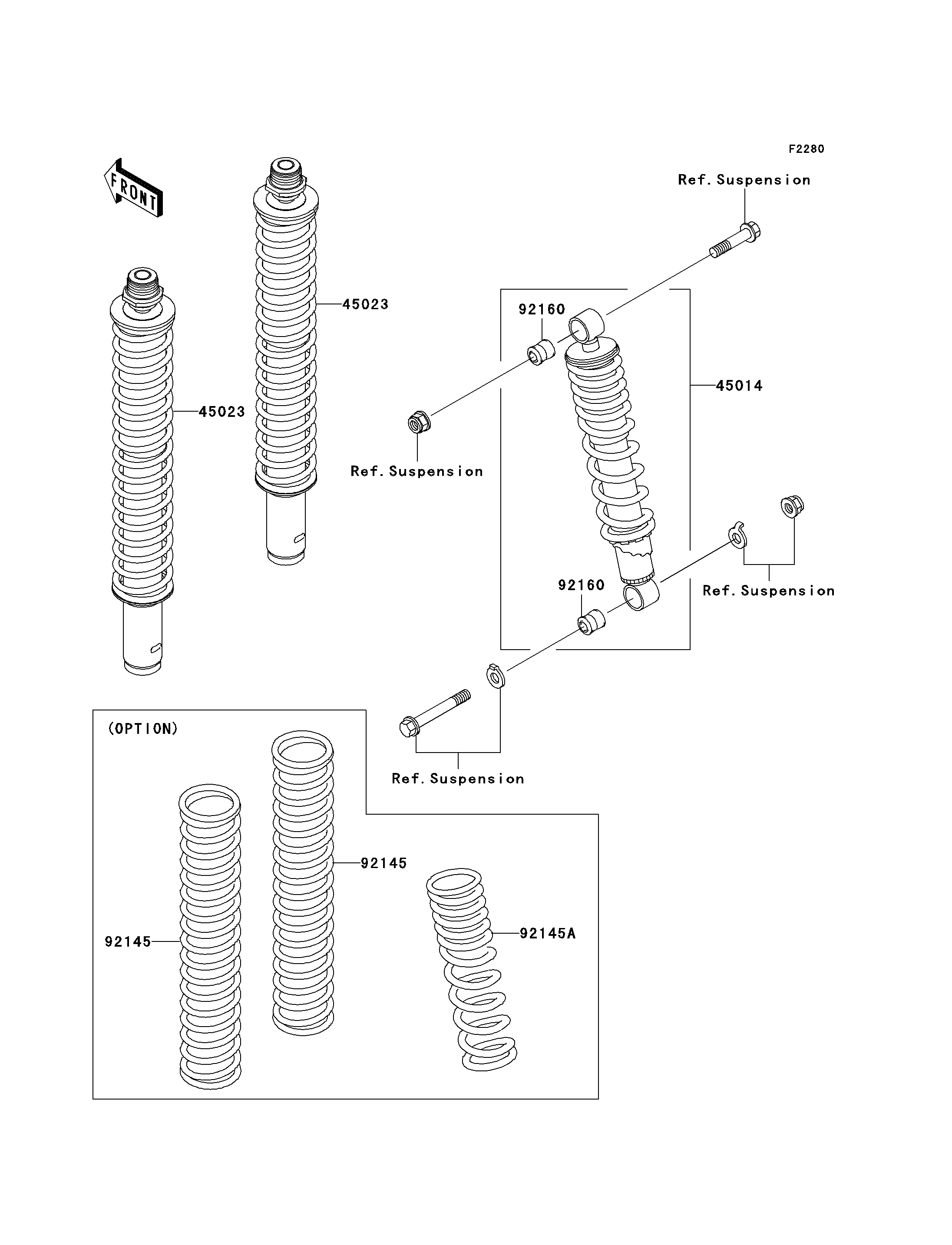

2004 Prairie 360 4X4 Hardwoods Green HD - Shock Absorber(s)

45014
45023
45023
92145
92145
92145A
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER 45014 45014-1838 1
STRUT 45023 45023-7504 2
SPRING,STRUT,K=1.0 92145 92145-1225 2 (OPTION)
SPRING,SHOCKABSORBER,K=2.3 92145A 92145-1271 1 (OPTION)
DAMPER,SHOCKABSORBER 92160 92160-1777 2
