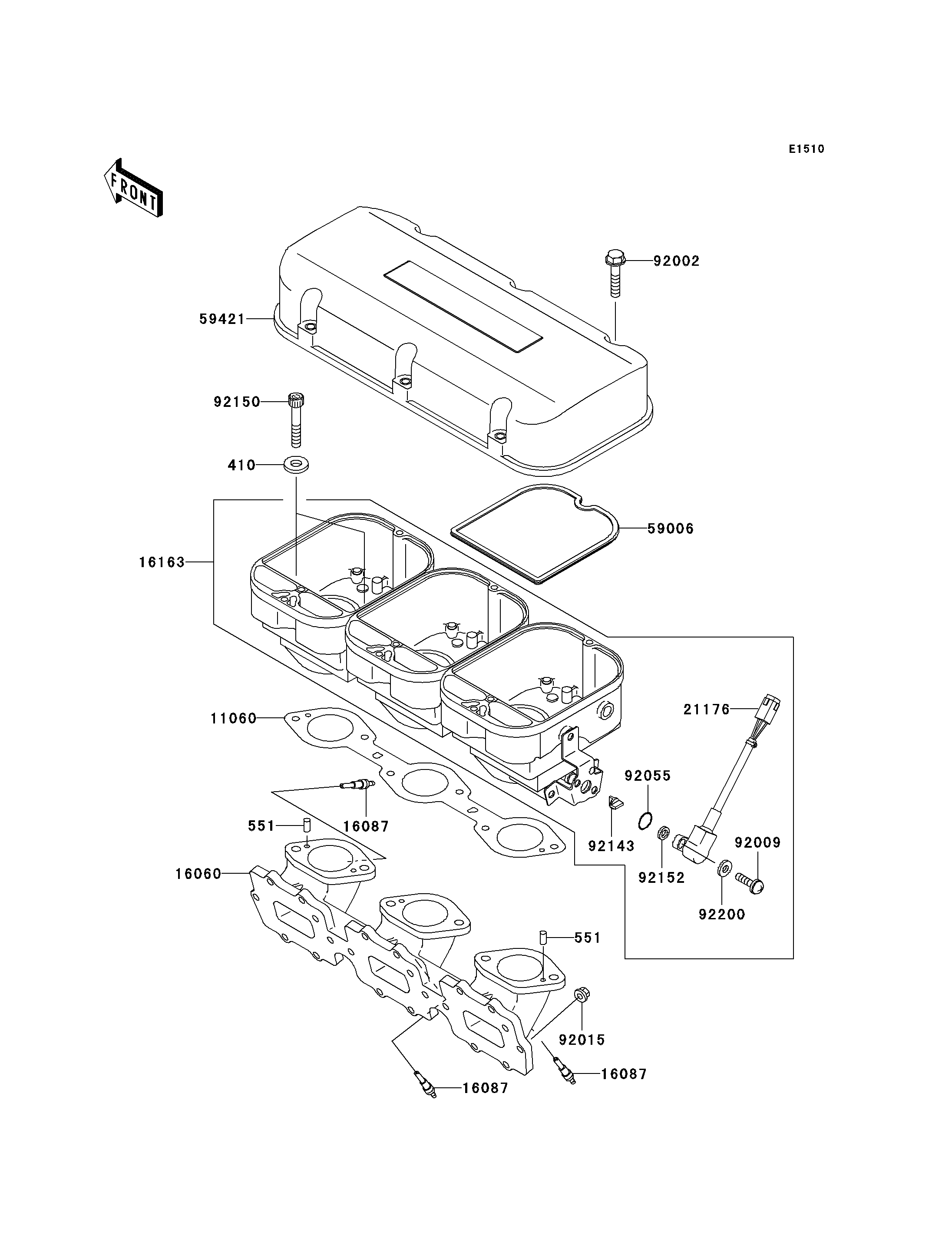

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
410
551
551
11060
16060
16087
16087
16087
16163
21176
59006
59421
92002
92009
92015
92055
92143
92150
92152
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 6 | ||
| PIN-DOWEL | 551 | 551R0408 | 2 | ||
| GASKET,CARBURETOR | 11060 | 11060-3753 | 1 | ||
| PIPE-INTAKE | 16060 | 16060-3719 | 1 | ||
| VALVE-CHECK | 16087 | 16087-3713 | 3 | ||
| THROTTLE-ASSY | 16163 | 16163-3705 | 1 | ||
| SENSOR | 21176 | 21176-3743 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-3716 | 3 | ||
| COVER-INTAKE | 59421 | 59421-3729 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 6 | ||
| SCREW,SENSOR | 92009 | 92009-3863 | 2 | ||
| NUT,6MM | 92015 | 92015-3767 | 18 | ||
| RING-O,SENSOR | 92055 | 92055-1574 | 1 | ||
| COLLAR | 92143 | 92143-1907 | 1 | ||
| BOLT,SOCKET,6X35 | 92150 | 92150-1887 | 6 | ||
| COLLAR,SENSOR | 92152 | 92152-3721 | 2 | ||
| WASHER | 92200 | 92200-3782 | 2 |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,CARBURETOR | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-INTAKE | |
| REF # | 16060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-CHECK | |
| REF # | 16087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| THROTTLE-ASSY | |
| REF # | 16163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-FLAME | |
| REF # | 59006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER-INTAKE | |
| REF # | 59421 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,SENSOR | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| RING-O,SENSOR | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X35 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SENSOR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
