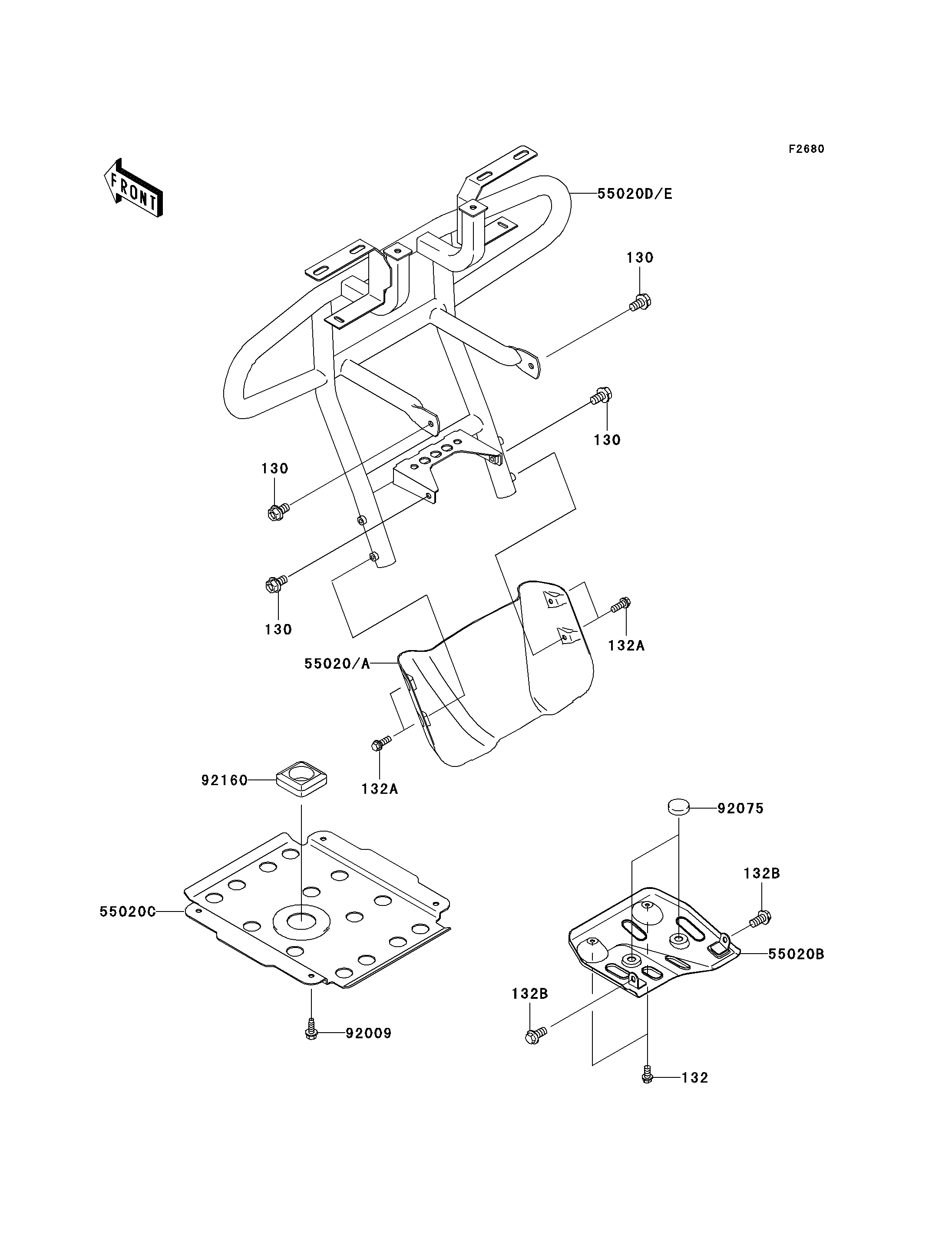

2004 Prairie 360 4X4 Hardwoods Green HD - Guard(s)

130
130
130
130
132
132A
132A
132B
132B
55020
55020B
55020C
55020D
92009
92075
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130J0814 4
BOLT-FLANGED-SMALL 132 132J0612 2
BOLT-FLANGED-SMALL 132A 132J0616 4
BOLT-FLANGED-SMALL,8X16 132B 132J0816 2
GUARD,SKID,FR,S.GOLD 55020 55020-1649-UF 1
GUARD,SWING ARM 55020B 55020-1756 1
GUARD,ENGINE 55020C 55020-1789 1
GUARD,FR,S.GOLD 55020D 55020-7504-UF 1
SCREW,TAPPING,6.35X15.5 92009 92009-7501 4
DAMPER 92075 92075-157 2
DAMPER 92160 92160-1772 1
