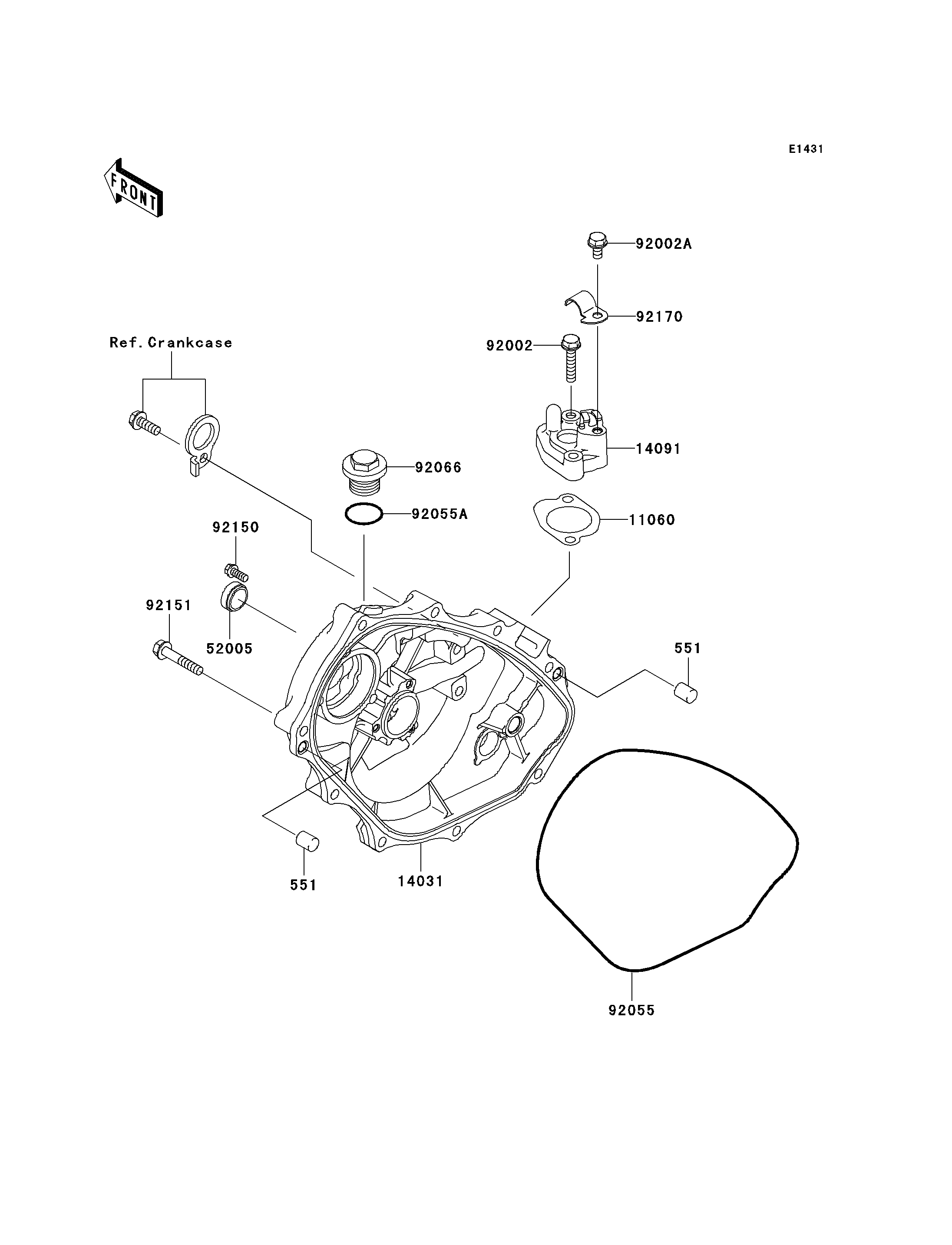

551
551
11060
14031
14091
52005
92002
92002A
92055
92055A
92066
92150
92151
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL 551 551R0812 2
GASKET 11060 11060-3803 1
COVER-GENERATOR 14031 14031-3728 1
COVER 14091 14091-3702 1
GAUGE,OIL LEVEL 52005 52005-1055 1
BOLT,6X30 92002 92002-3726 2
BOLT,6X12 92002A 92002-3763 1
RING-O,3.0X220 92055 92055-3748 1
RING-O 92055A 92055-515 1
PLUG 92066 92066-3739 1
BOLT,5X12 92150 92150-3760 1
BOLT,6X35 92151 92151-3768 9
CLAMP 92170 92170-3736 1
