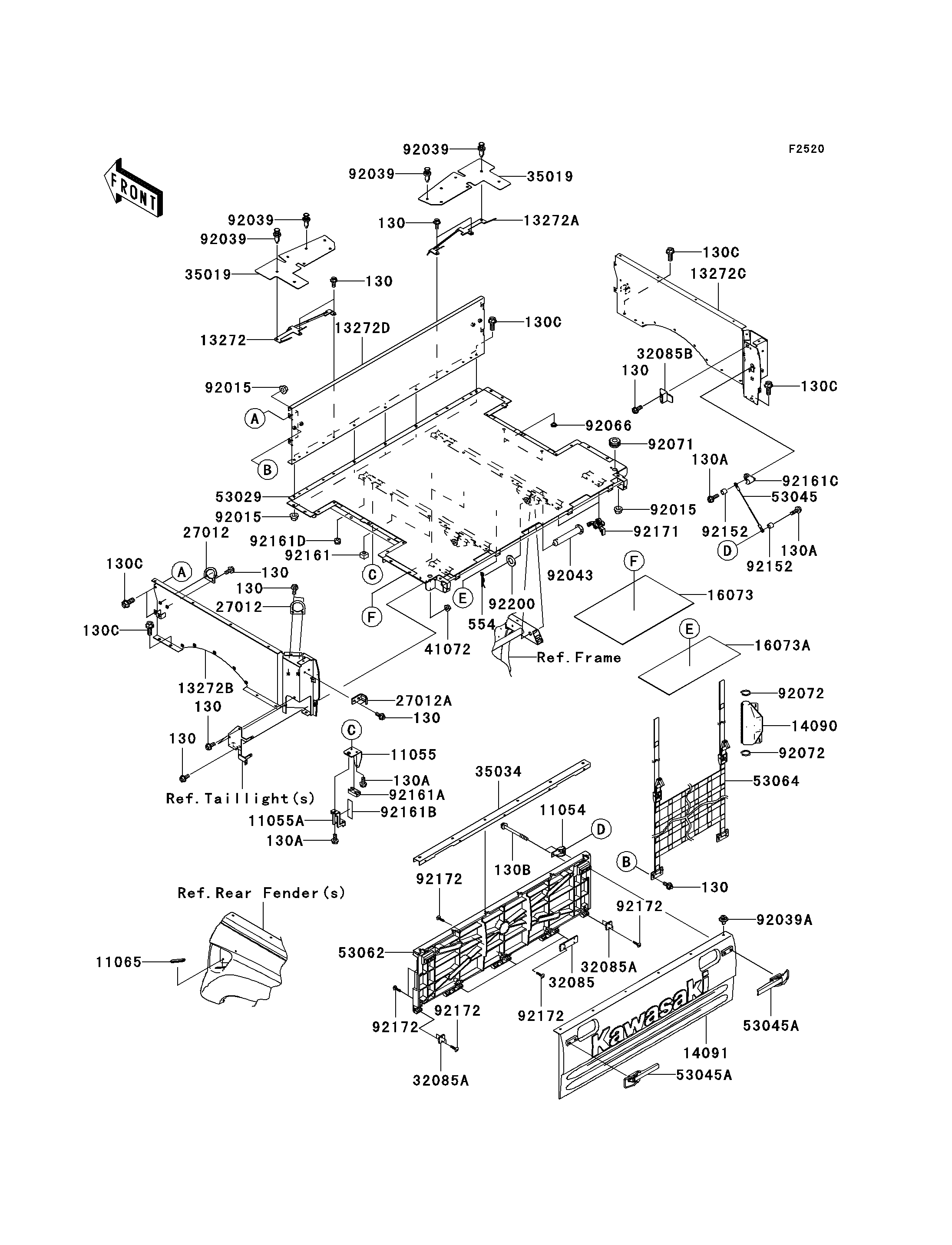

2008 Teryx® 750 4x4 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11055
11055
11055A
11055A
11065
11065
13272
13272
13272A
13272A
13272B
13272B
13272C
13272C
13272D
13272D
14090
14090
14091
14091
16073
16073
16073A
16073A
27012
27012
27012
27012
27012A
27012A
32085
32085
32085A
32085A
32085A
32085A
32085B
32085B
35019
35019
35019
35019
35034
35034
41072
41072
53029
53029
53045
53045
53045A
53045A
53045A
53045A
53062
53062
53064
53064
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92043
92043
92066
92066
92071
92071
92072
92072
92072
92072
92152
92152
92152
92152
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92171
92171
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
130C
130C
130C
130C
130C
130C
554
554
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL GATE 11054 11054-1064 2
BRACKET,CARRIER 11055 11055-0174 2
BRACKET,CARRIER 11055A 11055-0175 2
CAP 11065 11065-0261 2
PLATE,REAR MUD GUARD,LH 13272 13272-0352 1
PLATE,REAR MUD GUARD,RH 13272A 13272-0353 1
PLATE,CARRIER,LH 13272B 13272-0432 1
PLATE,CARRIER,RH 13272C 13272-0433 1
PLATE,CARRIER,FR 13272D 13272-0464 1
COVER,COUPLER 14090 14090-1611 2
COVER,TAIL GATE,C.H.GREEN 14091 14091-1613-826 1
INSULATOR 16073 16073-0072 2
INSULATOR 16073A 16073-0074 1
HOOK 27012 27012-0113 4
HOOK 27012A 27012-0133 2
STOPPER 32085 32085-0103 3
STOPPER 32085A 32085-0104 2
STOPPER 32085B 32085-0145 2
FLAP 35019 35019-0077 2
REINFORCE 35034 35034-0102 1
NUT,6MM 41072 41072-007 2
CARRIER 53029 53029-0077 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
HOOK-ASSY 53045A 53045-1063 2
GATE-TAIL 53062 53062-0014 1
NET-CARGO 53064 53064-0008 1
NUT,8MM 92015 92015-1357 19
RIVET 92039 92039-1229 14
RIVET 92039A 92039-1256 6
PIN,12.4X72.4 92043 92043-0168 2
PLUG 92066 92066-1485 4
GROMMET 92071 92071-1010 2
BAND,L=123 92072 92072-030 4
COLLAR,6.3X9.5X8 92152 92152-0621 4
DAMPER 92161 92161-0421 4
DAMPER 92161A 92161-0546 2
DAMPER 92161B 92161-0548 2
DAMPER 92161C 92161-0550 2
DAMPER 92161D 92161-0692 2
CLAMP 92171 92171-0453 4
BOLT-FLANGED,6X14 130 130BB0614 28
BOLT-FLANGED,6X18 130A 130BB0618 12
BOLT-FLANGED,6X65 130B 130BB0665 4
BOLT-FLANGED,8X20 130C 130BB0820 19
PIN-SNAP,12MM 554 554DA1200 2
SCREW,TAPPING,4X16 92172 92172-0347 28
WASHER,13X24X2 92200 92200-0451 2
