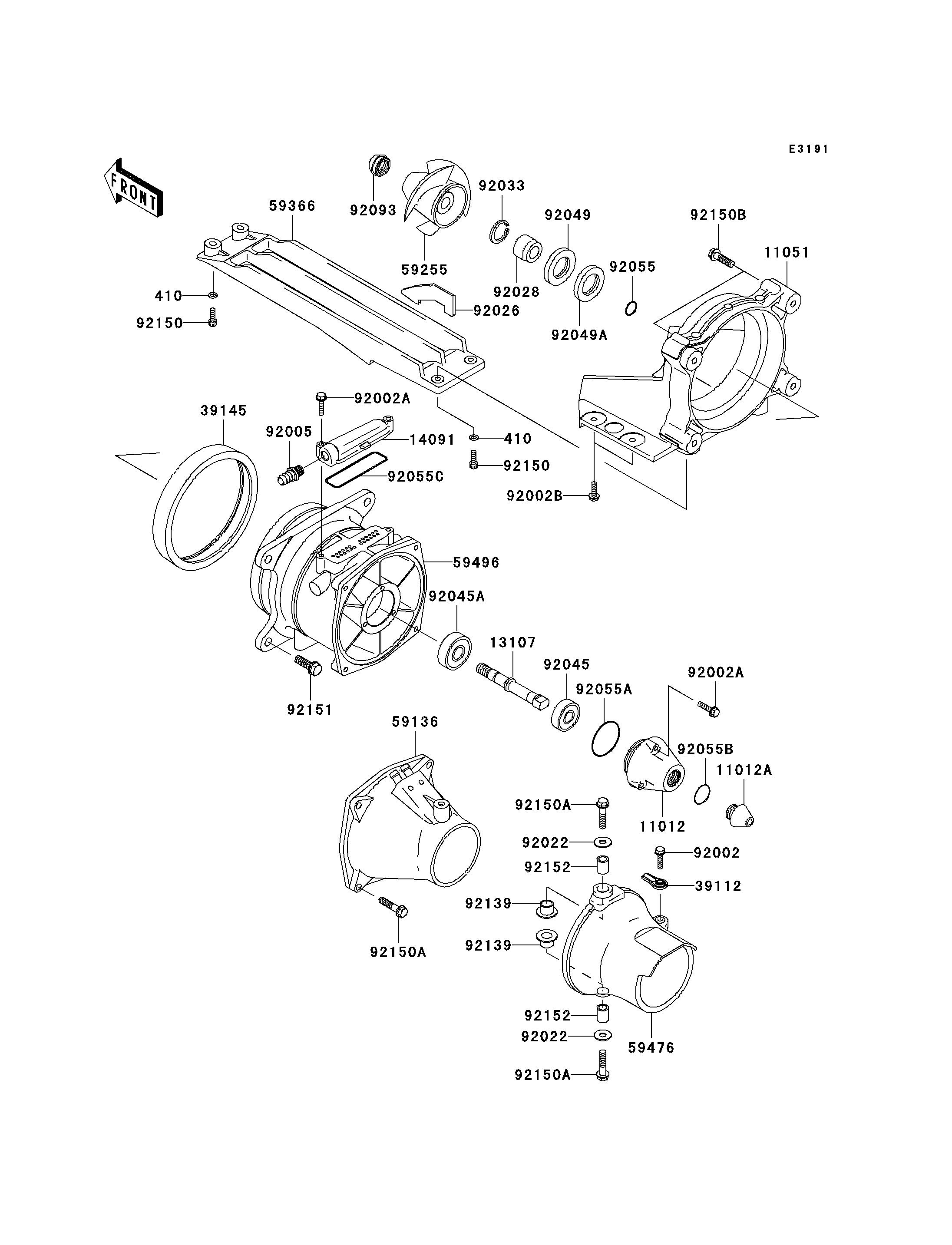

2004 1200 STX-R - Jet Pump(C1)

DOWNLOAD PDF
SELECT A NEW PART
410
410
11012
11012A
11051
13107
14091
39112
39145
59136
59255
59366
59476
59496
92002
92002A
92002A
92002B
92005
92022
92022
92026
92028
92033
92045
92045A
92049
92049A
92055
92055A
92055B
92055C
92093
92139
92139
92150
92150
92150A
92150A
92150A
92150B
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
CAP 11012 11012-3785 1
CAP 11012A 11012-3786 1
BRACKET 11051 11051-3763 1
SHAFT,JETPUMP 13107 13107-3752 1
COVER,VANE GUIDE 14091 14091-3751 1
RODEND-TIE 39112 39112-3703 1
TRIM-SEAL 39145 39145-3742 1
NOZZLE-PUMP 59136 59136-3761 1
IMPELLER-COMP 59255 59255-3721 1
GRATE 59366 59366-3719 1
NOZZLE-STRG 59476 59476-3742 1
VANE-GUIDE 59496 59496-3737 1
BOLT,6X25 92002 92002-3714 1
BOLT,6X30 92002A 92002-3726 5
BOLT,6X20 92002B 92002-3755 4
FITTING 92005 92005-3714 1
WASHER,PLAIN 92022 92022-3026 2
SPACER 92026 92026-3742 3
BUSHING 92028 92028-3756 1
RING-SNAP 92033 92033-3725 1
BEARING-BALL,62022RD 92045 92045-3721 1
BEARING-BALL,6303R-6 92045A 92045-3740 1
SEAL-OIL,SCJ30X50X7 92049 92049-3720 1
SEAL-OIL,SCY30X50X7 92049A 92049-3721 1
RING-O,OIL FILTER 92055 92055-1011 1
RING-O 92055A 92055-3741 1
RING-O 92055B 92055-3744 1
RING-O,70.2X74.0X1.90 92055C 92055-3765 1
SEAL 92093 92093-3749 1
BUSHING 92139 92139-3701 2
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,8X35 92150A 92150-3792 6
BOLT,FLANGED,8X30 92150B 92150-3803 2
BOLT,10X30 92151 92151-3706 4
COLLAR,8.2X11.8X15 92152 92152-3703 2
