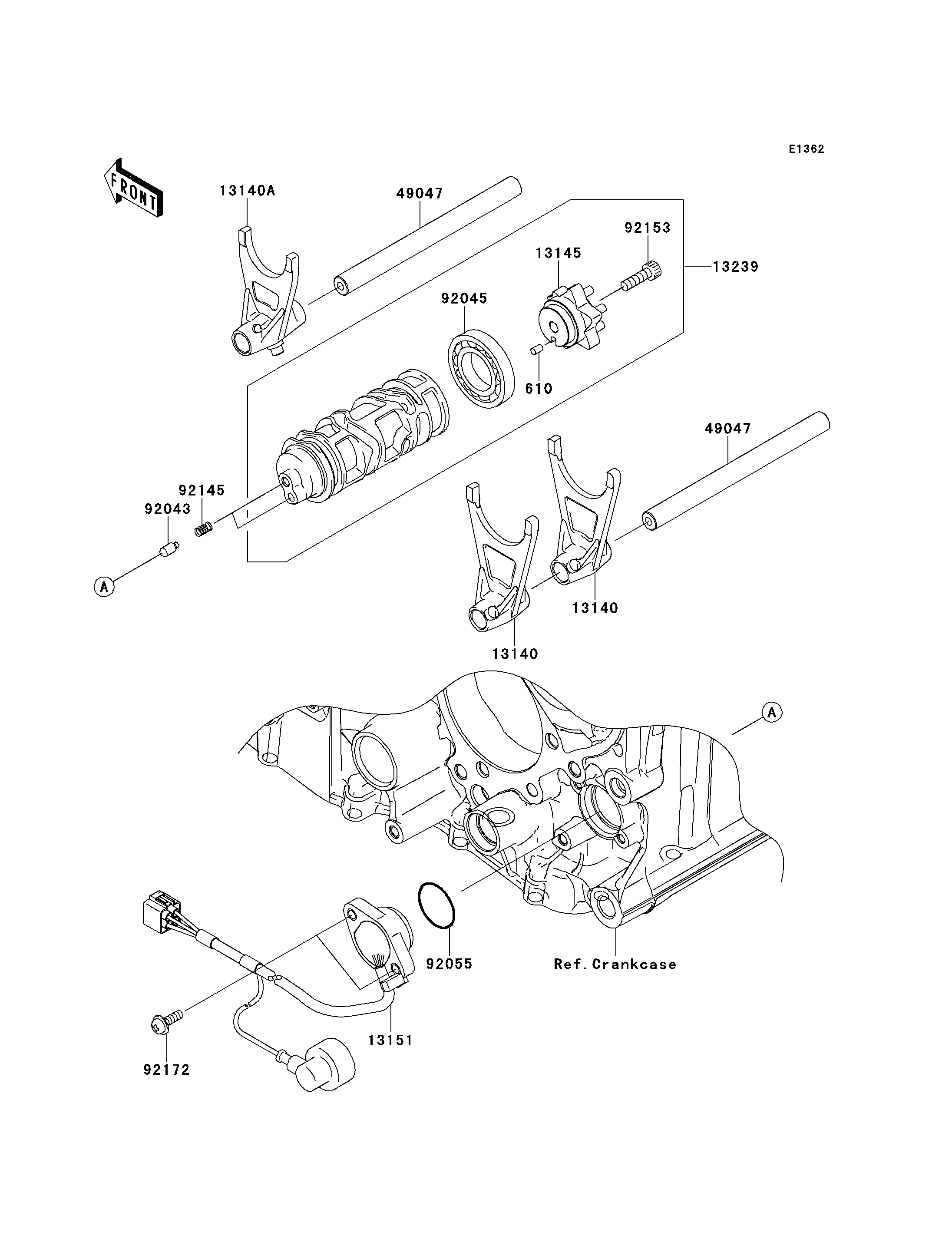

2008 Concours 14 - Gear Change Drum/Shift Fork(s)

610
13140
13140
13140A
13145
13151
13239
49047
49047
92043
92045
92055
92145
92153
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X6 610 610A0406 1
FORK-SHIFT,OUTPUT 13140 13140-0030 2
FORK-SHIFT,INPUT 13140A 13140-0046 1
CAM-CHANGE DRUM 13145 13145-0023 1
SWITCH-COMP,NEUTRAL 13151 13151-0031 1
DRUM-ASSY-CHANGE 13239 13239-0023 1
ROD-SHIFT 49047 49047-0023 2
PIN 92043 92043-1654 2
BEARING-BALL,16005 92045 92045-1045 1
RING-O,27.7X2.4 92055 92055-091 1
SPRING 92145 92145-1414 2
BOLT,SOCKET,6X20 92153 92153-1031 1
SCREW-PAN-WS-CROS,5X16 92172 92172-0270 2
