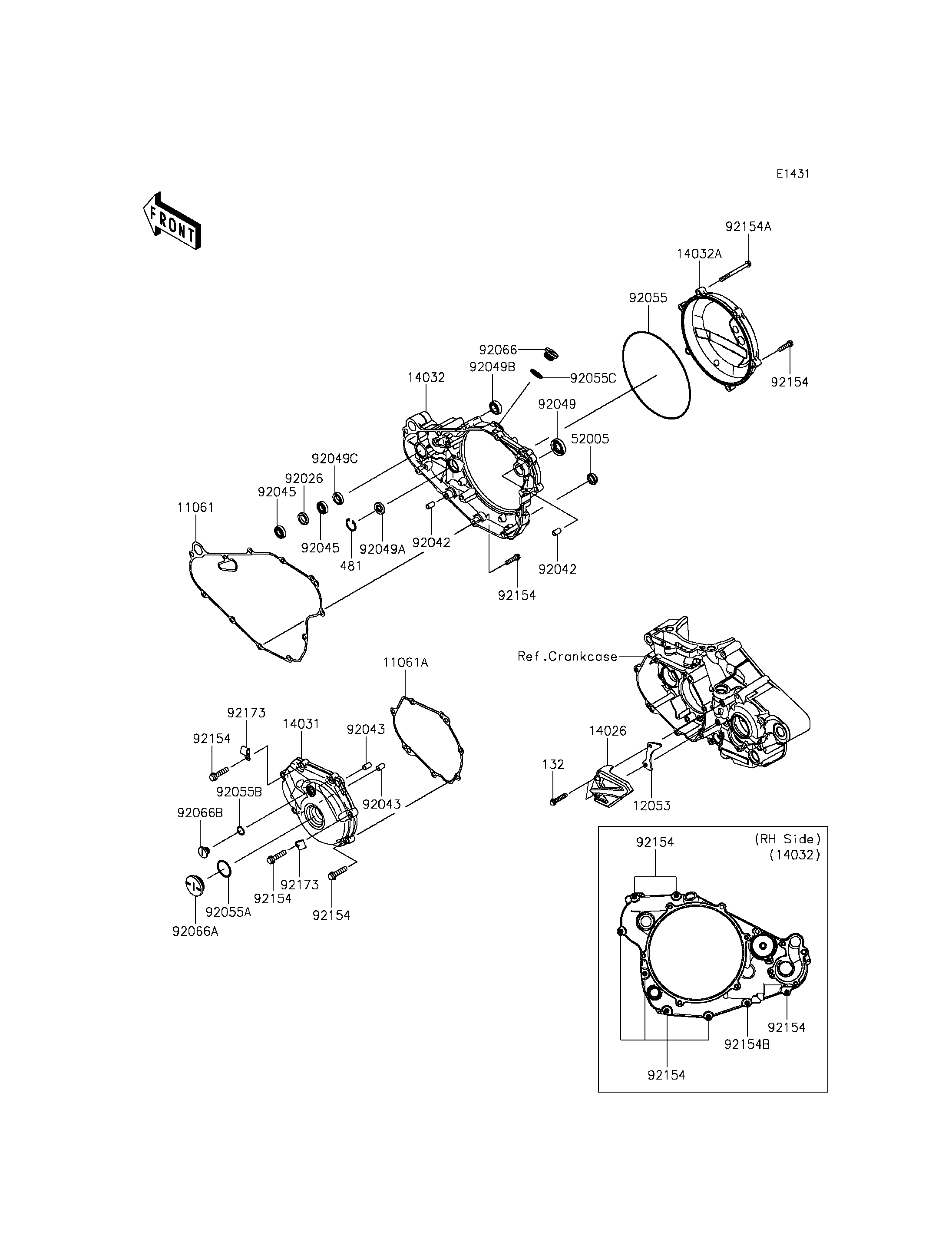

2016 KX™450F - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
481
11061
11061A
12053
14026
14031
14032
14032A
52005
92026
92042
92042
92043
92043
92045
92045
92049
92049A
92049B
92049C
92055
92055A
92055B
92055C
92066
92066A
92066B
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154B
92173
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
CIRCLIP-TYPE-C,22MM 481 481J2200 1
GASKET,CLUTCH COVER 11061 11061-0981 1
GASKET,GENERATOR 11061A 11061-0982 1
GUIDE-CHAIN 12053 12053-0227 1
COVER-CHAIN 14026 14026-0120 1
COVER-GENERATOR 14031 14031-0604 1
COVER-CLUTCH,INNER 14032 14032-0612 1
COVER-CLUTCH,OUTER 14032A 14032-0613 1
GAUGE,OIL LEVEL 52005 52005-0019 1
SPACER,16X22X4.3 92026 92026-0064 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,8X14 92043 92043-1567 2
BEARING-BALL,6900C3 92045 92045-0039 2
SEAL-OIL,SB18307 92049 92049-013 1
SEAL-OIL,TVCX13X22X5.5 92049A 92049-0762 1
SEAL-OIL,12X24X7 92049B 92049-0782 1
SEAL-OIL,12X22X5 92049C 92049-0783 1
RING-O,163X1.9 92055 92055-0833 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,13.0X1.9 92055B 92055-1011 1
RING-O,20X2 92055C 92055-1146 1
PLUG,18X9 92066 92066-0833 1
PLUG,30X8 92066A 92066-0834 1
PLUG,12X9.1 92066B 92066-0835 1
BOLT,FLANGED,6X25 92154 92154-0520 19
BOLT,FLANGED,6X65 92154A 92154-1929 1
BOLT,FLANGED,6X30 92154B 92154-1980 1
CLAMP,HARNESS 92173 92173-1368 3
