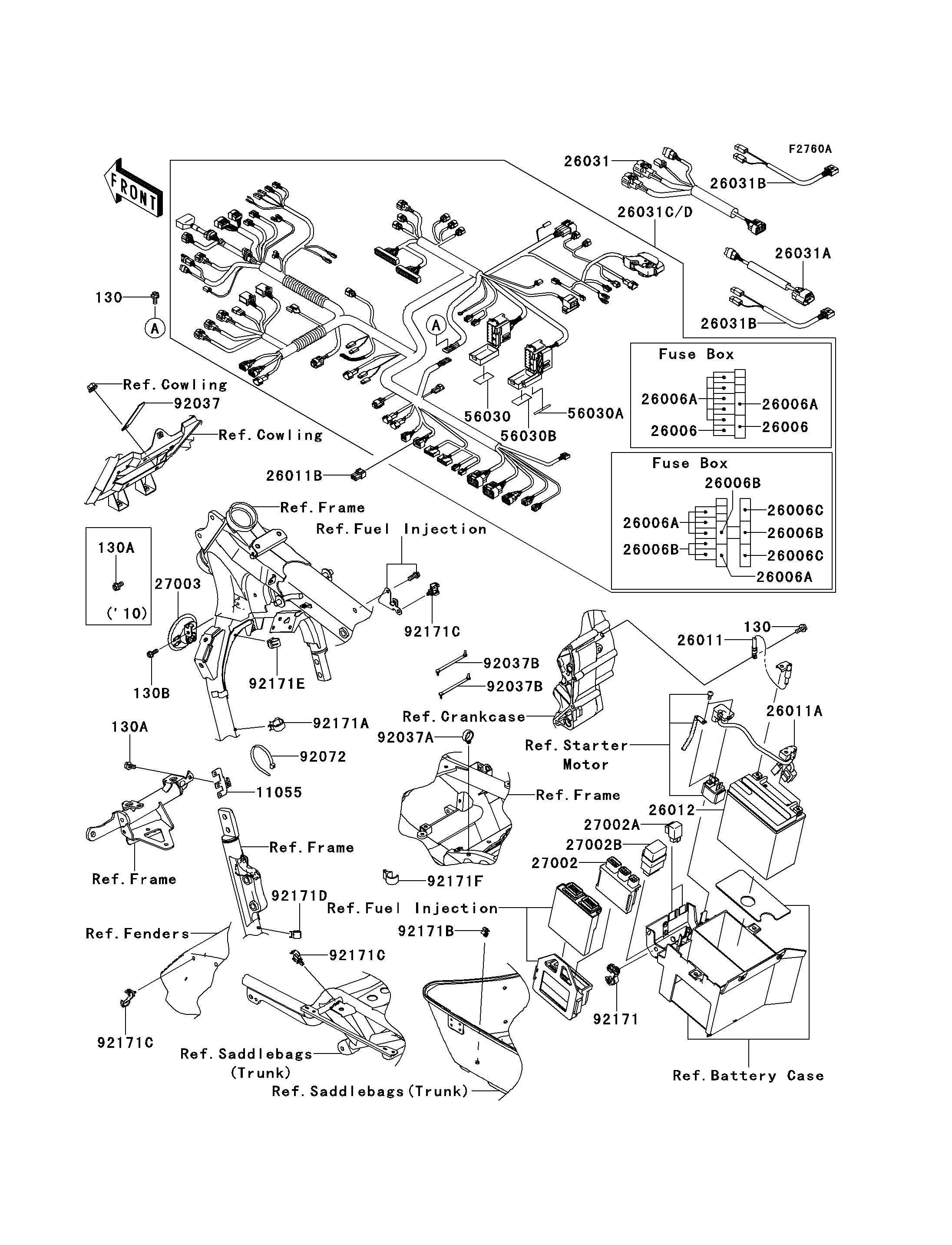

2011 VULCAN® 1700 VOYAGER® ABS - Chassis Electrical Equipment(BAF/BBF)
130
130
130A
130A
130B
11055
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006C
26006C
26011
26011A
26011B
26012
26031
26031A
26031B
26031B
26031D
27002
27002A
27002B
27003
56030
56030A
56030B
92037
92037A
92037B
92037B
92072
92171
92171A
92171B
92171C
92171C
92171C
92171D
92171E
92171F
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 | ||
BOLT-FLANGED,6X12 | 130A | 130BB0612 | 1 | ||
BOLT-FLANGED,6X18 | 130B | 130BB0618 | 1 | ||
BRACKET,CONNECTOR | 11055 | 11055-0613 | 1 | ||
FUSE,MINI BLADE,5A,TAN | 26006 | 26006-1077 | 2 | ||
FUSE,MINI BLADE,10A,RED | 26006A | 26006-1078 | 10 | ||
FUSE,MINI BLADE,20A,YELLOW | 26006B | 26006-1079 | 4 | ||
FUSE,MINI BLADE,30A,GREEN | 26006C | 26006-1080 | 2 | ||
WIRE-LEAD,BATTERY(-) | 26011 | 26011-0180 | 1 | ||
WIRE-LEAD,BATTERY(+) | 26011A | 26011-0193 | 1 | ||
WIRE-LEAD | 26011B | 26011-0275 | 1 | ||
BATTERY,MF,FTZ16-BS,12V 18AH | 26012 | 26012-1371 | 1 | ||
HARNESS,RR,SUB | 26031 | 26031-0646 | 1 | ||
HARNESS,HIGH MOUNT LAMP | 26031A | 26031-0678 | 1 | ||
HARNESS,SPEAKER | 26031B | 26031-0778 | 2 | ||
HARNESS,MAIN | 26031D | 26031-1165 | 1 | ||
RELAY-ASSY | 27002 | 27002-0007 | 1 | ||
RELAY-ASSY | 27002A | 27002-1062 | 1 | ||
RELAY-ASSY,SIGNAL LAMP | 27002B | 27002-1113 | 1 | ||
HORN | 27003 | 27003-0055 | 1 | ||
LABEL,FUSE BOX | 56030 | 56030-0177 | 1 | ||
LABEL,FUSE BOX | 56030A | 56030-0189 | 1 | ||
LABEL,FUSE BOX | 56030B | 56030-0293 | 1 | ||
CLAMP,HARNESS,L=100 | 92037 | 92037-1636 | 1 | ||
CLAMP,HOSE | 92037A | 92037-1827 | 1 | ||
CLAMP,SPEED,L=80.5 | 92037B | 92037-1903 | 2 | ||
BAND,L=202 | 92072 | 92072-1195 | 1 | ||
CLAMP,CLIP,DIA=20 | 92171 | 92171-0068 | 1 | ||
CLAMP,DIA=20 | 92171A | 92171-0081 | 1 | ||
CLAMP | 92171B | 92171-0834 | 1 | ||
CLAMP,DIA=13 | 92171C | 92171-1415 | 3 | ||
CLAMP,DIA=10 | 92171D | 92171-1423 | 1 | ||
CLAMP,DIA=15 | 92171E | 92171-1424 | 1 | ||
CLAMP | 92171F | 92171-1460 | 1 |
