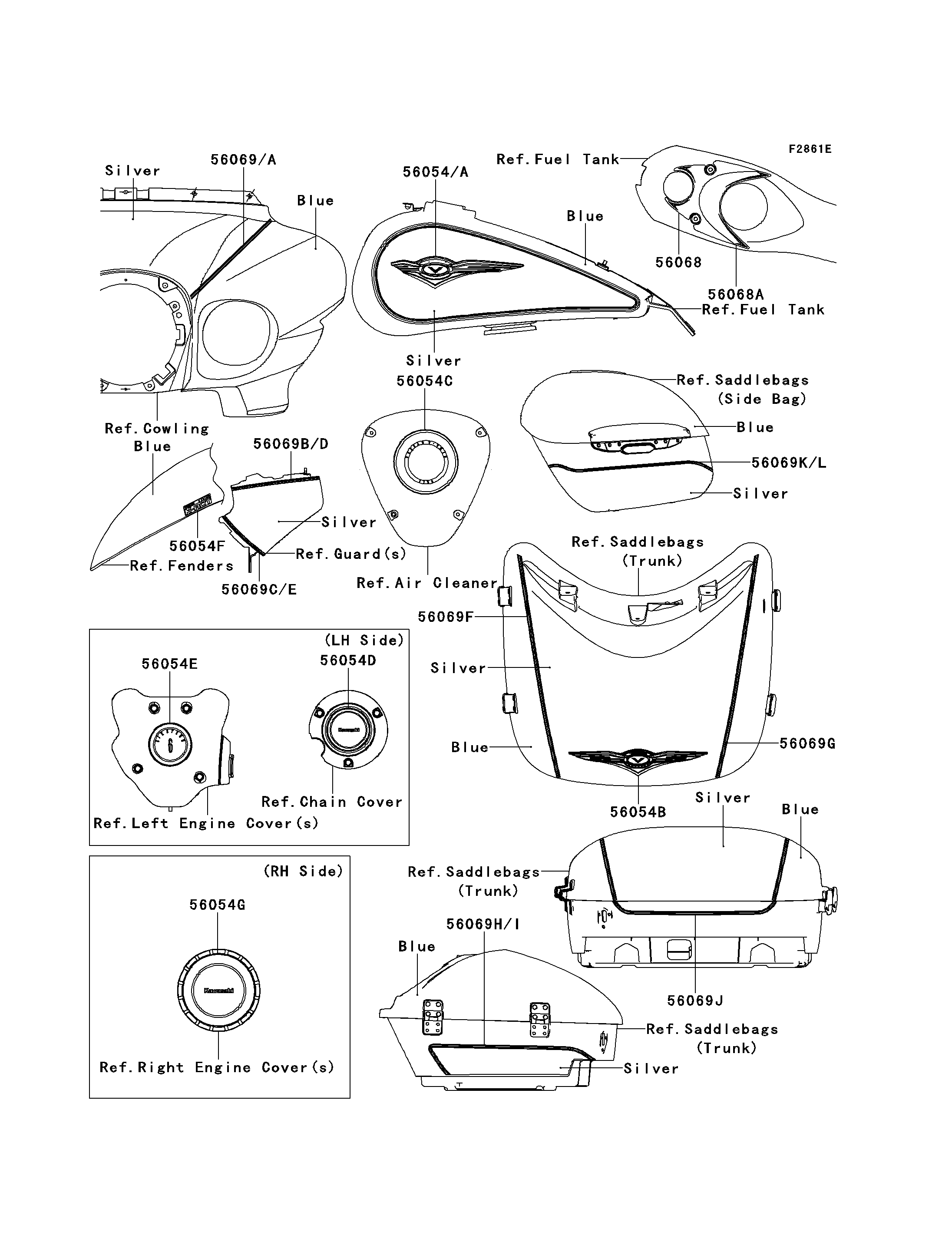

2011 VULCAN® 1700 VOYAGER® ABS - Decals(Blue/Silver)(BBF)(CA,US)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
MARK,FUEL TANK,LH | 56054 | 56054-0300 | 1 | CAUS | |
MARK,FUEL TANK,RH | 56054A | 56054-0301 | 1 | CAUS | |
MARK,REAR TRUNK | 56054B | 56054-0302 | 1 | CAUS | |
MARK,AIR CLEANER COVER | 56054C | 56054-0303 | 2 | CAUS | |
MARK,PULLEY COVER | 56054D | 56054-0304 | 1 | CAUS | |
MARK,GENERATOR COVER | 56054E | 56054-0305 | 1 | CAUS | |
MARK,FR FENDER,ABS | 56054F | 56054-0456 | 2 | CAUS | |
MARK,CLUTCH COVER | 56054G | 56054-0463 | 1 | CAUS | |
PATTERN,TANK COVER,UPP | 56068 | 56068-1881 | 1 | CAUS | |
PATTERN,TANK COVER,LWR | 56068A | 56068-1882 | 1 | CAUS | |
PATTERN,FR COWLING,LH | 56069 | 56069-1077 | 1 | CAUS | |
PATTERN,FR COWLING,RH | 56069A | 56069-1078 | 1 | CAUS | |
PATTERN,LEG SHIELD,UPP,LH | 56069B | 56069-1079 | 1 | CAUS | |
PATTERN,LEG SHIELD,LWR,LH | 56069C | 56069-1080 | 1 | CAUS | |
PATTERN,LEG SHIELD,UPP,RH | 56069D | 56069-1081 | 1 | CAUS | |
PATTERN,LEG SHIELD,LWR,RH | 56069E | 56069-1082 | 1 | CAUS | |
PATTERN,REAR TRUNK,UPP,LH | 56069F | 56069-1083 | 1 | CAUS | |
PATTERN,REAR TRUNK,UPP,RH | 56069G | 56069-1084 | 1 | CAUS | |
PATTERN,REAR TRUNK,LWR,LH | 56069H | 56069-1085 | 1 | CAUS | |
PATTERN,REAR TRUNK,LWR,RH | 56069I | 56069-1086 | 1 | CAUS | |
PATTERN,REAR TRUNK,LWR,CNT | 56069J | 56069-1087 | 1 | CAUS | |
PATTERN,SIDE BAG,LH | 56069K | 56069-1088 | 1 | CAUS | |
PATTERN,SIDE BAG,RH | 56069L | 56069-1089 | 1 | CAUS |
