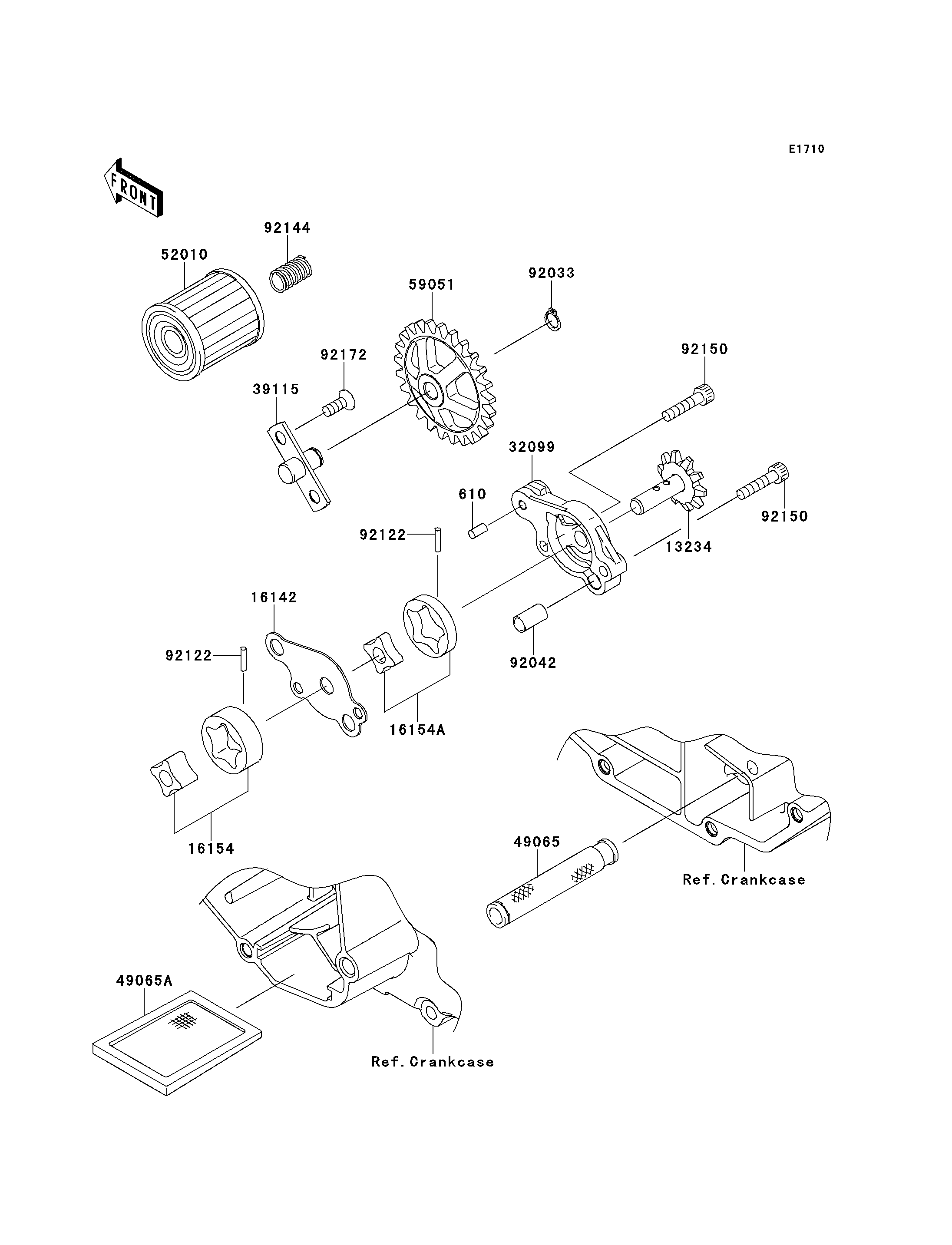

2013 KX™250F - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
610
13234
16142
16154
16154A
32099
39115
49065
49065A
52010
59051
92033
92042
92122
92122
92144
92150
92150
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
SHAFT-COMP,OIL PUMP 13234 13234-0045 1
COVER-PUMP 16142 16142-0003 1
ROTOR-PUMP,SCAVENGE 16154 16154-0090 1
ROTOR-PUMP,FEED 16154A 16154-0093 1
CASE,OIL PUMP 32099 32099-0051 1
SHAFT-IDLER,OIL PUMP 39115 39115-0007 1
FILTER-OIL 49065 49065-0017 1
FILTER-OIL 49065A 49065-0023 1
ELEMENT-OIL FILTER 52010 52010-0001 1
GEAR-SPUR,PUMP IDLER 59051 59051-0009 1
RING-SNAP,8MM 92033 92033-1039 1
PIN,DOWEL,6.3X8X14 92042 92042-007 1
ROLLER,2.5X11.8 92122 92122-0021 2
SPRING 92144 92144-1761 1
BOLT,SOCKET,5X22 92150 92150-1491 2
SCREW,6X14 92172 92172-0087 2
