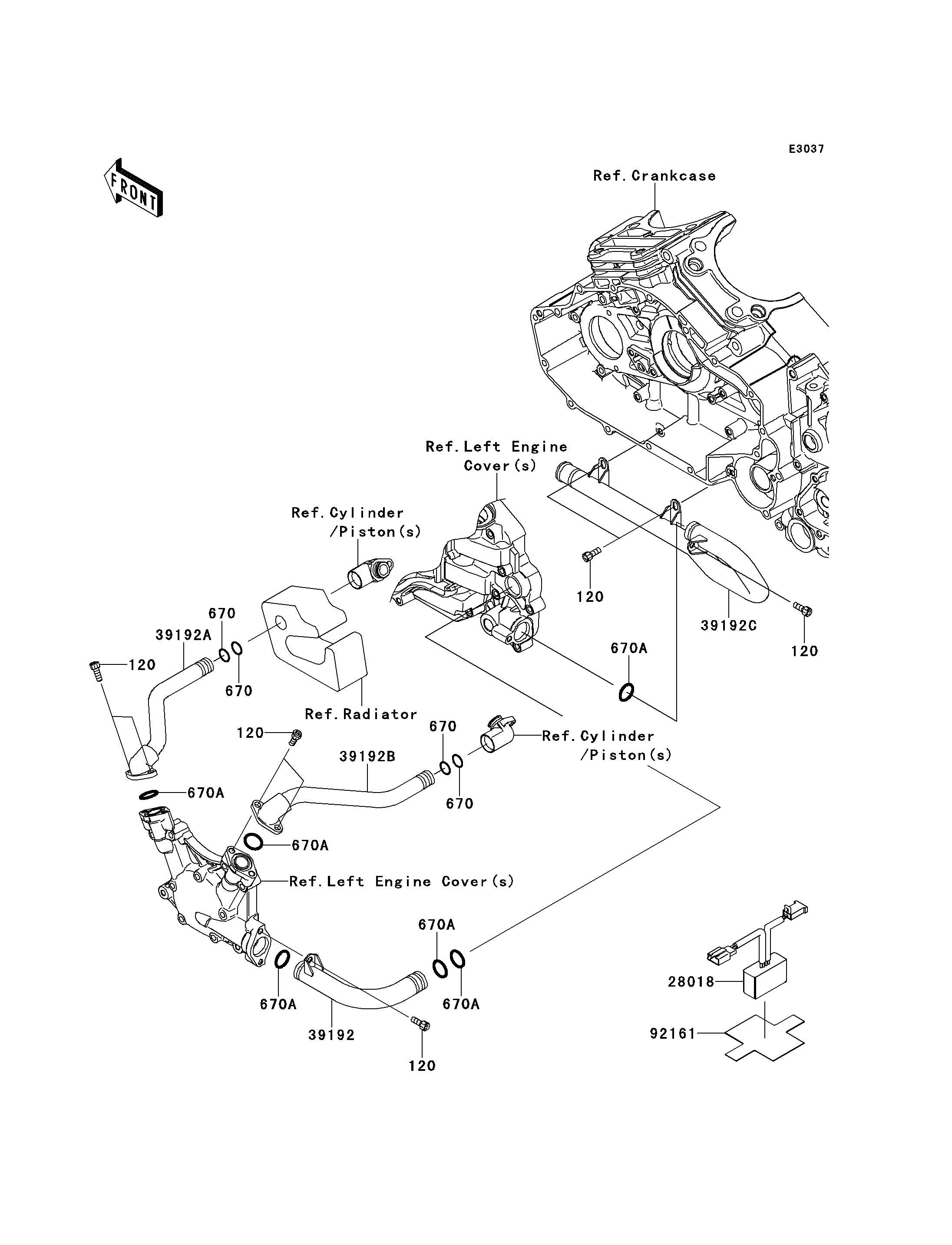

2013 VULCAN® 1700 VOYAGER® - Water Pipe
120
120
120
120
120
670
670
670
670
670A
670A
670A
670A
670A
670A
28018
39192
39192A
39192B
39192C
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120CA0616 | 8 | ||
| O RING,14MM | 670 | 670B2014 | 4 | ||
| O RING,18MM | 670A | 670B2018 | 6 | ||
| RESISTOR | 28018 | 28018-0554 | 1 | ||
| PIPE-WATER,COVER-W/P | 39192 | 39192-0094 | 1 | ||
| PIPE-WATER,COVER-FR CYL. | 39192A | 39192-0095 | 1 | ||
| PIPE-WATER,COVER-RR CYL. | 39192B | 39192-0096 | 1 | ||
| PIPE-WATER,W/P INLET | 39192C | 39192-0133 | 1 | ||
| DAMPER | 92161 | 92161-1458 | 1 |
