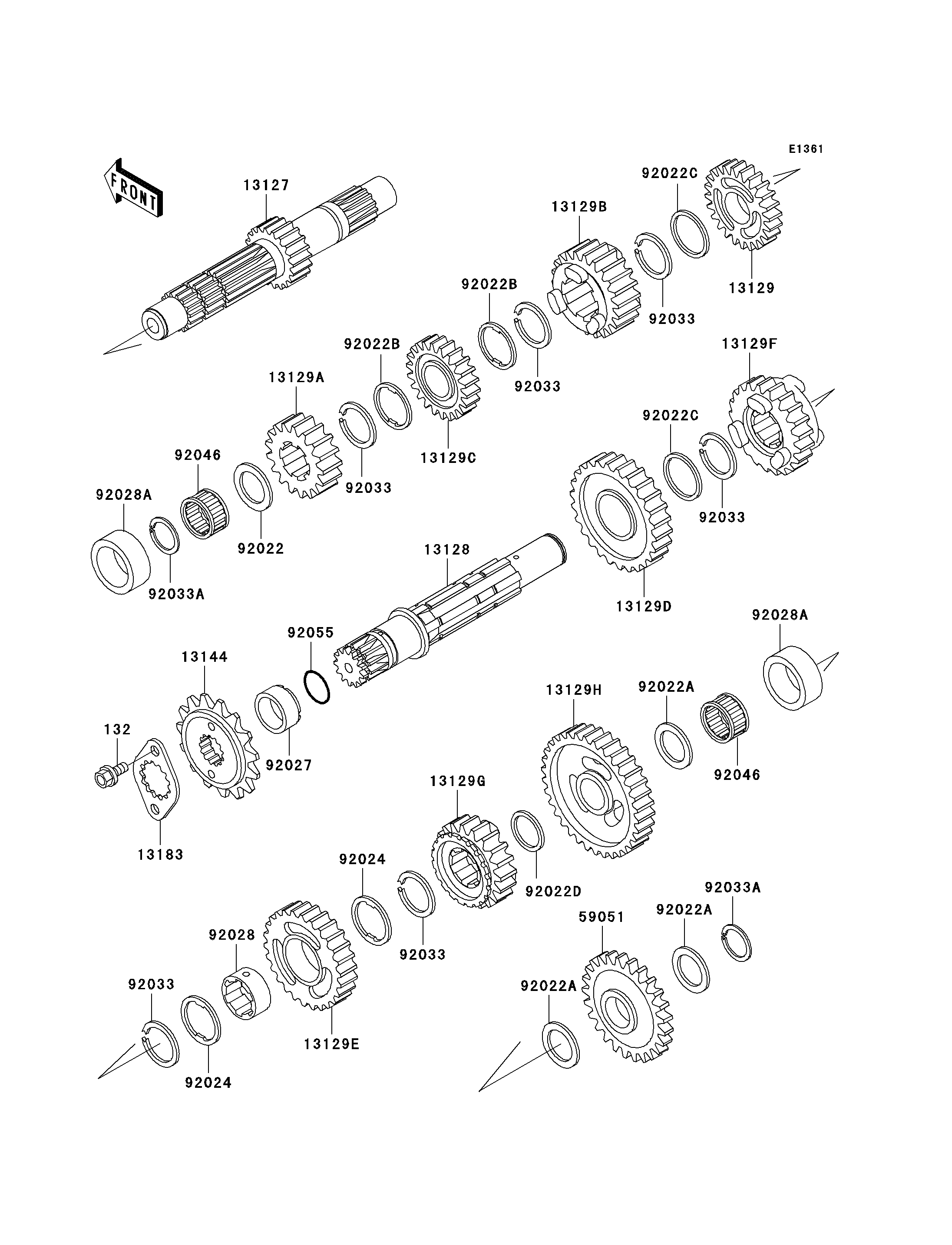

1996 KLR650 - Transmission(-KL650AE032209)

DOWNLOAD PDF
SELECT A NEW PART
132
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13129H
13144
13183
59051
92022
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92022D
92024
92024
92027
92028
92028A
92028A
92033
92033
92033
92033
92033
92033
92033A
92033A
92046
92046
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0608 2
SHAFT-TRANSMISSION INPUT,15T 13127 13127-1147 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1175 1
GEAR,INPUT TOP,24T 13129 13129-1410 1
GEAR,INPUT 2ND,17T 13129A 13129-1518 1
GEAR,INPUT 3RD,22T 13129B 13129-1519 1
GEAR,INPUT 4TH,22T 13129C 13129-1520 1
GEAR,OUTPUT 2ND,26T 13129D 13129-1523 1
GEAR,OUTPUT 3RD,26T 13129E 13129-1524 1
GEAR,OUTPUT 4TH,21T 13129F 13129-1525 1
GEAR,OUTPUT TOP,19T 13129G 13129-1575 1
GEAR,OUTPUT LOW,34T 13129H 13129-1838 1
SPROCKET-OUTPUT,15T 13144 13144-1163 1
PLATE,SPROCKET 13183 13183-1525 1
GEAR-SPUR,IDLE 59051 59051-1102 1
WASHER,20.5X30X1,STEEL 92022 92022-112 1
WASHER,20.3X29X0.5 92022A 92022-1479 3
WASHER,TOOTHED,25.3X29.5X0.5 92022B 92022-1482 2
WASHER,25.3X30X0.5 92022C 92022-159 2
WASHER,20.5X25.5X0.5 92022D 92022-252 1
WASHER,TOOTHED,22.5X31X0.5 92024 92024-038 2
COLLAR,25X32X15.3 92027 92027-1800 1
BUSHING,OUTPUT 3RD GEAR 92028 92028-1299 1
BUSHING,26X35X14 92028A 92028-131 2
RING-SNAP,24MM 92033 92033-026 6
RING-SNAP,18MM 92033A 92033-029 2
BEARING-NEEDLE,KT202614 92046 92046-1170 2
RING-O,21.5MM 92055 92055-1293 1
