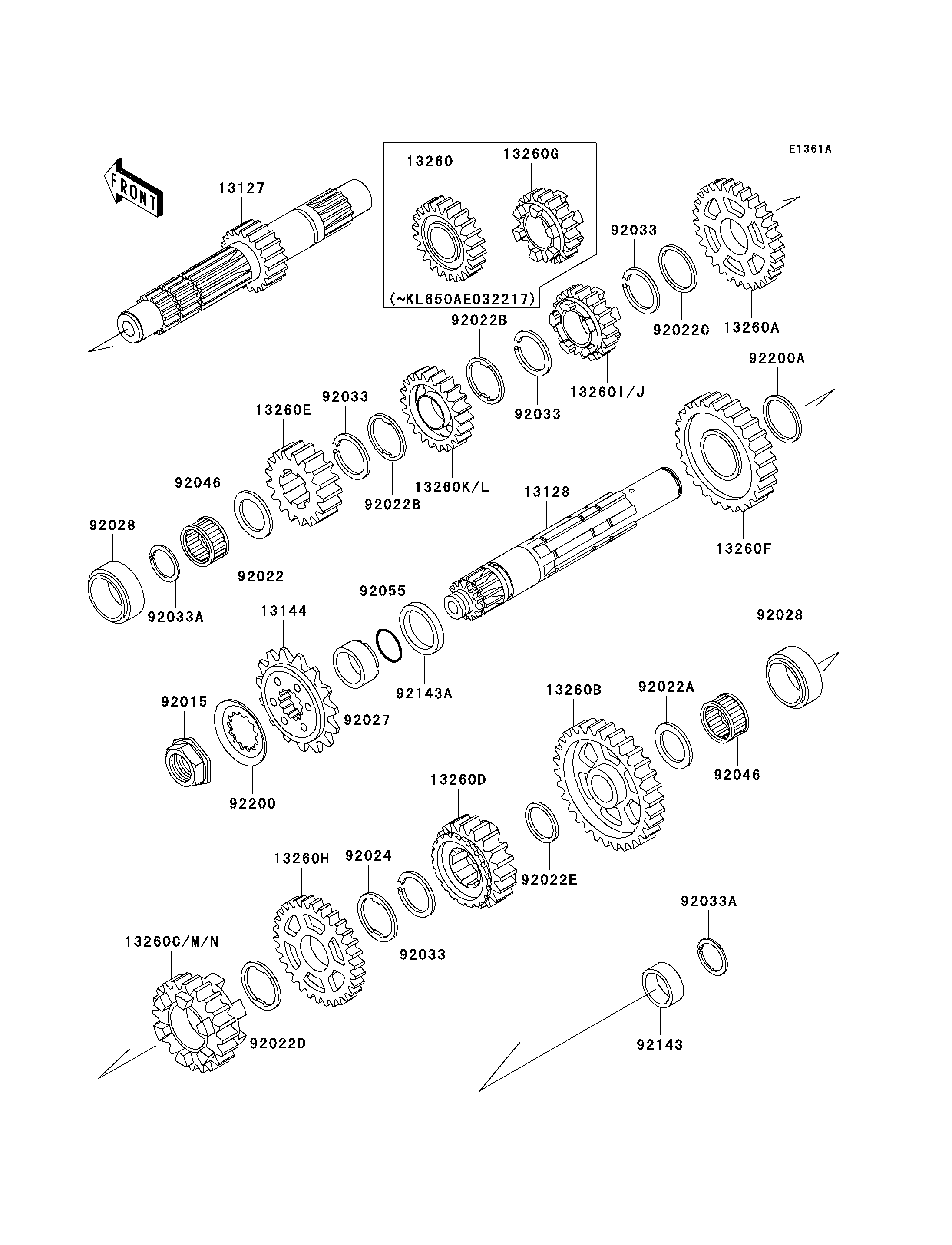

1997 KLR650 - Transmission(KL650AE032210-)
13127
13127
13128
13128
13144
13144
13260A
13260A
13260B
13260B
13260D
13260D
13260E
13260E
13260F
13260F
13260H
13260H
13260I
13260I
13260K
13260K
13260M
13260M
92015
92015
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92022C
92022C
92022D
92022D
92022E
92022E
92024
92024
92027
92027
92028
92028
92028
92028
92033
92033
92033
92033
92033
92033
92033
92033
92033A
92033A
92033A
92033A
92046
92046
92046
92046
92055
92055
92143
92143
92143A
92143A
92200
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-1147 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1203 | 1 | ||
SPROCKET-OUTPUT | 13144 | 13144-1253 | 1 | ||
GEAR,INPUT TOP,24T | 13260A | 13260-1326 | 1 | ||
GEAR,OUTPUT LOW,34T | 13260B | 13260-1327 | 1 | ||
GEAR,OUTPUT TOP,19T | 13260D | 13260-1331 | 1 | ||
GEAR,INPUT 2ND,18T | 13260E | 13260-1464 | 1 | ||
GEAR,OUTPUT 2ND,26T | 13260F | 13260-1465 | 1 | ||
GEAR,OUTPUT 3RD,25T | 13260H | 13260-1467 | 1 | ||
GEAR,INPUT 3RD,22T | 13260I | 13260-1518 | 1 | ||
GEAR,INPUT 4TH,22T | 13260K | 13260-1519 | 1 | ||
GEAR,OUTPUT 4TH,21T | 13260M | 13260-1520 | 1 | ||
NUT,20MM | 92015 | 92015-1963 | 1 | ||
WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
WASHER,20.3X29X0.5 | 92022A | 92022-1479 | 1 | ||
WASHER,TOOTHED,25.3X29.5X0.5 | 92022B | 92022-1482 | 2 | ||
WASHER,25.3X30X0.5 | 92022C | 92022-159 | 1 | ||
WASHER,25.3X32X0.5 | 92022D | 92022-225 | 1 | ||
WASHER,20.5X25.5X0.5 | 92022E | 92022-252 | 1 | ||
WASHER,TOOTHED,22.5X31X0.5 | 92024 | 92024-038 | 1 | ||
COLLAR,25X32X15.3 | 92027 | 92027-1800 | 1 | ||
BUSHING,26X35X14 | 92028 | 92028-131 | 2 | ||
RING-SNAP,24MM | 92033 | 92033-026 | 4 | ||
RING-SNAP,18MM | 92033A | 92033-029 | 2 | ||
BEARING-NEEDLE,KT202614 | 92046 | 92046-1170 | 2 | ||
RING-O,21.5MM | 92055 | 92055-1293 | 1 | ||
COLLAR,20X25X9.5 | 92143 | 92143-1624 | 1 | ||
COLLAR,25X32X3.0 | 92143A | 92143-1721 | 1 | ||
WASHER | 92200 | 92200-1065 | 1 | ||
WASHER,2ND GEAR | 92200A | 92200-1170 | 1 |
SHAFT-TRANSMISSION INPUT,15T | |
REF # | 13127 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION OUTPUT | |
REF # | 13128 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-OUTPUT | |
REF # | 13144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT TOP,24T | |
REF # | 13260A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT LOW,34T | |
REF # | 13260B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT TOP,19T | |
REF # | 13260D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 2ND,18T | |
REF # | 13260E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 2ND,26T | |
REF # | 13260F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 3RD,25T | |
REF # | 13260H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 3RD,22T | |
REF # | 13260I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 4TH,22T | |
REF # | 13260K |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 4TH,21T | |
REF # | 13260M |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.5X30X1,STEEL | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.3X29X0.5 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,TOOTHED,25.3X29.5X0.5 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,25.3X30X0.5 | |
REF # | 92022C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,25.3X32X0.5 | |
REF # | 92022D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.5X25.5X0.5 | |
REF # | 92022E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,TOOTHED,22.5X31X0.5 | |
REF # | 92024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,25X32X15.3 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,26X35X14 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,24MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-SNAP,18MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,KT202614 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,21.5MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,20X25X9.5 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,25X32X3.0 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,2ND GEAR | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
