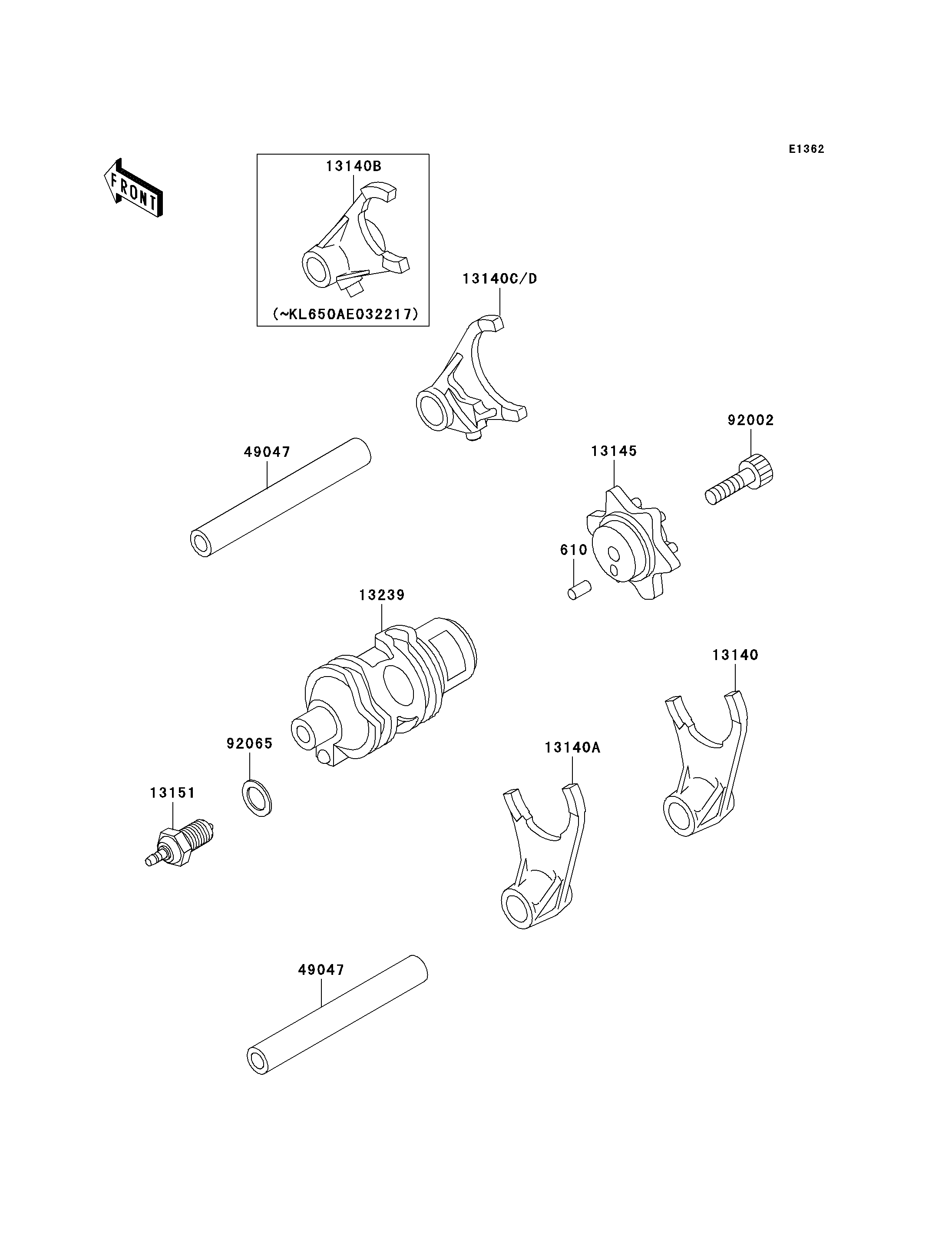

610
13140
13140A
13140C
13145
13151
13239
49047
49047
92002
92065
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X10 610 610A0410 1
FORK-SHIFT,LOW 13140 13140-1023 1
FORK-SHIFT,2ND&3RD 13140A 13140-1024 1
FORK-SHIFT,4TH&TOP 13140C 13140-1257 1
CAM-CHANGE DRUM 13145 13145-1051 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
DRUM-ASSY-CHANGE 13239 13239-1103 1
ROD-SHIFT,L=93.7 49047 49047-1003 2
BOLT,SOCKET,6X25 92002 92002-1696 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
