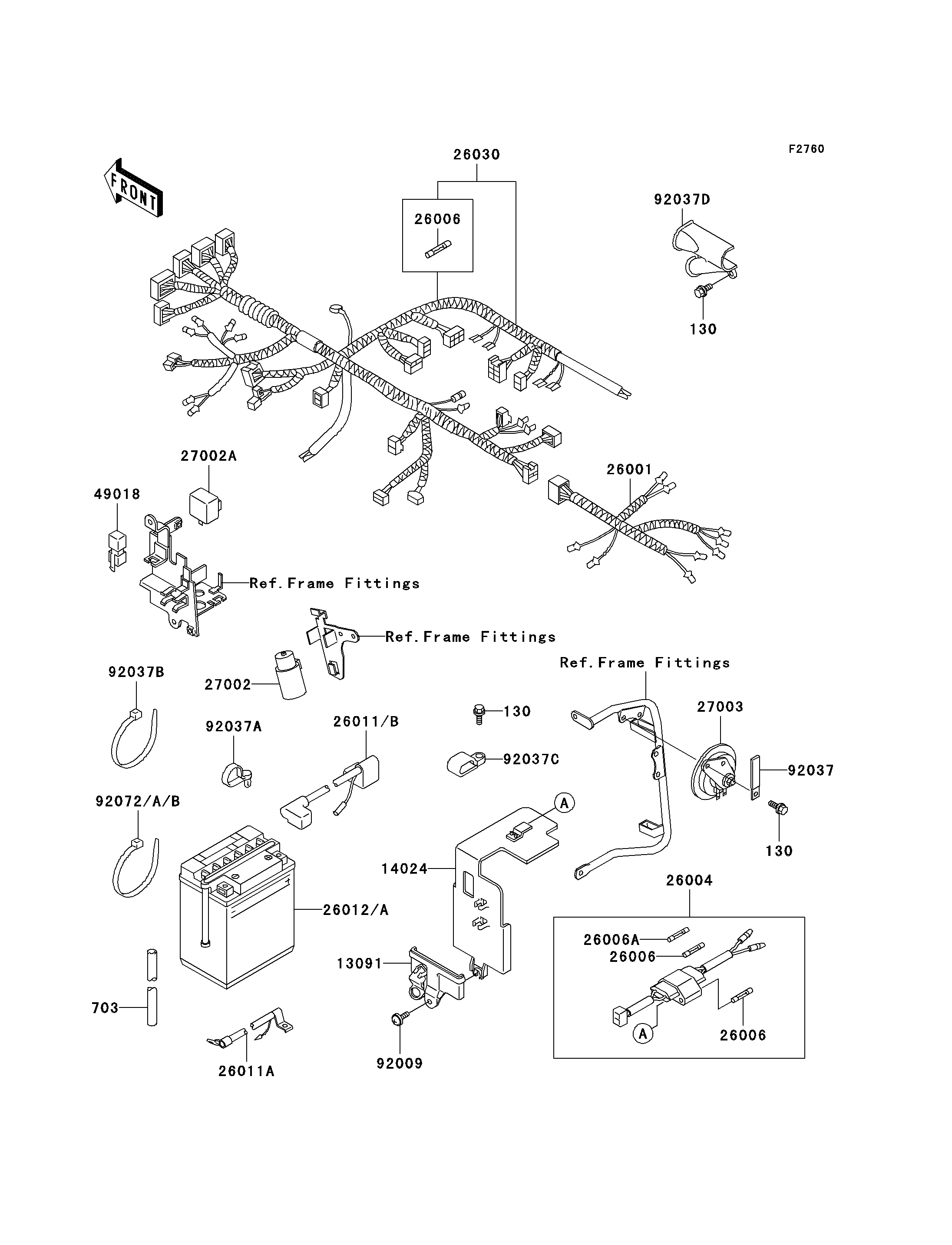

1998 KLR650 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
703
13091
14024
26001
26004
26006
26006
26006
26006A
26011A
26011B
26012A
26030
27002
27002A
27003
49018
92009
92037
92037A
92037B
92037C
92037D
92072
92072A
92072B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 5
TUBE-RUBBER,8X12X580 703 703A08580 1
HOLDER,BATTERY COVER 13091 13091-1484 1
COVER,BATTERY 14024 14024-1375 1
HARNESS,RR 26001 26001-1822 1
FUSE-ASSY 26004 26004-1076 1
FUSE,10A,L=30 26006 26006-1002 4
FUSE,20A,L=30 26006A 26006-1056 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1387 1
WIRE-LEAD,BATTERY(+) 26011B 26011-1623 1
BATTERY,FB14L-A2,12V 14AH 26012A 26012-1349 1
HARNESS,MAIN 26030 26030-1008 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1053 1
HORN 27003 27003-1273 1
DIODE 49018 49018-1052 1
SCREW,6X10 92009 92009-1402 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 3
CLAMP,SPEED,L=58 92037A 92037-1163 2
CLAMP 92037B 92037-1173 2
CLAMP 92037C 92037-1608 1
CLAMP,HARNESS 92037D 92037-1906 1
BAND,L=185 92072 92072-1195 2
BAND,L=365 92072A 92072-1197 6
BAND,L=250 92072B 92072-1237 5
