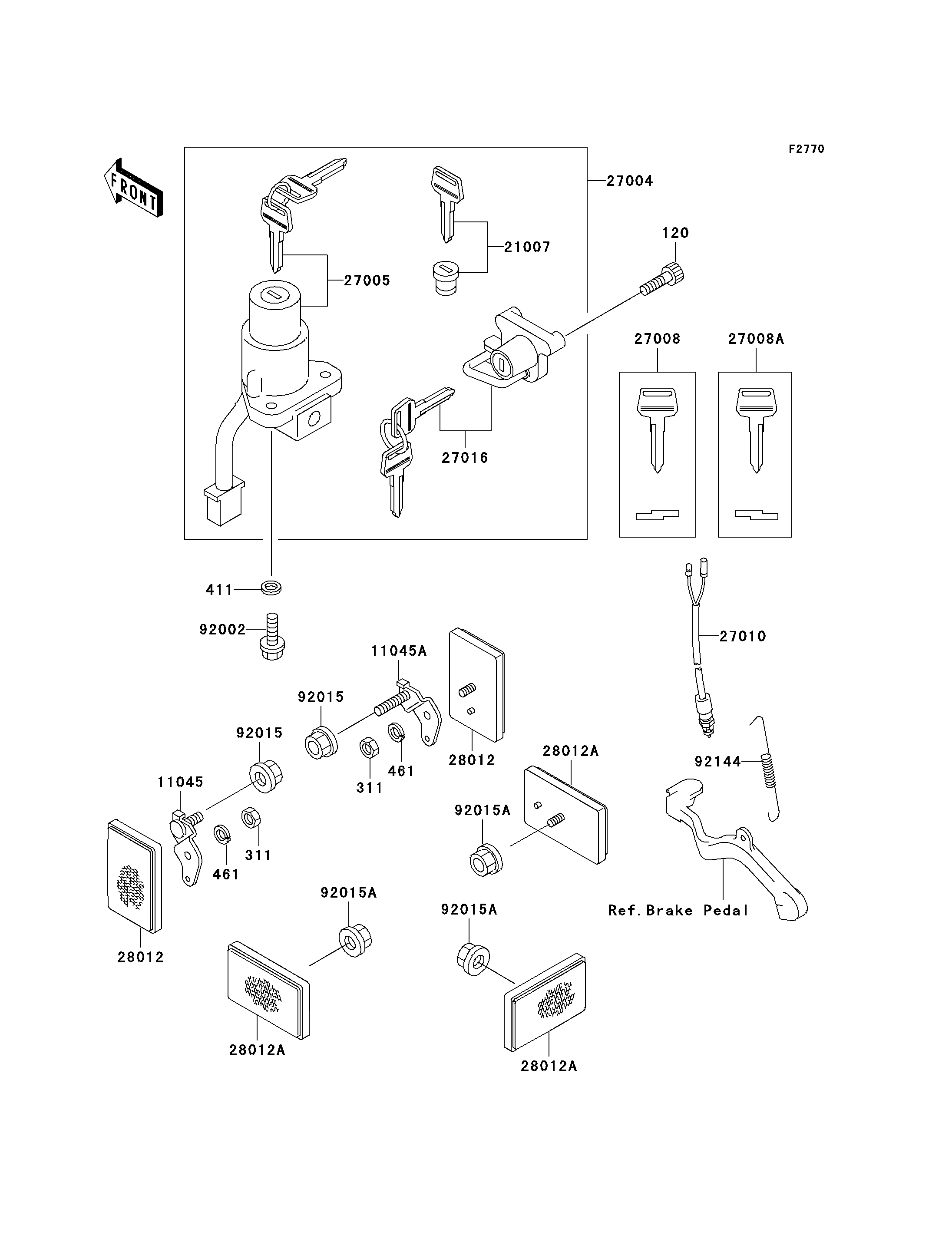

1998 KLR650 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
311
311
411
461
461
11045
11045A
21007
27004
27005
27008
27008A
27010
27016
28012
28012
28012A
28012A
28012A
92002
92015
92015
92015A
92015A
92015A
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0612 2
NUT-HEX 311 311B0500 2
WASHER-PLAIN,6MM 411 411E0600 2
WASHER-SPRING,5MM 461 461F0500 2
BRACKET,REFLECTOR,FR,LH 11045 11045-1354 1
BRACKET,REFLECTOR,FR,RH 11045A 11045-1355 1
ROTOR,LOCK,TANK CAP 21007 21007-5022 1
SWITCH-ASSY 27004 27004-5322 1
SWITCH-ASSY-IGNITION 27005 27005-1129 1
KEY-LOCK,BLANK,#A 27008 27008-1034 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1035 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1019 1
LOCK-ASSY,HELMET 27016 27016-5075 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX,RR 28012A 28012-1078 3
BOLT,TORX,6X16 92002 92002-1333 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,FLANGED,5MM 92015A 92015-1259 3
SPRING,REAR BRAKE SWITCH 92144 92144-1093 1
