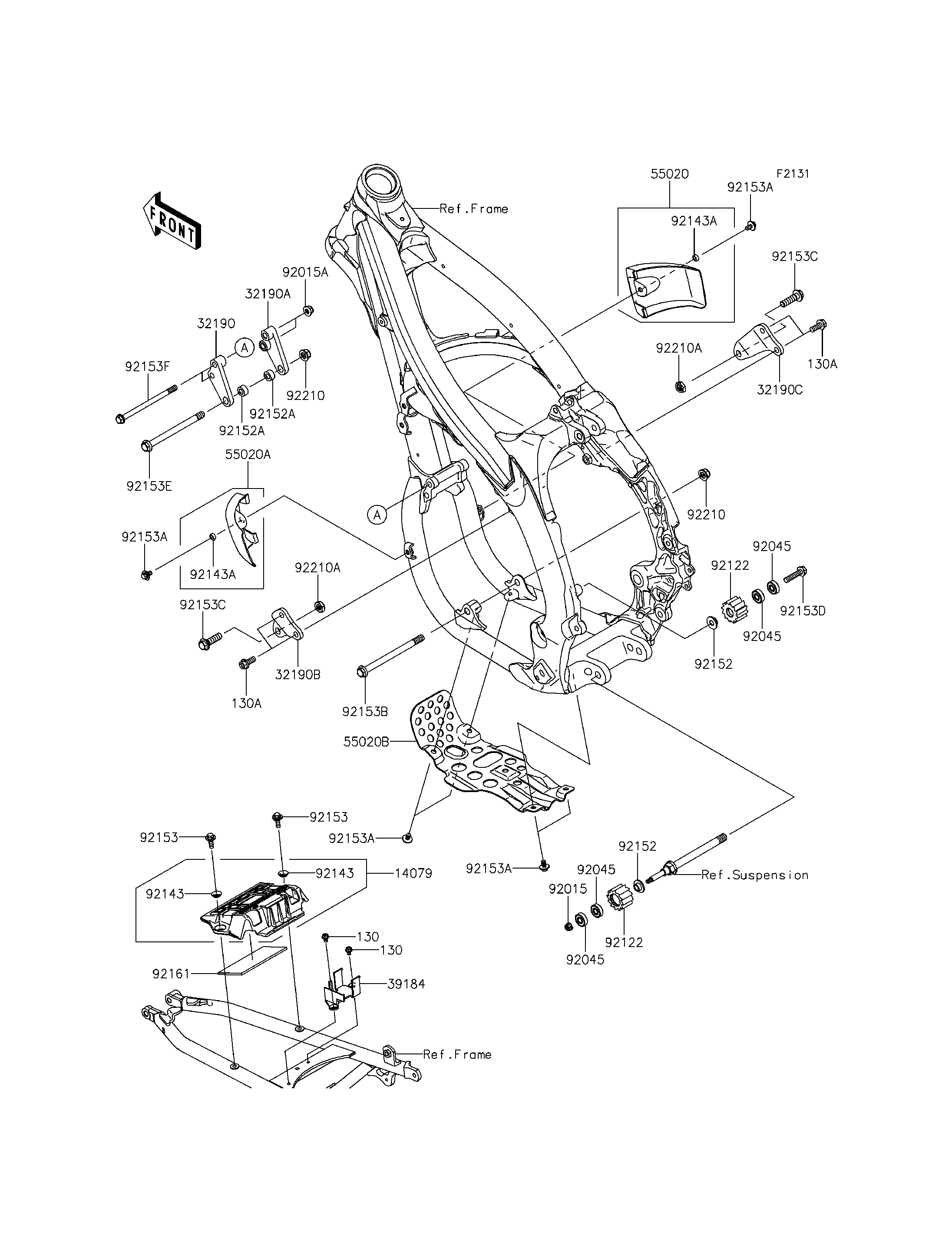

2013 KLX450R (Australian) - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
14079
32190
32190A
32190B
32190C
39184
55020
55020A
55020B
92015
92015A
92045
92045
92045
92045
92122
92122
92143
92143
92143A
92143A
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153C
92153C
92153D
92153E
92153F
92161
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X10 130 130BA0510 2
BOLT-FLANGED,8X18 130A 130CA0818 4
HOLDER-ASSY,BATTERY 14079 14079-0026 1
BRACKET-ENGINE,FR 32190 32190-0330 1
BRACKET-ENGINE,FR 32190A 32190-0331 1
BRACKET-ENGINE,UPP,LH 32190B 32190-0351 1
BRACKET-ENGINE,UPP,RH 32190C 32190-0352 1
BRACKET-ASSY,SWITCH&RELAY 39184 39184-0008 1
GUARD,ENGINE,RH,EBONY 55020 55020-0179-6C 1
GUARD,ENGINE,LH,EBONY 55020A 55020-0313-6C 1
GUARD,SKID 55020B 55020-0369 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 2
BEARING-BALL,608LLU/2A 92045 92045-0060 4
ROLLER,CHAIN GUIDE 92122 92122-0016 2
COLLAR 92143 92143-1196 2
COLLAR 92143A 92143-1307 2
COLLAR 92152 92152-0459 2
COLLAR,10.2X20X10 92152A 92152-0595 2
BOLT,6X20 92153 92153-0502 2
BOLT,6X12 92153A 92153-0503 6
BOLT,FLANGED,10X137 92153B 92153-0704 1
BOLT,FLANGED,10X35 92153C 92153-0802 2
BOLT,FLANGED,8X35 92153D 92153-1652 1
BOLT,FLANGED,10X128 92153E 92153-1869 1
BOLT,FLANGED,8X126 92153F 92153-1870 2
DAMPER 92161 92161-0456 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
NUT,LOCK,10MM 92210A 92210-1184 2
