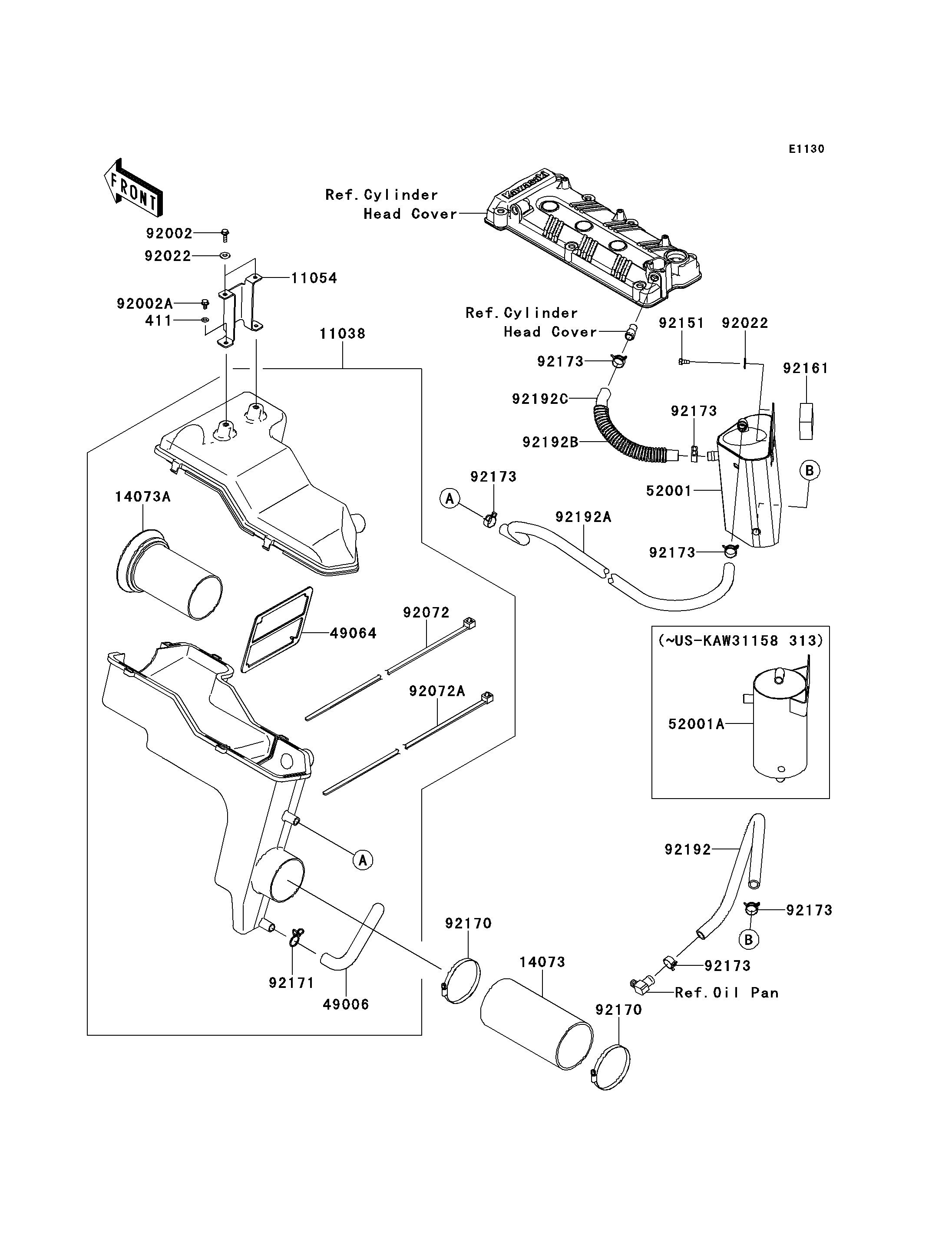

2013 JET SKI® ULTRA® 300X - Intake Silencer

DOWNLOAD PDF
SELECT A NEW PART
411
11038
11054
14073
14073A
49006
49064
52001
52001A
92002
92002A
92022
92022
92072
92072A
92151
92161
92170
92170
92171
92173
92173
92173
92173
92173
92173
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411S0600 2
CASE-ASSY-AIR FILTER 11038 11038-3710 1
BRACKET,AIR BOX 11054 11054-3745 1
DUCT,A/C-COMPRESSOR 14073 14073-3838 1
DUCT,INLET 14073A 14073-3844 1
BOOT 49006 49006-3720 1
FILTER-AIR 49064 49064-3704 1
TANK-OIL,SEPARATOR 52001 52001-0008 1 (US-KAW31159 313 - )
TANK-OIL,SEPARATOR 52001A 52001-3741 1 ( - US-KAW31158 313 )
BOLT,6X20 92002 92002-3755 2
BOLT,6X12 92002A 92002-3763 2
WASHER,6.5X20X1.5 92022 92022-3710 4
BAND,L=914 92072 92072-0708 1
BAND,L=619 92072A 92072-0709 1
BOLT,6X14 92151 92151-3788 2
DAMPER 92161 92161-1595 1 (US-KAW31159 313 - )
CLAMP 92170 92170-3760 2
CLAMP,BOOT 92171 92171-3711 1
CLAMP 92173 92173-1039 6
TUBE,OIL TANK-OIL PAN 92192 92192-1067 1
TUBE,OIL TANK-A/C 92192A 92192-3769 1
TUBE,CORRUGATED,L=160 92192B 92192-3832 1
TUBE,HEAD-OIL TANK 92192C 92192-3854 1
