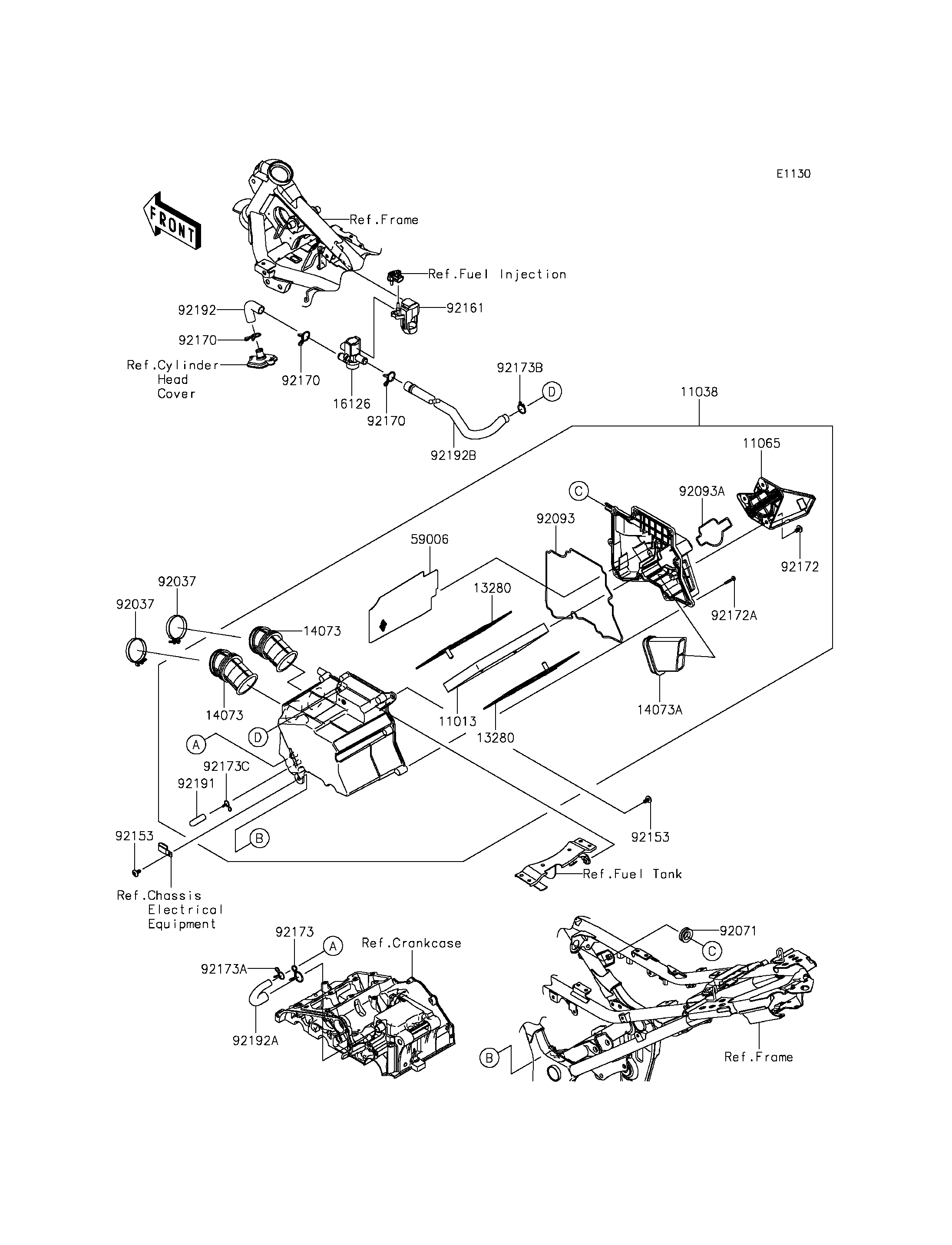

2015 NINJA® 300 ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11013
11038
11065
13280
13280
14073
14073
14073A
16126
59006
92037
92037
92071
92093
92093A
92153
92153
92161
92170
92170
92170
92172
92172A
92173
92173A
92173B
92173C
92191
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ELEMENT-AIR FILTER 11013 11013-0020 1
CASE-ASSY-AIR FILTER 11038 11038-0035 1
CAP 11065 11065-0749 1
HOLDER,ELEMENT 13280 13280-0226 2
DUCT,THROTTLE BODY 14073 14073-0733 2
DUCT,INTAKE 14073A 14073-0762 1
VALVE,AIR CUT 16126 16126-0039 1
ARRESTER-FLAME 59006 59006-0014 1
CLAMP,55MM 92037 92037-1486 2
GROMMET 92071 92071-0709 1
SEAL,CASE-AIR FILTER 92093 92093-0078 1
SEAL,CAP 92093A 92093-0144 1
BOLT,SOCKET,6X12 92153 92153-1948 2
DAMPER,ACV 92161 92161-1424 1
CLAMP 92170 92170-1017 3
SCREW,6X10 92172 92172-0005 3
SCREW,TAPPING,5X25 92172A 92172-0296 9
CLAMP,20MM 92173 92173-0190 1
CLAMP,14MM 92173A 92173-0192 1
CLAMP,18MM 92173B 92173-0193 1
CLAMP,11.6MM 92173C 92173-0198 1
TUBE,8X12X40 92191 92191-1795 1
TUBE,ACV-HEAD 92192 92192-0902 1
TUBE,BREATHER 92192A 92192-1097 1
TUBE,ACV-A/C 92192B 92192-1231 1
